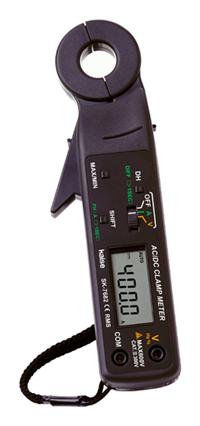

SK-7682钳形表
SK-7682钳形表产品概述
SK-7682是一款日本凯世KAISE品牌推出的高精度多功能钳形表，专为汽车点检和工业电气测量设计。该产品采用交流/直流两用技术，可测量40A至400A范围的电流以及4V至600V的电压，具备频率、占空比、峰值测量等实用功能。其圆形钳头设计最大可测量直径Φ19mm的导体，配合3次/秒的采样速率和4050字节的大屏显示，确保数据读取清晰高效。机身尺寸为196×59×30mm，重量仅180g，便携性强。内置自动关机和数据保持功能，配备鳄鱼夹和表笔附件，适合狭窄空间作业。257
SK-7682 Clamp Meter Product Introduction
The SK-7682 is a high-precision multifunctional clamp meter developed by Japanese brand KAISE, designed for automotive diagnostics and industrial electrical measurements. Featuring true RMS AC/DC dual-mode measurement, it covers current ranges up to 400A and voltage ranges from 4V to 600V, with additional capabilities including frequency, duty cycle, and peak value detection. The ergonomic circular jaw accommodates conductors up to Φ19mm diameter, while the 4050-count LCD display with backlight ensures visibility in low-light conditions. Weighing only 180g with compact dimensions (196×59×30mm), it integrates practical functions like auto power-off and data hold. The package includes test leads and alligator clips for versatile applications. 61214
核心功能特点
该产品采用平衡线圈技术减少导体位置对测量的干扰，提升数据准确性。支持最大值/最小值记录、偏差测定和超程提示功能，操作界面简洁直观。直流电流测量精度达±1.5%rdg±3dgt（40A量程），交流电压测量精度为±1.5%rdg±5dgt。独特的三防设计增强耐用性，适用于复杂工况环境。特别优化汽车电路检测场景，可快速识别电动汽车和传统燃油车的电路异常。通过非接触式测量大幅提升作业安全性，避免电路中断影响设备运行。1910
Key Technical Advantages
Balanced coil technology minimizes positional interference for stable readings across different conductor placements. The device achieves ±1.5%rdg±3dgt accuracy in 40A DC current measurement and ±1.5%rdg±5dgt in AC voltage detection. Its ruggedized housing provides reliable performance in harsh environments. The auto-ranging function simplifies operation, and features like relative value measurement and inrush current detection make it particularly effective for troubleshooting automotive electrical systems. The non-contact design eliminates circuit interruption risks during live wire measurements. 3811
典型应用场景
适用于汽车维修车间快速诊断起动电流、充电系统异常；工业场景中电动机、变压器等设备的日常维护；建筑电力系统漏电检测。对电动汽车高压电池组和充电桩的电流波动测量表现出色，兼容新能源车型检测需求。教育领域可用于电工实训教学，其安全设计和直观界面适合初学者掌握电气测量基础技能。41315
Typical Applications
Ideal for automotive workshops to diagnose starter motor currents and charging system faults, industrial motor/transformer maintenance, and building leakage detection. Demonstrates exceptional performance in measuring current fluctuations of EV battery packs and charging piles, meeting new energy vehicle service requirements. The intuitive interface also makes it suitable for vocational training in electrical measurement fundamentals. 161719
欢迎光临上海双旭电子有限公司 接近开关 漆膜测厚仪 照度计 超声波测厚仪
简单介绍
SK-7682，钳形表 SK-7682钳形表-SK-7682钳型表-SK-7682交直流钳表-日本凯世钳型表-日本凯世交直流钳表 产品说明： 交流/直流两用、高精度、多功能，适合汽车点检
SK-7682，钳形表
的详细介绍
|
