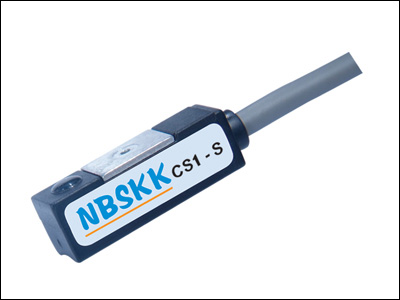

磁性开关CS1-S 价格
产品概述
磁性开关CS1-S是一款专为工业自动化设计的高性能感应元件，采用非接触式磁感应原理，适用于气缸位置检测及机械设备行程控制。其结构紧凑，安装便捷，能够可靠地输出开关信号，广泛应用于注塑机、包装机械、数控机床等自动化场景。该产品通过磁簧管技术实现信号切换，具有响应快速、使用寿命长的特点，可适配多种品牌的标准气缸及迷你气缸。16
技术特点
CS1-S磁性开关采用高亮度LED指示灯设计，便于现场状态观察，底部圆弧表贴结构增强了抗震性能。其工作电压范围为5-240V DC/AC，最大开关电流100mA，负载容量10W，能适应油污、粉尘等恶劣工业环境。产品支持二线式（磁簧管型）配置，导线采用耐油PVC材质护套，接头部位采用防松脱设计，确保信号传输稳定。工作温度覆盖-10℃至60℃，防护性能优异，适合长期连续运行。1215
应用场景
该产品特别适用于空间受限的迷你气缸（如TGA/TGL/TGM系列），可通过检测活塞内置磁环的位置变化，实时控制物料分拣、机械手定位或流水线节拍。其模块化设计支持快速更换，有效减少设备维护停机时间。典型应用包括自动化生产线、气动控制系统及物流分拣设备等。1322
产品优势
CS1-S磁性开关以高性价比和稳定性能著称，无触点设计彻底避免了传统机械开关的电弧损耗问题。产品提供灵活的安装方式，无需额外支架即可嵌入标准气缸沟槽，显著提升施工效率。其磁滞区间小于2mm，动作精准度高，适合对位置检测要求严格的场景。2529
Product Overview
The CS1-S Magnetic Switch is a high-performance sensing component designed for industrial automation, utilizing non-contact magnetic induction technology for cylinder position detection and mechanical equipment stroke control. With a compact structure and easy installation, it reliably outputs switch signals and is widely used in injection molding machines, packaging equipment, CNC machines, and other automated systems. The product employs reed switch technology for signal switching, offering rapid response and extended service life, compatible with various standard and mini cylinders.16
Technical Features
The CS1-S features a high-brightness LED indicator for real-time status monitoring and an arc-bottom surface-mounted design for enhanced vibration resistance. It operates within a voltage range of 5-240V DC/AC, with a maximum switching current of 100mA and a load capacity of 10W, suitable for harsh environments like oil or dust exposure. The two-wire (reed switch) configuration uses oil-resistant PVC-sheathed cables and anti-loosening connectors to ensure stable signal transmission. Its operating temperature ranges from -10°C to 60°C, with robust protection for long-term continuous use.1215
Applications
Ideal for space-constrained mini cylinders (e.g., TGA/TGL/TGM series), this switch detects piston-embedded magnet position changes to control material sorting, robotic arm positioning, or conveyor timing. Its modular design allows quick replacement, minimizing downtime. Typical applications include automated production lines, pneumatic control systems, and logistics sorting equipment.1322
Advantages
The CS1-S stands out for its cost-effectiveness and reliability, with a contactless design eliminating arc wear common in mechanical switches. It supports tool-free installation via standard cylinder grooves, improving operational efficiency. A narrow hysteresis range (<2mm) ensures precise positioning, ideal for high-accuracy scenarios.2529
磁性开关
AL-44R，AL-43R，AL-42R，AL-41R，AL-17R，AL-13R，AL-11R，AL-09R，D-C80，D-A80，CKD-T2H，LJC2-3/60，LJC1-3/24，QCK2422，CK-3，NJK-5002P， CST-220，CS1-G，CS1-S，CS1-J，CS1-U，CS1-F，D-A73，D-C73，D-Z73，D-A54，D-B54，HX-20R，FD-50R，ZE-135，ZC-230，KT-50R，KT-33R，KT-32R，KT-21R，KT-21RY，KT-20R，KT-16R，KT-15R，KT-11R，KT-07R，KT-06R，KT-03R，KL-3045，P1-1A151，4621A，110E681，YIDA-50，YIDA-40，YIDA-35，YIDA-32，YIDA-31，YIDA-21，YIDA-20，YIDA-16，YIDA-15，YIDA-12，YIDA-11，YIDA-09，YIDA-08，YIDA-07，YIDA-06，YIDA-03，YSD-T3，YS-72，YS-32，YS-07，YS-06，YS-03，YGMB-1A，YC-16，TAIYO-YR101, TCS1-D, TCS1-E, TCS1-F, SR-401,SL-26，MG-12，MR-3019，LN-09D，LN-01D，LN-15T，LS-BD2，LY-D73，LY-67A，LY-63，LY-43-1，LY-43，LY-9D-1，LY-9D，LYD-72R，LYD-50R，LYD-35R，LYD-32R，LYD-31R，LYD-21R，LYD-20R，LYD-16R，LYD-15R，LYD-12R，LYD-11R，LYD-07R，LYD-06R，HWK-23，GA-3，GA-2，GLS-KBI，GLS-KAI，GMK-2A，GMD-2A，GMF-2A，GME-2A，GMT-2A，GMC-2A，GMB-2A，GMA-2A，DX-21R，DX-20R，DX-03R，DSM-2C，D-R731L，D-SM2C，D-A93V，D-A93L，D-A93，D-93A，D-Z80，D-Z73L，D-C73L，D-A73L，D-Y69B，D-Y69A，D-Y59A，D-K59，D-B50，D-H7B，C7Y-28G，C7-Z20G，CK-J2R，CKD-RO，CK-2422，CS-100，CS-80B，CS-50B，CS-32B，CS-30E，CS-9D， AL-72R，AL-30R，AL-21R，AL-20R，AL-15R，AL-07R，AL-03R，AL-02R，AL-01R，AN-72R，AN-50R，AN-36R，AN-32R，AN-31R
AN-22R，AN-21R，AN-20R，AN-11R，AN-10R，AN-07R，AN-06R，AN-03R，AN-01R，
特点 ：
有PP、PVDF材质可适用于强酸碱场所；SUS 304/316金属材质适用于高温高压桶槽。
接线盒规格齐全，有塑料、铝合金、不锈钢防爆型，防护等级IP-65以上。
接点容量50W/250VAC SPST或 30W/200VDC SPDT。
接续法兰有JIS、DIN、ANSI规格；牙口有 NPT、PF、BSP等规格。
有ABS、GL、CR国际船籍认证及Ex防爆认证。
可做多点控制、安装容易、节省成本。
|
