磁性开关YIDA-20 供应
磁性开关YIDA-20产品概述

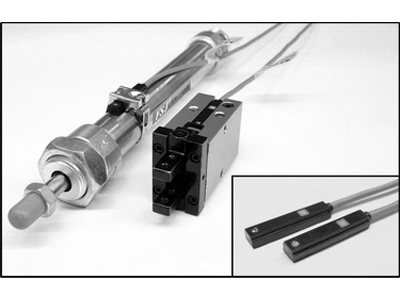

磁性开关YIDA-20是一款用于工业自动化控制的非接触式传感装置，适用于气缸活塞位置检测。该产品采用磁感应原理，通过感知磁场变化实现开关信号的输出，具有结构紧凑、安装便捷的特点。YIDA-20分为有接点和无接点两种类型，工作电压范围覆盖5-240V DC/AC，可适配不同电气环境需求，指示灯设计提供红色和绿色两种选择，便于现场状态观察。该产品能够替代同类磁感应开关，广泛应用于机械制造、气动元件等领域。71216
功能特性与技术参数
YIDA-20磁性开关的核心部件采用干簧管技术，当磁性物质接近密封玻璃管时，内部簧片在磁场作用下闭合触点导通电路。产品最大开关电流为100-200mA，响应速度快，重复定位精度高，适合高速运动机构的检测。其外壳采用工程塑料或金属材质，具备防水防尘性能，可在粉尘较多的工业环境中稳定工作。该型号兼容多种气缸安装方式，通过夹持式支架可实现快速调试，无需额外配置机械限位装置。31327
Magnetic Switch YIDA-20 Product Description
The YIDA-20 is a non-contact magnetic proximity switch designed for piston position detection in pneumatic cylinders. Utilizing reed switch technology encapsulated in durable housing, this device operates reliably within 5-240V DC/AC voltage range. Its compact design features visual indicators with dual-color LED (red/green) for immediate status monitoring. The switch activates when ferrous materials approach its sensing zone, making it suitable for automation systems requiring precise position feedback without mechanical contact.720
Technical Features and Applications
This magnetic switch employs hermetically sealed reed contacts that respond to magnetic fields, ensuring long service life exceeding 500,000 operations. With IP-rated protection, it performs consistently in challenging environments containing dust or moisture. The YIDA-20 s universal voltage compatibility and 2-wire/3-wire output options facilitate integration with PLCs and control circuits. Typical applications include packaging machinery, material handling equipment, and production line automation where reliable position sensing is required. Its modular design allows tool-free installation on standard cylinder profiles.152627
安装与使用说明
安装YIDA-20磁性开关时需确保磁铁与感应面保持平行，推荐间隙为1-3mm以获得最佳灵敏度。布线时请注意极性要求，直流电源需将棕色导线连接正极。产品支持水平或垂直安装方向，但应避开强磁场干扰源。定期检查开关固定螺栓的紧固状态，避免因振动导致位置偏移。该产品适用于-20℃至+80℃环境温度范围，特殊工况下可选用耐高温版本。121327
Installation and Maintenance
For optimal performance, align the switch within specified sensing distance from the actuating magnet (typically 10mm max). The included mounting bracket enables 360° rotational adjustment for flexible positioning. When connecting to DC systems, observe wire color coding: brown to positive terminal, blue to negative. Avoid exposing the unit to direct sunlight or corrosive substances. Periodic functional checks are recommended to maintain operational reliability in continuous duty cycles. The switch requires no lubrication or contact cleaning due to its non-mechanical operation principle.3726
磁性开关
AL-44R，AL-43R，AL-42R，AL-41R，AL-17R，AL-13R，AL-11R，AL-09R，D-C80，D-A80，CKD-T2H，LJC2-3/60，LJC1-3/24，QCK2422，CK-3，NJK-5002P， CST-220，CS1-G，CS1-S，CS1-J，CS1-U，CS1-F，D-A73，D-C73，D-Z73，D-A54，D-B54，HX-20R，FD-50R，ZE-135，ZC-230，KT-50R，KT-33R，KT-32R，KT-21R，KT-21RY，KT-20R，KT-16R，KT-15R，KT-11R，KT-07R，KT-06R，KT-03R，KL-3045，P1-1A151，4621A，110E681，YIDA-50，YIDA-40，YIDA-35，YIDA-32，YIDA-31，YIDA-21，YIDA-20，YIDA-16，YIDA-15，YIDA-12，YIDA-11，YIDA-09，YIDA-08，YIDA-07，YIDA-06，YIDA-03，YSD-T3，YS-72，YS-32，YS-07，YS-06，YS-03，YGMB-1A，YC-16，TAIYO-YR101, TCS1-D, TCS1-E, TCS1-F, SR-401,SL-26，MG-12，MR-3019，LN-09D，LN-01D，LN-15T，LS-BD2，LY-D73，LY-67A，LY-63，LY-43-1，LY-43，LY-9D-1，LY-9D，LYD-72R，LYD-50R，LYD-35R，LYD-32R，LYD-31R，LYD-21R，LYD-20R，LYD-16R，LYD-15R，LYD-12R，LYD-11R，LYD-07R，LYD-06R，HWK-23，GA-3，GA-2，GLS-KBI，GLS-KAI，GMK-2A，GMD-2A，GMF-2A，GME-2A，GMT-2A，GMC-2A，GMB-2A，GMA-2A，DX-21R，DX-20R，DX-03R，DSM-2C，D-R731L，D-SM2C，D-A93V，D-A93L，D-A93，D-93A，D-Z80，D-Z73L，D-C73L，D-A73L，D-Y69B，D-Y69A，D-Y59A，D-K59，D-B50，D-H7B，C7Y-28G，C7-Z20G，CK-J2R，CKD-RO，CK-2422，CS-100，CS-80B，CS-50B，CS-32B，CS-30E，CS-9D， AL-72R，AL-30R，AL-21R，AL-20R，AL-15R，AL-07R，AL-03R，AL-02R，AL-01R，AN-72R，AN-50R，AN-36R，AN-32R，AN-31R
AN-22R，AN-21R，AN-20R，AN-11R，AN-10R，AN-07R，AN-06R，AN-03R，AN-01R，
特点 ：
有PP、PVDF材质可适用于强酸碱场所；SUS 304/316金属材质适用于高温高压桶槽。
接线盒规格齐全，有塑料、铝合金、不锈钢防爆型，防护等级IP-65以上。
接点容量50W/250VAC SPST或 30W/200VDC SPDT。
接续法兰有JIS、DIN、ANSI规格；牙口有 NPT、PF、BSP等规格。
有ABS、GL、CR国际船籍认证及Ex防爆认证。
可做多点控制、安装容易、节省成本。
|
