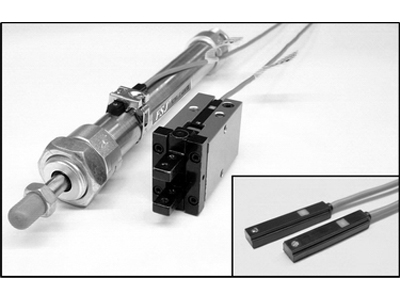

磁性开关TCS1-D 供应
TCS1-D磁性开关产品概述（中文）
TCS1-D磁性开关是一款专为工业自动化控制设计的高性能非接触式位置检测装置，采用磁感应原理实现精准信号触发。该产品通过内置高灵敏度磁敏元件感知磁场变化，可在无机械接触条件下稳定输出电信号，有效避免传统机械开关的磨损问题。其核心组件采用优质干簧管技术，玻璃封装结构确保长期使用的可靠性，惰性气体填充进一步提升了环境适应性。产品支持5-240V宽电压输入范围，最大负载电流100mA，兼容直流和交流供电模式，满足多样化电气配置需求。紧凑型设计（典型尺寸18×34×10mm）使其能灵活安装在空间受限的场合，特别适用于气缸行程检测、阀门状态反馈及移动部件定位等场景。外壳采用工程塑料与耐腐蚀材料复合工艺，具备-25℃至+85℃的宽温工作能力，防护等级达IP65，可抵御粉尘、油污及潮湿环境影响。提供导线直连与接插件两种接线方式，支持NPN/PNP输出配置，能与主流PLC系统无缝对接。典型应用包括包装机械、注塑设备、汽车生产线等领域的自动化控制场景，为用户提供精准可靠的位移检测解决方案。1924
TCS1-D Magnetic Switch Product Overview (English)
The TCS1-D magnetic switch is a high-performance non-contact position sensing device engineered for industrial automation control systems. Utilizing advanced magnetic induction technology, it achieves precise signal triggering through a hermetically sealed reed switch mechanism filled with inert gas, ensuring long-term operational stability without physical contact. This device features a broad voltage compatibility range of 5-240V AC/DC with maximum load current of 100mA, accommodating diverse electrical configurations. Its compact housing (18×34×10mm typical) incorporates composite engineering plastics with corrosion-resistant properties, maintaining reliable performance across -25℃ to +85℃ environments while achieving IP65 protection against dust, moisture and oil contamination. The switch offers dual output configurations (NPN/PNP) with flexible wiring options including direct cable termination or connector interface, ensuring seamless integration with PLC control systems. Precision-engineered magnetic sensitivity enables consistent detection within 8mm range, making it ideal for pneumatic cylinder stroke monitoring, valve position feedback and moving component alignment in automated production lines. Typical implementations include packaging machinery, injection molding equipment and automotive assembly systems where reliable position detection enhances operational efficiency. The product s robust construction and maintenance-free design significantly reduce downtime in continuous industrial applications.71723
技术特性补充说明（中文）
TCS1-D系列采用优化的磁路设计，确保在强磁场干扰环境下仍能保持稳定检测性能。特殊处理的触点材料使电气寿命达50万次以上，瞬态响应时间小于2.5ms，适用于高速运动部件的实时监测。产品提供多向指示灯显示配置，便于现场状态诊断。安装方式包含轨道卡扣与螺钉固定两种选择，适配不同气缸槽型。磁体适配方面，可识别各类橡胶磁、永磁铁氧体及钕铁硼磁钢产生的磁场信号。信号输出采用双色LED可视化设计，绿色表示电源正常，红色指示触发状态，简化了设备调试流程。电气隔离设计有效防止浪涌电压冲击，内置过载保护模块增强系统安全性。导线上印有极性标识，防止安装过程中的接线错误。41321
Additional Technical Features (English)
The TCS1-D series incorporates optimized magnetic circuit design that maintains stable detection capability even in environments with strong electromagnetic interference. Specially treated contact materials deliver over 500,000 switching cycles with rapid transient response under 2.5ms, suitable for high-speed motion monitoring. Multi-directional LED indicators provide instant status diagnostics - green for power-on and red for activation state. Installation flexibility includes both rail-mounted and screw-fixed options compatible with various cylinder groove types. The device demonstrates versatile magnetic compatibility, accurately detecting fields generated by rubber magnets, ferrite permanent magnets and neodymium magnets. Dual-color visual signaling simplifies commissioning, while electrical isolation and built-in overload protection enhance system safety. Polarized wiring with clear cable markings prevents connection errors during installation. These features combine to create a durable, user-friendly solution for industrial positioning applications requiring consistent performance under challenging conditions.111419
磁性开关
AL-44R，AL-43R，AL-42R，AL-41R，AL-17R，AL-13R，AL-11R，AL-09R，D-C80，D-A80，CKD-T2H，LJC2-3/60，LJC1-3/24，QCK2422，CK-3，NJK-5002P， CST-220，CS1-G，CS1-S，CS1-J，CS1-U，CS1-F，D-A73，D-C73，D-Z73，D-A54，D-B54，HX-20R，FD-50R，ZE-135，ZC-230，KT-50R，KT-33R，KT-32R，KT-21R，KT-21RY，KT-20R，KT-16R，KT-15R，KT-11R，KT-07R，KT-06R，KT-03R，KL-3045，P1-1A151，4621A，110E681，YIDA-50，YIDA-40，YIDA-35，YIDA-32，YIDA-31，YIDA-21，YIDA-20，YIDA-16，YIDA-15，YIDA-12，YIDA-11，YIDA-09，YIDA-08，YIDA-07，YIDA-06，YIDA-03，YSD-T3，YS-72，YS-32，YS-07，YS-06，YS-03，YGMB-1A，YC-16，TAIYO-YR101, TCS1-D, TCS1-E, TCS1-F, SR-401,SL-26，MG-12，MR-3019，LN-09D，LN-01D，LN-15T，LS-BD2，LY-D73，LY-67A，LY-63，LY-43-1，LY-43，LY-9D-1，LY-9D，LYD-72R，LYD-50R，LYD-35R，LYD-32R，LYD-31R，LYD-21R，LYD-20R，LYD-16R，LYD-15R，LYD-12R，LYD-11R，LYD-07R，LYD-06R，HWK-23，GA-3，GA-2，GLS-KBI，GLS-KAI，GMK-2A，GMD-2A，GMF-2A，GME-2A，GMT-2A，GMC-2A，GMB-2A，GMA-2A，DX-21R，DX-20R，DX-03R，DSM-2C，D-R731L，D-SM2C，D-A93V，D-A93L，D-A93，D-93A，D-Z80，D-Z73L，D-C73L，D-A73L，D-Y69B，D-Y69A，D-Y59A，D-K59，D-B50，D-H7B，C7Y-28G，C7-Z20G，CK-J2R，CKD-RO，CK-2422，CS-100，CS-80B，CS-50B，CS-32B，CS-30E，CS-9D， AL-72R，AL-30R，AL-21R，AL-20R，AL-15R，AL-07R，AL-03R，AL-02R，AL-01R，AN-72R，AN-50R，AN-36R，AN-32R，AN-31R
AN-22R，AN-21R，AN-20R，AN-11R，AN-10R，AN-07R，AN-06R，AN-03R，AN-01R，
特点 ：
有PP、PVDF材质可适用于强酸碱场所；SUS 304/316金属材质适用于高温高压桶槽。
接线盒规格齐全，有塑料、铝合金、不锈钢防爆型，防护等级IP-65以上。
接点容量50W/250VAC SPST或 30W/200VDC SPDT。
接续法兰有JIS、DIN、ANSI规格；牙口有 NPT、PF、BSP等规格。
有ABS、GL、CR国际船籍认证及Ex防爆认证。
可做多点控制、安装容易、节省成本。
|
