磁性开关DX-20R 厂家
产品概述

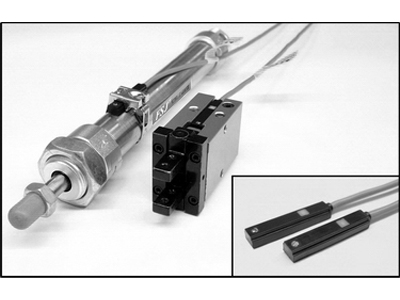

磁性开关DX-20R是一款采用磁感应原理设计的工业自动化控制元件，主要用于检测气缸活塞位置或机械运动状态。该产品通过内置磁簧管结构实现对磁场变化的灵敏响应，当磁性物体接近时自动触发开关动作，具有反应迅速、稳定性高等特点。其紧凑型设计适用于空间受限的安装环境，外壳采用耐用的工程塑料材质，能够抵抗工业环境中常见的酸碱腐蚀和机械冲击。12
技术特点
DX-20R采用高质量PVDF材质外壳，具备优异的耐化学腐蚀性能，可适应强酸强碱等恶劣工况。产品提供多种接线盒配置选项，包括铝合金、塑料和不锈钢等材质，防护等级达到IP65以上。其接点容量为30W/20VDC或50W/250VAC，支持多点控制安装，有效节省布线成本。独特的浮球式设计允许在密闭管道内设置多点磁控位，通过磁铁与磁簧开关的互动实现精准的位置检测。产品工作距离约10mm，响应速度满足大多数工业自动化场景需求。316
应用领域
This magnetic switch is widely applied in pneumatic systems for detecting cylinder piston positions. When the magnetic ring on the cylinder approaches, the reed switch inside DX-20R will be activated to generate electrical signals for controlling solenoid valves. Beyond industrial automation, it also serves in security doors, printers, fax machines and other electronic devices requiring position detection. The product s versatile design allows integration with various cylinder types including rodless cylinders and compact pneumatic actuators. Its reliable performance makes it suitable for long-term use in production lines and equipment monitoring systems. 526
产品优势
The DX-20R series distinguishes itself with easy installation and maintenance-free operation. Its modular structure enables quick replacement without dismantling entire systems. The bright LED indicator provides clear visual status confirmation even in low-light environments. Compared to mechanical limit switches, this contactless solution eliminates physical wear, ensuring over 1 million operation cycles. The product supports both DC and AC power configurations, with color-coded wiring (brown/blue for polarity) simplifying installation procedures. Optional accessories include mounting brackets and protective sleeves for specialized applications. 2227
注意事项
Proper installation requires avoiding strong magnetic interference sources and maintaining minimum 40mm spacing between parallel cylinders. For DC applications, correct polarity connection (brown wire to positive) is essential for indicator function. The switch must always be connected in series with load to prevent damage. When used with inductive loads like relays, parallel protection diodes are recommended to prolong service life. Environmental considerations include avoiding direct exposure to cutting fluids or excessive metal dust accumulation that may affect magnetic sensitivity. 1316
磁性开关
AL-44R，AL-43R，AL-42R，AL-41R，AL-17R，AL-13R，AL-11R，AL-09R，D-C80，D-A80，CKD-T2H，LJC2-3/60，LJC1-3/24，QCK2422，CK-3，NJK-5002P， CST-220，CS1-G，CS1-S，CS1-J，CS1-U，CS1-F，D-A73，D-C73，D-Z73，D-A54，D-B54，HX-20R，FD-50R，ZE-135，ZC-230，KT-50R，KT-33R，KT-32R，KT-21R，KT-21RY，KT-20R，KT-16R，KT-15R，KT-11R，KT-07R，KT-06R，KT-03R，KL-3045，P1-1A151，4621A，110E681，YIDA-50，YIDA-40，YIDA-35，YIDA-32，YIDA-31，YIDA-21，YIDA-20，YIDA-16，YIDA-15，YIDA-12，YIDA-11，YIDA-09，YIDA-08，YIDA-07，YIDA-06，YIDA-03，YSD-T3，YS-72，YS-32，YS-07，YS-06，YS-03，YGMB-1A，YC-16，TAIYO-YR101, TCS1-D, TCS1-E, TCS1-F, SR-401,SL-26，MG-12，MR-3019，LN-09D，LN-01D，LN-15T，LS-BD2，LY-D73，LY-67A，LY-63，LY-43-1，LY-43，LY-9D-1，LY-9D，LYD-72R，LYD-50R，LYD-35R，LYD-32R，LYD-31R，LYD-21R，LYD-20R，LYD-16R，LYD-15R，LYD-12R，LYD-11R，LYD-07R，LYD-06R，HWK-23，GA-3，GA-2，GLS-KBI，GLS-KAI，GMK-2A，GMD-2A，GMF-2A，GME-2A，GMT-2A，GMC-2A，GMB-2A，GMA-2A，DX-21R，DX-20R，DX-03R，DSM-2C，D-R731L，D-SM2C，D-A93V，D-A93L，D-A93，D-93A，D-Z80，D-Z73L，D-C73L，D-A73L，D-Y69B，D-Y69A，D-Y59A，D-K59，D-B50，D-H7B，C7Y-28G，C7-Z20G，CK-J2R，CKD-RO，CK-2422，CS-100，CS-80B，CS-50B，CS-32B，CS-30E，CS-9D， AL-72R，AL-30R，AL-21R，AL-20R，AL-15R，AL-07R，AL-03R，AL-02R，AL-01R，AN-72R，AN-50R，AN-36R，AN-32R，AN-31R
AN-22R，AN-21R，AN-20R，AN-11R，AN-10R，AN-07R，AN-06R，AN-03R，AN-01R，
特点 ：
有PP、PVDF材质可适用于强酸碱场所；SUS 304/316金属材质适用于高温高压桶槽。
接线盒规格齐全，有塑料、铝合金、不锈钢防爆型，防护等级IP-65以上。
接点容量50W/250VAC SPST或 30W/200VDC SPDT。
接续法兰有JIS、DIN、ANSI规格；牙口有 NPT、PF、BSP等规格。
有ABS、GL、CR国际船籍认证及Ex防爆认证。
可做多点控制、安装容易、节省成本。
|
