产品中文介绍：

WZP-212AB型薄膜铂热电阻是一款采用先进工艺制造的专业温度传感元件，适用于工业自动化、暖通空调、食品医药等领域的精准温度检测需求。该产品通过真空镀膜技术将高纯度铂材料均匀沉积于陶瓷基板表面，结合激光微调工艺实现电阻值精密修正，确保温度信号输出的高线性度与长期稳定性。

产品采用304不锈钢外壳设计，表面抛光处理兼具防护性与美观度。内部填充特殊配方的绝缘导热材料，有效提升抗震抗冲击性能。传感器探杆可选多种规格尺寸（直径3mm至8mm），支持直管、弯管及法兰安装方式适配不同工况场景。根据客户需求可定制不同引线长度（标准配置为2米耐高温氟塑线缆），并提供PT100/Pt1000两种电阻类型选择。

在技术特性方面，该产品测量范围覆盖-50℃至+400℃，在0℃时基础精度可达±0.15℃，全量程范围内温度响应时间小于0.8秒。独特的表面钝化工艺使元件具备优异的抗介质腐蚀能力，可长期应用于潮湿、油污等复杂工业环境。优化的热传导结构设计有效降低自热效应，确保连续工作时测量数据的真实可靠性。

产品英文介绍：

The WZP-212AB thin-film platinum RTD is a precision temperature sensing device manufactured with advanced deposition technology, designed to deliver reliable temperature measurement in industrial automation, HVAC systems, and food/pharmaceutical processing applications. Its core element features a vacuum-sputtered platinum layer on high-grade ceramic substrate, precisely trimmed by laser calibration to achieve exceptional linearity and long-term stability.

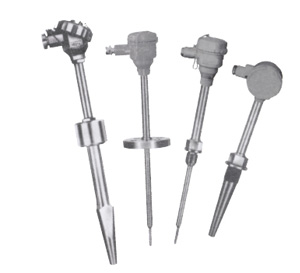

Encased in polished 304 stainless steel housing with IP67 protection rating, this sensor demonstrates remarkable mechanical durability and corrosion resistance. The modular design offers flexible installation configurations, including straight probe (3mm-8mm diameter options), 90° angled probe, and flange-mounted variants. Standard 2-meter high-temperature fluoropolymer cables are available with optional Pt100/Pt1000 output, accommodating diverse system integration requirements.

With an extended operational range from -50℃ to +400℃, the device maintains ±0.15℃ basic accuracy at 0℃ reference point. Rapid thermal response (T0.9<0.8s) is achieved through optimized thermal coupling structure, while the proprietary passivation layer effectively resists chemical corrosion in harsh environments. Low self-heating characteristics (0.02mW/℃ typical) ensure measurement integrity during continuous operation. Customizable immersion lengths and process connections enable seamless adaptation to various industrial applications.
