薄膜铂热电阻WZPK-506U 供应

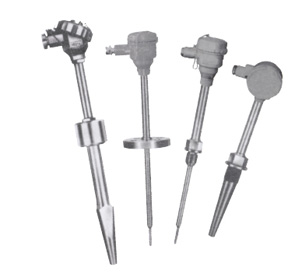

薄膜铂热电阻 WZPK-506U 产品介绍
中文介绍
薄膜铂热电阻 WZPK-506U 是一种高性能的温度传感器，广泛应用于工业温度测量场景。该产品采用一体化密封结构，外壳由不锈钢材质经特殊工艺加工而成，内部封装薄膜铂电阻元件，结合致密氧化镁绝缘材料填充技术，在提升机械强度的同时有效隔绝外界介质渗透。
在核心性能方面，WZPK-506U 具有较宽的工作温度覆盖范围，能够适应多种工业场景的温度检测需求。其电阻值随温度变化的线性关系稳定，配合特定工艺处理的引线系统，可实现温度信号的高效传输。元件结构设计有效降低外界振动对内部敏感部件的影响，在动态工况下仍能保持测量数值的可靠性。热响应时间经过优化，能及时反馈被测介质的温度变化趋势。
WZPK-506U 采用模块化封装设计，安装时可适配多种工业管道的接口规格，支持不同角度的插入安装方式。外壳表面经过防腐蚀处理，在含腐蚀性介质的环境中能保持结构完整性。防护结构设计可满足常规工业环境的防护需求，减少粉尘、潮气对内部元件的影响。
该产品适用于石油化工流程监测、电力设备温控系统、冶金生产设备等工业场景的温度检测，在食品加工、制药等对卫生要求较高的领域也有较好的适用性。使用过程中建议根据被测介质特性选择匹配的插入深度，避免在超过规定机械强度的振动环境中长期使用，定期检查引线连接部位状态可延长设备使用寿命。
英文 Introduction
The WZPK-506U thin-film platinum thermistor is a high-performance temperature sensor widely used in industrial temperature measurement scenarios. This product adopts an integrated sealed structure, with a stainless steel shell processed by special technology, and the internal thin-film platinum thermistor element is encapsulated, combined with dense magnesium oxide insulation material filling technology, which enhances mechanical strength while effectively isolating external media penetration.
In terms of core performance, the WZPK-506U has a wide working temperature range, which can meet the temperature detection needs of various industrial scenarios. Its resistance value has a stable linear relationship with temperature changes, and the specially processed lead system can efficiently transmit temperature signals. The element structure design effectively reduces the impact of external vibration on internal sensitive components, and can still maintain the reliability of measurement values under dynamic working conditions. The thermal response time has been optimized to timely reflect the temperature change trend of the measured medium.
The WZPK-506U adopts a modular packaging design, which can be adapted to various industrial pipeline interface specifications during installation, and supports different angles of insertion installation. The shell surface is treated with anti-corrosion, which can maintain structural integrity in environments with corrosive media. The protective structure design can meet the protection needs of conventional industrial environments and reduce the impact of dust and moisture on internal components.
This product is suitable for temperature detection in industrial scenarios such as petrochemical process monitoring, power equipment temperature control systems, and metallurgical production equipment, and also has good applicability in fields with high hygiene requirements such as food processing and pharmaceuticals. During use, it is recommended to select the matching insertion depth according to the characteristics of the measured medium, avoid long-term use in vibration environments exceeding the specified mechanical strength, and regularly check the lead connection status to extend the service life of the equipment.
薄膜铂热电阻
WZP2-236SB，WZP-1312AB，WZP2-1312AB，WZP-212AB，WZP2-212AB，WZP-3312AB，WZP2-3312AB，WZP-4312AB，WZP2-4312AB，WZP-6312AB，WZPK-103U，WZPK-104U，WZPK-105U，WZPK-106U，WZPK-106U，WZPK-204U，WZPK-205U，WZPK-206U，WZPK-303U，WZPK-304U，WZPK-305U，WZPK-306U，WZPK-403U，WZPK-404U，WZPK-405U，WZPK-406U，WZPK-503U，WZPK-504U，WZPK-505U，WZPK-506U，WZPK-133U，WZPK-134U，WZPK-135U，WZPK-136U，WZPK-233U，WZPK-234U，WZPK-235U，WZPK-236U，WZPK-333U，WZPK-334U，WZPK-335U，WZPK-336U，WZPK-433U，WZPK-434U，WZPK-435U，WZPK-436U，WZPK-533U，WZPK-534U，WZPK-535U，WZPK-536U，WZPK-123UWZPK-124U，
简介
工业用薄膜铂热电阻作为新一代的温度测量和调节传感器，通常用来和显示仪表等配套，以直接测量各种生产过程中-79℃～600℃范围内液体，蒸汽和气体介质及固定表面等温度。
技术参数
热电阻感温元件在0℃的电阻值（R0）
分度号Pt100 B级 R0=100±0.12Ω
铂热电阻的电阻与温度关系一般可用以下关系表示：在-79～0℃范围内
Rt=R0｛1+At+Bt2+C(t-100℃)t3｝
Rt=R0(1+At+Bt2)
Rt 为t℃时热电阻的电阻值（Ω）
式中的R0为0℃时热电阻的电阻值（Ω）
t为被测介质温度（℃）
A、B、C等均为有关的分度常数
测量范围和准确度
|
