隔爆铂电阻WZPK2526SA 价格

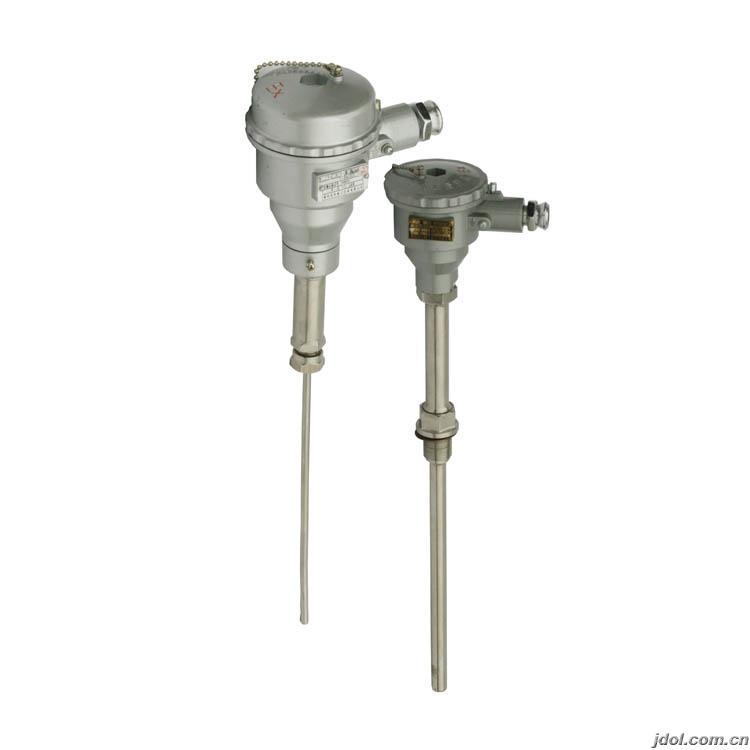

隔爆铂电阻 WZPK2526SA 产品介绍
中文介绍
隔爆铂电阻 WZPK2526SA 是一款专为工业环境设计的高性能温度传感器。该产品采用先进的隔爆技术，能够在具有潜在爆炸性气体的环境中安全使用。其测温范围为 -200℃ 至 500℃，能够满足多种工业场景的温度测量需求。
该产品使用高质量的铂电阻作为感温元件，具有良好的线性输出和高精度测量性能。其保护管采用 1Cr18Ni9Ti 不锈钢材质，具有优异的耐腐蚀性和机械强度。此外，WZPK2526SA 的接线盒采用特殊的隔爆结构设计，能够有效防止内部火花外泄，确保设备在危险环境中的安全运行。
WZPK2526SA 的安装方式灵活多样，支持固定螺纹和固定法兰等多种安装形式。这使得用户可以根据实际工况选择最适合的安装方式，提高设备的稳定性和可靠性。其热响应时间短，能够快速准确地反映被测介质的温度变化。
English Introduction
The WZPK2526SA Explosion-Proof Platinum Resistance Thermometer is a high-performance temperature sensor designed for industrial environments. This product uses advanced explosion-proof technology and is safe for use in environments with potentially explosive gases. It has a temperature measurement range of -200℃ to 500℃, which can meet the temperature measurement needs of various industrial applications.
The product uses high-quality platinum resistance as the temperature-sensing element, offering good linear output and high-precision measurement performance. The protection tube is made of 1Cr18Ni9Ti stainless steel, which provides excellent corrosion resistance and mechanical strength. In addition, the junction box of the WZPK2526SA is specially designed with an explosion-proof structure that can effectively prevent the escape of internal sparks, ensuring the safe operation of the equipment in hazardous environments.
The WZPK2526SA offers flexible installation options, including fixed threads and fixed flanges. This allows users to choose the most suitable installation method based on actual working conditions, enhancing the stability and reliability of the equipment. It also has a short thermal response time, enabling it to quickly and accurately reflect the temperature changes of the measured medium.
隔爆铂电阻
WZPK-524S，WZPK-525S，WZPK-526S，WZPK2-525SA，WZPK2526SA，WZPK-133S，WZPK-134S，WZPK-135S，WZPK-136S，WZPK2-135SA，WZPK2-136SA，WZPK-233S，WZPK-234S，WZPK-235S，WZPK-236S，WZPK2-235SA，WZPK2-236SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-336S，WZPK2-335SA，WZPK2336SA，WZPK-433S，WZPK-434S，WZPK-435S，WZPK-436S，WZPK2-435SA，WZPK2436SA，WZPK-533S，WZPK-534S，WZPK-535S，WZPK-536S，WZPK2-535SA，WZPK2536SA，WZPK-163S，WZPK-164S，WZPK-165S，WZPK-166S，
应用
工业用隔爆铂电阻是一种温度传感器。在工业自控系统中应用极广，通过温度传感器，可将 控制对象的温度参数变成电信号,传递给显示、记录和调节仪表,对系统实行检测、调节和控制。在化工厂、生产现场常伴有各种易燃、易爆等化学气体、 蒸气，如果使用普通的铂电阻非常不安全，极易引起环境气体爆炸。因此，在这些场合必须使用隔爆热电偶作温度传感器，本厂生 产的隔爆铂电阻产品适用在d II BT4~d II CT6 温度组别区间内具有爆炸性气体危险的场所内。本厂生产的隔爆热电偶采用引进元件作感温元件，其技术性能符合 ZBY301-85工业铂电技术 条件和分度表。同时产品符合爆炸性环境用防爆电气设备通用要求 GB3836.1-83 、 GB3836.2-83 标准。
|
