隔爆铂电阻WZPK-534S 价格
中文介绍

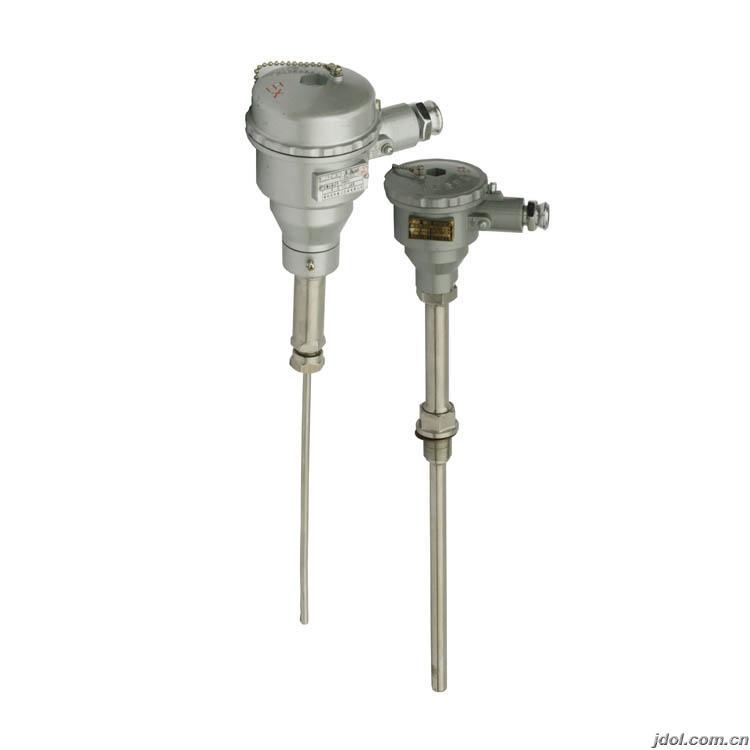

隔爆铂电阻 WZPK-534S 是一种专为工业环境设计的高精度温度测量元件。该产品采用优质铂材料作为感温元件，具有良好的稳定性和重复性，能够精确测量温度范围在 -200℃至 500℃之间的介质。其热响应时间短，仅为 5 秒，能够快速响应温度变化。
在结构设计上，WZPK-534S 采用隔爆接线盒和可动卡套法兰安装方式，适用于多种复杂工况。其保护管直径为 4mm，长度可根据实际需求选择。此外，该产品还具备良好的绝缘性能和抗干扰能力，能够在恶劣的电磁环境中稳定工作。
隔爆铂电阻 WZPK-534S 广泛应用于石油化工、电力、冶金等行业，用于测量液体、气体或蒸汽的温度。其高精度和快速响应特性使其成为工业自动化控制系统中的重要组成部分。
English Introduction
The Explosion-proof Platinum Resistance Thermometer WZPK-534S is a high-precision temperature measuring element specifically designed for industrial environments. It uses high-quality platinum as the temperature-sensing element, which offers excellent stability and repeatability. This device can accurately measure media within a temperature range of -200℃ to 500℃. With a fast thermal response time of only 5 seconds, it can quickly respond to temperature changes.
In terms of structural design, the WZPK-534S features an explosion-proof junction box and a movable flange mounting method, making it suitable for various complex working conditions. The protective tube has a diameter of 4mm and is available in different lengths according to specific requirements. Additionally, the device has good insulation properties and anti-interference capabilities, ensuring stable operation in harsh electromagnetic environments.
The Explosion-proof Platinum Resistance Thermometer WZPK-534S is widely used in industries such as petrochemicals, power generation, and metallurgy. It is employed to measure the temperature of liquids, gases, or steam. Its high precision and rapid response characteristics make it an essential component in industrial automation control systems.
隔爆铂电阻
WZPK-524S，WZPK-525S，WZPK-526S，WZPK2-525SA，WZPK2526SA，WZPK-133S，WZPK-134S，WZPK-135S，WZPK-136S，WZPK2-135SA，WZPK2-136SA，WZPK-233S，WZPK-234S，WZPK-235S，WZPK-236S，WZPK2-235SA，WZPK2-236SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-336S，WZPK2-335SA，WZPK2336SA，WZPK-433S，WZPK-434S，WZPK-435S，WZPK-436S，WZPK2-435SA，WZPK2436SA，WZPK-533S，WZPK-534S，WZPK-535S，WZPK-536S，WZPK2-535SA，WZPK2536SA，WZPK-163S，WZPK-164S，WZPK-165S，WZPK-166S，
应用
工业用隔爆铂电阻是一种温度传感器。在工业自控系统中应用极广，通过温度传感器，可将 控制对象的温度参数变成电信号,传递给显示、记录和调节仪表,对系统实行检测、调节和控制。在化工厂、生产现场常伴有各种易燃、易爆等化学气体、 蒸气，如果使用普通的铂电阻非常不安全，极易引起环境气体爆炸。因此，在这些场合必须使用隔爆热电偶作温度传感器，本厂生 产的隔爆铂电阻产品适用在d II BT4~d II CT6 温度组别区间内具有爆炸性气体危险的场所内。本厂生产的隔爆热电偶采用引进元件作感温元件，其技术性能符合 ZBY301-85工业铂电技术 条件和分度表。同时产品符合爆炸性环境用防爆电气设备通用要求 GB3836.1-83 、 GB3836.2-83 标准。
|
