中英文产品介绍（共450字）
【中文部分】

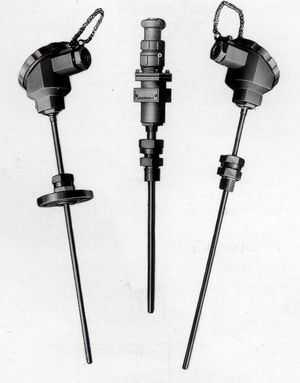

铠装铂电阻WZPK-476U是一款专为工业领域设计的高精度温度传感装置，采用铂薄膜传感元件与多层防护结构，适用于复杂工况下的长期稳定监测。产品凭借优异的材料选型与工艺设计，可满足石油化工、电力能源、医药制造等行业的多样化温度测量需求。
核心优势：
-
耐候性强
壳体采用316L不锈钢铠装护套，结合氧化镁绝缘层填充技术，有效抵御高温、高压及腐蚀性介质的冲击，长期耐受温度范围达-200℃~650℃。防护等级IP68设计支持潮湿、粉尘等恶劣环境使用。
-
响应快速
微型化传感头结构缩短热传导路径，配合高密度封装工艺，显著提升热响应效率。典型热响应时间（T0.5）小于0.8秒，适用于动态温度场的高速采集需求。
-
长期稳定性
铂电阻元件经多层退火处理，减少内部应力影响，配合梯度式封装工艺，确保全量程范围内精度误差≤±0.15%FS。年漂移率控制在0.02%以内，降低设备校准频次。
-
灵活适配
提供多种引线长度（100mm~2000mm）与接口规格（M12×1.5/M16×1.5），支持法兰、螺纹、卡套等多种安装方式，适配DN15~DN250管道及设备腔体。
-
智能兼容
输出信号符合IEC 60751国际分度表，支持Pt100/Pt1000双模式切换，可与主流PLC系统及温度变送器无缝对接。内置抗电磁干扰屏蔽层，保障信号传输完整性。
该产品通过模块化设计简化维护流程，用户可快速完成传感单元更换。建议定期检查护套密封性，避免机械损伤导致介质渗透。根据实际工况选择合适测温范围与安装角度，可延长使用寿命至8年以上。
【English Part】
The armored platinum resistance thermometer WZPK-476U is a precision temperature sensing device engineered for industrial applications. Featuring a platinum thin-film sensing element and multi-layer protective structure, it delivers reliable long-term monitoring in challenging operating conditions. The product is widely adopted in petrochemical, power generation, and pharmaceutical industries due to its robust construction and measurement consistency.
Key Features:
-
Enhanced Durability
316L stainless steel armor with magnesium oxide insulation provides exceptional resistance to high temperature (up to 650℃), pressure fluctuations, and corrosive media. IP68-rated sealing ensures reliable operation in humid or dusty environments.
-
Rapid Thermal Response
Miniaturized sensing tip combined with compact encapsulation technology achieves fast heat transfer, delivering a typical thermal response time (T0.5) below 0.8 seconds for dynamic temperature monitoring scenarios.
-
Measurement Consistency
Multi-stage annealing process minimizes internal stress in platinum elements, maintaining accuracy within ±0.15%FS across the full range (-200℃~650℃). Long-term drift is controlled below 0.02% annually, reducing calibration requirements.
-
Configuration Flexibility
Customizable cable lengths (100mm-2000mm) and threaded connections (M12×1.5/M16×1.5) support diverse installation methods including flange, threaded, and compression fittings, compatible with DN15-DN250 pipelines.
-
System Integration
IEC 60751-compliant output supports Pt100/Pt1000 dual modes for seamless integration with PLCs and temperature transmitters. Built-in EMI shielding maintains signal integrity in electrically noisy environments.
The modular design simplifies maintenance procedures, allowing quick sensor replacement. Regular inspection of armor integrity is recommended to prevent media ingress. Proper selection of temperature range and installation orientation can extend service life beyond 8 years under typical operating conditions.
