铠装铂电阻WZPK2-336SA 厂家
中文介绍

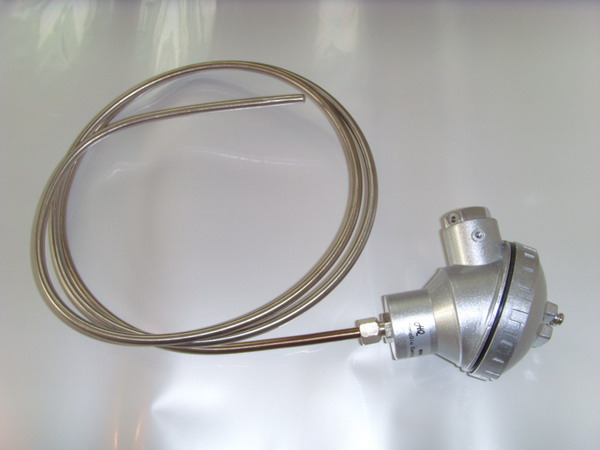

WZPK2-336SA铠装铂电阻是一种高性能的温度传感器，广泛应用于工业自动化和过程控制领域。它采用先进的铂电阻测温元件，具有精确、灵敏、热响应时间快、质量稳定、使用寿命长等优点。该产品的外保护套采用不锈钢材质，内填充高密度氧化镁绝缘体，使其具有很强的抗污染性能和优良的机械强度，能够适应恶劣的工作环境。
WZPK2-336SA铠装铂电阻可用于测量-200℃至500℃范围内的温度，能够直接与铜导线和二次仪表连接，为显示仪、记录仪、调节器、扫描器、数据记录仪以及电脑提供精确的温度变化输入信号。其直径小、易弯曲、抗震性好，特别适合安装在装配式铂电阻无法安装的场合。此外，该产品还具备防水式接线盒，进一步提升了其在复杂环境中的可靠性。
English Introduction
The WZPK2-336SA armored platinum resistance thermometer is a high-performance temperature sensor widely used in industrial automation and process control. It features precise, sensitive, fast thermal response, stable quality, and long service life, thanks to the advanced platinum resistance temperature sensing elements. The thermometer is equipped with a stainless steel outer protective sheath and filled with high-density magnesium oxide insulating material, which provides strong resistance to contamination and excellent mechanical strength, making it suitable for harsh working environments.
The WZPK2-336SA armored platinum resistance thermometer can measure temperatures ranging from -200°C to 500°C. It can be directly connected to copper wires and secondary instruments, providing accurate temperature change input signals for displays, recorders, regulators, scanners, data recorders, and computers. With its small diameter, flexibility, and good抗震性，it is particularly suitable for installation in locations where traditional platinum resistance thermometers cannot be used. Additionally, the thermometer features a waterproof junction box, further enhancing its reliability in complex environments.
铠装铂电阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，铠装铂电阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述
铠装铂电阻是一种温度传感器，它比装配式铂电阻直径小，易弯曲，抗震性好，适宜安装在装配式铂电阻无法安装的场合。本公司生产的WZPK系列铠装铂电阻采用引进铂电阻测温元件，因此，具有精确、灵敏、热响应时间快、质量稳定、使用寿命长等特点。
特点
★ 热响应时间短，减小动态误差
★ 直径小，长度不受限制
★ 测量精确度高
★ 进口薄膜电阻元件，性能可靠稳定
工作原理
铠装铂电阻是利用物质在温度变化时，其电阻值也随着发生变化的特征来测量温度的，当阻值变
化时，工作仪表便显示出阻值所对应的温度值。
|
