铠装铂电阻WZPK2-136SA 厂家
中文介绍

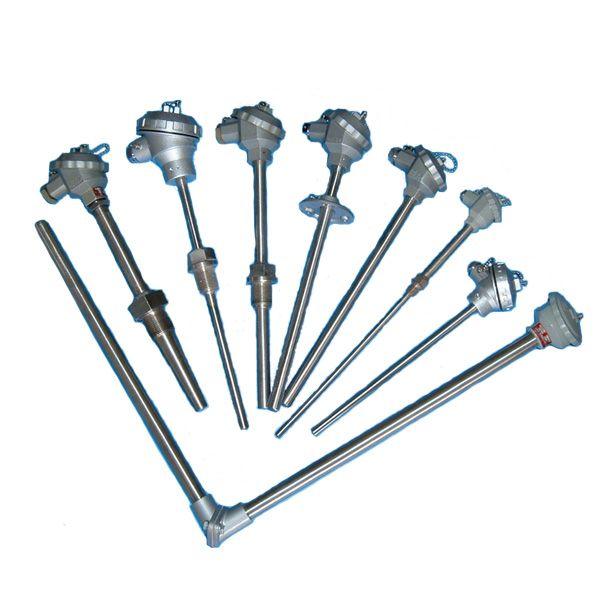

铠装铂电阻WZPK2-136SA是一种高性能的温度传感器，广泛应用于工业测温领域。它采用铠装结构设计，具有直径小、易弯曲、抗震性好等特点，特别适合安装在装配式铂电阻无法安装的复杂场合。该产品的测温范围为-200℃至500℃，能够满足多种恶劣环境下的温度测量需求。其热响应时间短，热响应时间T0.5S≤12秒，能够快速准确地反映温度变化。此外，该产品采用1Cr18Ni9Ti不锈钢作为保护管和固定装置材料，具有良好的耐腐蚀性和机械强度。
English Introduction
The WZPK2-136SA armored platinum resistance thermometer is a high-performance temperature sensor widely used in industrial temperature measurement. It features an armored structure design, which makes it small in diameter, easy to bend, and highly resistant to vibration. These characteristics make it particularly suitable for installation in complex environments where conventional platinum resistance thermometers cannot be installed. The thermometer has a wide temperature measurement range of -200℃ to 500℃, making it capable of meeting the temperature measurement requirements in various harsh environments. With a short thermal response time (T0.5S≤12 seconds), it can quickly and accurately reflect temperature changes. Additionally, the product uses 1Cr18Ni9Ti stainless steel for the protective tube and fixing device, offering excellent corrosion resistance and mechanical strength.
铠装铂电阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，铠装铂电阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述
铠装铂电阻是一种温度传感器，它比装配式铂电阻直径小，易弯曲，抗震性好，适宜安装在装配式铂电阻无法安装的场合。本公司生产的WZPK系列铠装铂电阻采用引进铂电阻测温元件，因此，具有精确、灵敏、热响应时间快、质量稳定、使用寿命长等特点。
特点
★ 热响应时间短，减小动态误差
★ 直径小，长度不受限制
★ 测量精确度高
★ 进口薄膜电阻元件，性能可靠稳定
工作原理
铠装铂电阻是利用物质在温度变化时，其电阻值也随着发生变化的特征来测量温度的，当阻值变
化时，工作仪表便显示出阻值所对应的温度值。
|
