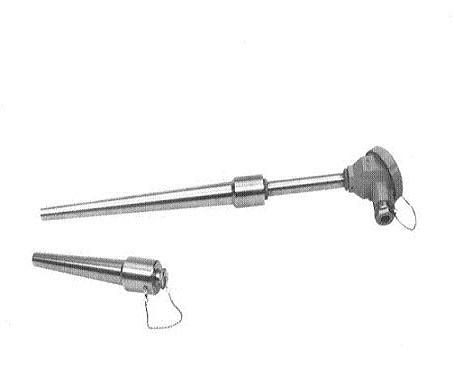

可动式热电阻WZP-421 价格
产品概述
可动式热电阻WZP-421是一款高精度的温度传感器，专为工业测温需求设计。该产品采用优质不锈钢保护管和铂电阻感温元件，能够直接测量-200℃至500℃范围内的液体、蒸汽、气体介质及固体表面温度。其装配式结构设计灵活，支持多种安装方式，便于现场调试与维护。产品具有抗振性能强、机械耐压性好、热响应速度快（典型值5秒）等特点，广泛应用于石油、化工、电力、冶金等领域的温度监测与控制系统中。11114
核心特点
WZP-421采用压簧式感温元件，有效减少机械振动对测量精度的影响。感温元件通过细金属丝双绕绝缘骨架工艺制成，确保温度梯度测量的一致性。保护管材质可选1Cr18Ni9Ti或0Cr18Ni12Mo2Ti不锈钢，适应不同腐蚀性环境。产品支持防溅式或防水式接线盒，防护等级满足工业现场需求。此外，用户可根据实际需求选择单支或双支感温元件配置，双支型号适用于需同步显示或冗余控制的场合。21219
技术参数
测温范围覆盖-200℃至420℃（Pt100分度号），在-200~650℃范围内精度可达±(0.15+0.002|t|)℃。常温绝缘电阻≥100MΩ（测试电压10-100VDC），最大允许工作电流5mA（温升≤0.3℃）。热响应时间T0.5≤30秒（常规配置），最小插入深度为保护管直径的8-10倍。公称压力最高可达10MPa（视保护管规格而定），适用于管道及压力容器安装。42325
应用场景
该产品特别适合需要频繁调整安装位置的工况，如反应釜温度监测、蒸汽管道巡检等。在食品加工领域，其卫生型设计便于清洁；在核电行业，稳定性能满足长期运行要求。典型配套设备包括DCS系统、记录仪及PLC控制器，通过铜导线直接连接，输出电阻信号与温度呈线性关系。152022
服务与定制
提供多种规格选择，保护管直径可选12mm或16mm，长度支持300-900mm定制。支持三线制接线方式以消除引线电阻误差，并提供安装法兰、螺纹等附件选项。用户可根据介质特性选择薄膜式或铠装感温元件，满足特殊场景的快速响应要求。51729
English Version
Product Overview
The movable thermal resistor WZP-421 is a precision temperature sensor designed for industrial applications. Featuring stainless steel protection tubes and platinum sensing elements, it measures temperatures from -200°C to 500°C in liquids, vapors, gases, and solid surfaces. Its modular design allows flexible installation with options for vibration-resistant configurations and quick maintenance. Ideal for petrochemical, power generation, and metallurgical industries, it delivers fast thermal response (typically 5s) and robust pressure resistance.114
Key Features
Equipped with spring-loaded sensing elements, the WZP-421 minimizes measurement drift caused by mechanical shocks. The dual-wire winding technique on insulated frames ensures uniform temperature gradient detection. Customizable protection tubes (1Cr18Ni9Ti/0Cr18Ni12Mo2Ti) accommodate corrosive environments, while IP-rated junction boxes (splash-proof/waterproof) enhance field reliability. Dual-element versions are available for redundant monitoring systems.212
Specifications
With a measuring range of -200°C to 420°C (Pt100), its accuracy reaches ±(0.15+0.002|t|)°C (-200~650°C). Insulation resistance exceeds 100MΩ (10-100VDC), and maximum allowable current is 5mA (ΔT≤0.3°C). The thermal time constant T0.5 is ≤30s (standard), with minimum insertion depth at 8-10 times the tube diameter. Pressure rating up to 10MPa suits pipeline and vessel installations.425
Applications
Designed for dynamic environments requiring positional adjustments, it excels in reactor monitoring, steam line inspections, and hygienic food processing. Its stable performance meets long-term nuclear plant operations. Compatible with DCS, PLCs, and chart recorders, it provides linear resistance-to-temperature output via direct copper wiring.1522
Customization & Support
Multiple configurations include 12mm/16mm tube diameters and 300-900mm lengths. Three-wire connection eliminates lead resistance errors, with optional flanges/threads for mounting. Thin-film or sheathed elements are available for specialized rapid-response requirements.517
