耐腐型、耐磨型热电阻WZP-231 厂家

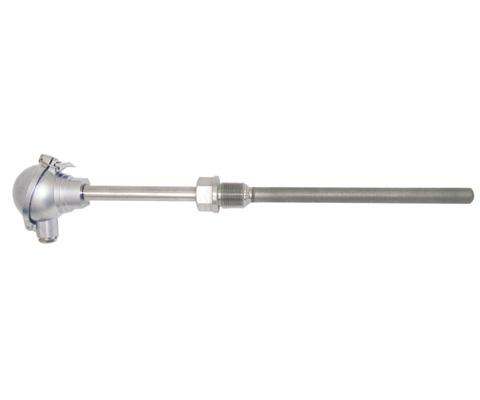

产品概述
耐腐型、耐磨型热电阻WZP-231是一款专为工业严苛环境设计的温度传感器，适用于化工厂、冶炼厂、火电厂等具有强腐蚀或高磨损特性的工况。该产品通过特殊材料与结构优化，有效解决了普通热电阻在恶劣环境下易损坏的问题，能够长期稳定地测量介质温度。123
产品特点
WZP-231采用耐腐型涂层技术，具有良好的化学稳定性，能够抵抗绝大多数化学介质的侵蚀，包括酸、碱及有机溶剂，但对熔融金属锂、钾、钠及高流速液氟等极端介质需避免接触。其耐磨型涂层硬度达到HRC58-62，可承受0-600℃范围内的高温磨损，部分型号可扩展至0-1000℃。产品结构设计兼顾耐压与密封性，但需注意耐腐结构的螺纹部分不适用于高压环境。456
应用场景
该产品广泛应用于化工流程控制、冶金高温炉监测、电力锅炉温度检测等领域，特别适用于循环流化床锅炉、水泥窑尾等高磨损场景。在石油、环保等行业中，其钛合金保护管版本可耐受海水、氯化物及氧化性酸腐蚀，为长期稳定运行提供保障。789
技术参数
WZP-231采用铂电阻元件(Pt100)，测温范围覆盖-200℃至800℃，部分型号可达1000℃。保护管直径通常为12mm或16mm，支持螺纹或法兰安装。产品响应时间根据插入深度不同可优化至24秒（浅插式）或90秒（深插式），电气接口提供M20×1.5或NPT1/2等多种选项。101112
Introduction to WZP-231 Corrosion & Wear-Resistant RTD
The WZP-231 is an industrial-grade temperature sensor engineered for harsh environments featuring chemical corrosion or mechanical abrasion. Its specialized coating and structural design ensure reliable performance in chemical plants, smelters, and power stations where standard RTDs would rapidly degrade. The sensor maintains stable measurements through advanced material selection and protective mechanisms.131415
Key Features
This RTD utilizes dual protective technologies: The corrosion-resistant coating exhibits exceptional chemical inertness against most acids, alkalis and organic solvents (excluding molten alkali metals and high-velocity fluorine). The wear-resistant surface with hardness up to HRC58-62 withstands continuous abrasion at 0-600°C, with optional high-temperature versions reaching 1000°C. The pressure-resistant body design incorporates sealed connections, though threaded corrosion-proof joints have pressure limitations.161718
Typical Applications
Ideal for process control in aggressive media, the WZP-231 excels in CFB boilers, cement kiln exhaust systems, and metallurgical furnaces. The titanium-alloy variant demonstrates particular effectiveness in marine applications and chlorinated compound handling, providing extended service life in oxidizing acid environments. Its versatility covers petrochemical, environmental monitoring, and heavy industrial sectors.192021
Specifications
Equipped with platinum sensing elements (Pt100), the WZP-231 measures from -200°C to 800°C (extendable to 1000°C). Standard protection tube diameters include 12mm and 16mm with threaded/flange mounting options. Response time ranges from 24s (shallow insertion) to 90s (deep immersion), with multiple electrical connection types including M20×1.5 and NPT1/2 available for flexible installation.222324
耐腐型、耐磨型热电阻
WZP-130, WZP-131, WZP2-120, WZP2-121, WZP2-130, WZP2-131, WZC-120,WZC-130, WZP-220, WZP-221, WZP-230, WZP-231, WZP2-220, WZP2-221, WZP2-230,WZP2-231, WZP-221A, WZP2-221A, WZC-220, WZC-230, WZC-220A, WZP-220, WZP-221WZP-230, WZP-231, WZP2-220, WZP2-221, WZP2-230, WZP2-231, WZP-220A, WZP2-220A, WZC-220, WZC-230, WZC-220A, WZP-320, WZP-321, WZP-330, WZP-331, WZP2-320, WZP2-321, WZP2-330, WZP2-331,
隔爆本安型带热电偶电阻，SBWR-4270/440D，WZP2-892
热电阻：
MWFT-1，MWFT-2，MWFT-3，WZP-120B，WZP-121B，WZP-130B，WZP-131B，WZP2-120B，WZP2-121B，WZP2-130B，WZP2-131B，WZC-120B，WZC-130B，WZP-220B，WZP-221B，
WZP-230B，WZP-231B，WZP2-220B，WZP2-221B，WZP2-230B，WZP2-231B，WZP-220ABWZP2-220AB，WZC-220B，WZC-120B，电站测温用热电阻WZC-130B，WZP-220B，WZP-221B，WZP-230B，WZP-231B，WZP2-220B，WZP2-221B，WZP2-230B，WZP2-231B，WZP-220AB，WZP2-220AB。WZC-220B，WZC-230B，WZC-220AB，WZP-320B，WZP-321B，WZP-330B，WZP-331B，WZP2-320B，WZP2-321B，WZP2-330B，WZP2-330B，WZC-320B，WZC-320B，WZP-420B，WZP-421B，WZP-430B，WZP-431B，WZP2-420B，WZP2-421B，WZP2-430B，WZP2-431B，WZP-42AB，WZP2-42AB，WZC-420B，WZC-430B，WZP-420B，WZP-421B，WZP-430B，WZP-430B，WZP-431B，WZP2-420B，WZP2-421B，WZP2-430B，WZP2-431B，WZP-42AB，WZP2-42AB，WZP-420B，WZC-430B，WZP-621B，WZP-621AB，WZP-631B，WZP2 -621B，WZP2 -621B，WZP2 -631B，WZP-621B，WZP-631B，WZP-621B，WZP2 -631B，WZP-621AB，WZP2-621AB，WZP-002，WZP-003，WZP-003A，WZCM-201，WZPM-201，WZPM-201，WZP-270S，WZP-26S，WZP-236SB，薄膜铂热电阻WZP2-236SB，WZP-1312AB，WZP2-1312AB，WZP-212AB，WZP2-212AB，WZP-3312AB，WZP2-3312AB，WZP-4312AB，WZP2-4312AB，WZP-6312AB，WZPK-103U，WZPK-104U，WZPK-105U，WZPK-106U，WZPK-106U，WZPK-204U，WZPK-205U，WZPK-206U，WZPK-303U，WZPK-304U，WZPK-305U，WZPK-306U，WZPK-403U，WZPK-404U，WZPK-405U，WZPK-406U，WZPK-503U，WZPK-504U，WZPK-505U，WZPK-506U，WZPK-133U，WZPK-134U，WZPK-135U，WZPK-136U，WZPK-233U，WZPK-234U，WZPK-235U，WZPK-236U，WZPK-333U，WZPK-334U，WZPK-335U，WZPK-336U，WZPK-433U，WZPK-434U，WZPK-435U，WZPK-436U，WZPK-533U，WZPK-534U，WZPK-535U，WZPK-536U，WZPK-123UWZPK-124U，装配式不锈钢接线盒铂电阻WZPK-125U，WZPK-126U，WZPK-223U，WZPK-224U，WZPK-225U，WZPK-226U，WZPK-323U，WZPK-324U，WZPK-325U，WZPK-326U，WZPK-423U，WZPK-424U，WZPK-425U，WZPK-426U，WZPK-523U，WZPK-524U，WZPK-525U，WZPK-526U，WZPK-163U，WZPK-164U，WZPK-165U，WZPK-166U，WZPK-263U，WZPK-264U，WZPK-265U，WZPK-266U，WZPK-363U，WZPK-364U，WZPK-365U，WZPK-366U，WZPK-463U，WZPK-464U，WZPK-465U，铠装铂电阻WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，铠装铂电阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，WZC-430B，WZPK-164S，WZPK-575S，WZPK-505S，WZPK-565S，WZPK-566S，WZP-431C，WZPK-466U化工专用隔爆型热电阻WZPK-304S，WZPK-305S，WZPK-306S，WZPK2-305SA，WZPK2306SA，WZPK-403S，WZPK-404S，WZPK-405S，WZPK-406S，WZPK2-405SA，WZPK2406SA，WZPK-503S，WZPK-504S，WZPK-505S，WZPK-506S，WZPK2-505SA，WZPK2506SA，WZPK-123S，WZPK-124S，WZPK-125S，WZPK-126S，WZPK2-125SA，WZPK2-126SA，WZPK-223S，WZPK-224S，WZPK-225S，WZPK-226S，WZPK2-225SA，WPK2-225SA，WZPK2-226SA，WZPK-323S，WZPK-324S，WZPK-325S，WZPK-326S，WZPK2-325SA，WZPK2326SA，WZPK-423S，WZPK-424S，WZPK-425S，WZPK-426S，WZPK2-425SA，WZPK2426SA，WZPK-523S，
|
