热电偶配件WZP-014S 厂家
WZP-014S铂热电阻元件产品概述
WZP-014S铂热电阻元件是一种采用微型陶瓷管作为保护管的内绕结构温度传感器，最小外径可做到φ1.6mm，适合制成微型探头。该产品基于铂电阻随温度变化的特性设计，测温范围覆盖-200℃至800℃，具有电气性能稳定、温度与电阻关系近线性、精度高等特点。元件可搭配金属保护管及螺纹接头、法兰等安装件组成装配式热电阻，或用于表面测温场景。其紧凑结构和快速热响应特性使其广泛应用于石油、化工、冶金、电力等领域。2719
Introduction to WZP-014S Platinum Thermal Resistor Element
The WZP-014S platinum thermal resistor element features a compact internal winding structure with a miniature ceramic protection tube, enabling a minimal outer diameter of φ1.6mm for micro-probe applications. Utilizing the principle of platinum resistance variation with temperature, it operates within -200℃ to 800℃, offering stable electrical performance, near-linear temperature-resistance correlation, and high accuracy. The element can be combined with metal protective tubes and mounting fixtures (e.g., threaded connectors, flanges) to form assembled thermometers or adapted for surface temperature measurement. Its small size and rapid thermal response make it suitable for industries such as petrochemicals, metallurgy, and power generation.221
产品技术特点
WZP-014S采用陶瓷或不锈钢套管材质，热响应时间T0.5≤0.5秒，自热影响低于0.3℃（5mA电流下）。元件支持三线制接线以减少引线电阻误差，并与显示仪、记录仪等设备配套使用。其结构设计兼顾耐振性与机械强度，适用于防震场合如轴承温度监测。通过优化绕线工艺和材料选择，产品在高温环境下仍能保持稳定性，且可定制端面或铠装型号以满足不同安装需求。71625
Technical Features
The WZP-014S employs ceramic or stainless steel sheaths with a thermal response time T0.5≤0.5 seconds and self-heating effects below 0.3℃ (at 5mA). Its three-wire connection minimizes lead resistance errors and is compatible with displays and data loggers. The vibration-resistant design enhances durability in high-motion environments like bearing temperature monitoring. Optimized winding techniques and material selection ensure stability under extreme temperatures, while customizable end-face or armored versions adapt to diverse installation conditions.111719
应用场景
该元件适用于需高精度温度控制的工业场景，如反应釜内介质测温、管道表面温度监测、汽轮机推力瓦测温等。在食品、纺织、医药等行业中，其卫生型结构设计符合生产环境要求。此外，微型化特性使其在科研仪器和狭小空间部署中表现突出。21220
Application Scenarios
Ideal for high-precision industrial temperature control, the element is used in reactor medium measurement, pipeline surface monitoring, and turbine thrust pad applications. Its hygienic design meets requirements in food, textile, and pharmaceutical industries, while the miniaturized version excels in scientific instruments and confined spaces.51423

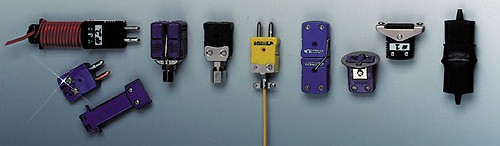

热电偶配件
