WZP2-220B 工业用铂热电阻中英文产品介绍
产品概述

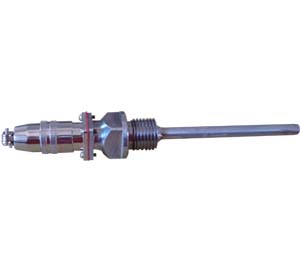

WZP2-220B 铂热电阻是一款专为工业温度测量场景设计的高精度测温元件。产品采用优质铂丝作为感温材料，结合先进的封装工艺，能够在复杂工况下实现长期稳定的温度信号采集。其结构设计兼顾防护性与灵活性，适用于多种设备安装需求，是工业自动化控制系统中温度监控环节的理想选择。
核心优势
- 高精度测量：铂电阻元件线性度优异，测温范围覆盖-200℃至+500℃，可满足大部分工业场景需求。
- 环境适应性：不锈钢保护管材质（可选304/316L）配合双层密封结构，有效抵御腐蚀性介质、粉尘及潮湿环境影响。
- 快速响应：优化设计的感温端结构缩短了热响应时间，确保设备及时反馈温度变化。
- 安装便捷：提供多种接口规格（如螺纹连接、法兰固定），适配不同设备安装标准，降低改造难度。
典型应用领域
- 石油化工：反应釜、管道介质温度监测
- 电力能源：锅炉系统、汽轮机温度保护
- 冶金制造：熔炉、热处理设备温控
- 制药/食品：洁净环境下的工艺温度管理
技术参数
| 项目 |
参数 |
| 分度号 |
Pt100 |
| 测温范围 |
-200℃ ~ +500℃ |
| 精度等级 |
Class A/B（可选） |
| 保护管材质 |
不锈钢304/316L |
| 接线方式 |
两线制/三线制 |
| 防护等级 |
IP65（可选更高） |
服务支持
我们提供定制化设计方案，可根据客户需求调整保护管长度、插入深度及接线盒形式（防水型、防爆型）。专业工程师团队全程提供选型指导与售后技术支持，确保设备快速投入使用。
WZP2-220B Industrial Platinum RTD Bilingual Introduction
Product Overview
The WZP2-220B Platinum Resistance Thermometer is a high-precision temperature sensing component engineered for industrial applications. Utilizing premium platinum wire as the sensing element and advanced encapsulation technology, it delivers reliable temperature data acquisition even in harsh operating conditions. Its versatile mechanical design balances robust protection with flexible installation options, making it an optimal solution for temperature monitoring in industrial automation systems.
Key Advantages
- Precision Measurement: Platinum element ensures excellent linearity with a wide operating range (-200℃ to +500℃).
- Environmental Resistance: Stainless steel sheath (304/316L optional) with dual-layer sealing effectively resists corrosion, dust, and moisture.
- Rapid Response: Optimized tip structure accelerates thermal equilibrium for real-time feedback.
- Easy Integration: Multiple interface options (threaded, flanged) simplify retrofitting into existing equipment.
Typical Applications
- Petrochemical: Reactor vessel & pipeline temperature monitoring
- Power Generation: Boiler systems & turbine protection
- Metallurgy: Furnace & heat treatment control
- Pharma/Food: Process temperature management in cleanrooms
Technical Specifications
| Parameter |
Value |
| Sensor Type |
Pt100 |
| Temperature Range |
-200℃ ~ +500℃ |
| Accuracy Class |
Class A/B (optional) |
| Sheath Material |
SS304/316L |
| Wiring Configuration |
2-wire/3-wire |
| Protection Rating |
IP65 (upgradable) |
Service Commitment
Customized solutions are available for sheath length, insertion depth, and junction box types (waterproof/explosion-proof). Our engineering team provides lifecycle support from product selection to post-installation troubleshooting, ensuring seamless integration with your systems.
