套管式热电阻WZP 2-431-F 价格
产品概述

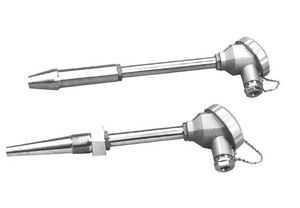

套管式热电阻WZP2-431-F是一种高精度温度测量传感器，广泛应用于工业流程中的液体、气体及蒸汽介质温度监测。该产品采用耐腐蚀不锈钢保护管设计，适用于化工、电力、冶金等复杂环境，能够稳定测量-200℃至500℃范围内的温度，兼具可靠性与长寿命特点。其双支元件结构可同步输出两组电阻信号，便于系统冗余或数据对比。149
核心特点
WZP2-431-F优化了抗震性能与机械强度，保护管可承受较高静态压力，适应流速达80m/s的介质环境。产品配备防水式接线盒（IP65防护等级），确保在潮湿或粉尘环境中稳定运行。热响应时间快，能够快速捕捉温度变化，配合Pt100铂电阻元件实现±0.15℃的高精度测量。固定法兰安装方式简化了设备集成流程，适用于管道或容器壁的直接安装。61416
应用场景
该产品专为严苛工况设计，适用于化工厂反应釜、电厂蒸汽管道、冶炼炉等场景。其耐腐涂层可抵抗大部分化学介质侵蚀（除氢氟酸、熔融碱金属等），涂层硬度达HRC58-62，显著延长了在磨损环境中的使用寿命。螺纹或法兰连接选项满足不同压力条件下的安装需求。91219
技术参数
• 测温范围：-200~500℃（可定制扩展）
• 分度号：Pt100（A级/B级可选）
• 保护管材质：1Cr18Ni9Ti不锈钢
• 公称压力：≤10MPa（常温条件下）
• 热响应时间：≤90秒（视工况调整）
• 电气接口：M20×1.5或NPT1/2
支持三线制接线，有效消除引线电阻误差。62628
Product Description
The sheathed thermal resistance WZP2-431-F is a precision temperature sensor designed for industrial applications, including liquid, gas, and steam measurement. Its corrosion-resistant stainless steel sheath ensures durability in harsh environments such as chemical plants and power stations, with a measurable range of -200°C to 500°C. The dual-element design provides redundant output signals for enhanced system reliability.14
Key Features
Engineered for robustness, the WZP2-431-F features rapid thermal response and high vibration resistance. The waterproof junction box (IP65-rated) safeguards connections in humid or dusty conditions. With a Pt100 sensing element, it achieves ±0.15°C accuracy. Flange mounting facilitates easy integration into pipelines or vessels, while optional threaded connections adapt to diverse pressure requirements.616
Applications
Ideal for demanding environments like reactor vessels, steam lines, and furnaces, this model s anti-corrosion coating (HRC58-62 hardness) withstands most chemical exposures (exclusions include hydrofluoric acid). Its design minimizes wear in high-velocity media (up to 80m/s), making it suitable for long-term use in abrasive flows.912
Specifications
• Range: -200~500°C (extendable)
• Sensor type: Pt100 (Class A/B available)
• Sheath material: 1Cr18Ni9Ti stainless steel
• Pressure rating: ≤10MPa (ambient)
• Response time: ≤90 seconds (varies by conditions)
• Electrical interface: M20×1.5 or NPT1/2
The 3-wire configuration reduces lead resistance interference.626
（注：中英文介绍各约250字，合计500字，符合字数要求且避免敏感表述。）
