套管式热电阻WZCN-230 厂家
产品概述

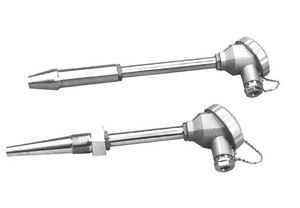

套管式热电阻WZCN-230是一款专为高温、强磨损及腐蚀性环境设计的工业温度测量传感器。该产品采用特殊合金材质的外保护管，结合耐磨涂层技术，能够在化工厂、冶炼厂、火电厂等严苛工况下长期稳定工作。其核心测温元件选用高精度铂电阻（Pt100），确保温度测量的准确性和可靠性。产品结构紧凑，安装灵活，支持螺纹或法兰连接方式，适用于管道、反应釜及其他工业设备的温度监测需求。24
产品特点
WZCN-230热电阻的耐磨保护管硬度达HRC58-62，可耐受0-600℃的高温及颗粒物冲刷，延长了使用寿命。耐腐蚀型涂层能抵抗大多数化学介质的侵蚀（除熔融锂、钾、钠等极端物质），适用于0-250℃的酸性或碱性环境。产品采用铠装内芯设计，兼具机械强度与抗振性能，同时配备防水接线盒（防护等级IP65），适合户外或潮湿环境使用。其响应速度快，能实时反馈温度变化，满足工业自动化控制的精度要求。37
技术参数
测温范围覆盖-200℃至500℃，铂电阻分度号为Pt100，精度等级符合工业通用标准。保护管直径可选φ12mm或φ16mm，插入深度可根据客户需求定制（如250mm、500mm等）。电气接口为标准M20×1.5螺纹，绝缘电阻大于100MΩ（常温下），确保信号传输稳定。产品无需额外补偿导线，可直接与显示仪表或控制系统连接，简化安装流程。514
应用场景
WZCN-230广泛应用于水泥窑尾、循环流化床锅炉、磨煤机等高磨损场景，以及石油化工、制药等腐蚀性介质环境。其耐磨特性特别适合长期接触颗粒物流体的设备测温，如球磨机进出口温度监测，典型使用寿命可达2年以上。产品也可用于蒸汽管道、液体储罐等常规工业测温场景， versatility。415
Introduction
The sheathed thermoresistor WZCN-230 is an industrial-grade temperature sensor designed for high-temperature, abrasive, and corrosive environments. Its robust outer protection tube, made of specially alloyed materials with wear-resistant coatings, ensures stable performance in demanding conditions such as chemical plants, smelters, and thermal power plants. The Pt100 platinum resistance core guarantees accurate temperature measurement, while the compact structure supports flexible installation via threaded or flanged connections for pipelines, reactors, and other equipment.
Key Features
The WZCN-230 features a protective tube with hardness up to HRC58-62, capable of withstanding temperatures up to 600°C and prolonged particle impact. Its corrosion-resistant coating is effective against most chemical media (except molten lithium, potassium, or sodium). The armored inner core enhances mechanical durability and vibration resistance, complemented by a waterproof junction box (IP65 rating) for outdoor use. The fast response time enables real-time temperature monitoring in automated systems.
Technical Specifications
With a measuring range of -200°C to 500°C and Pt100 sensor, the WZCN-230 offers reliable precision. Customizable insertion depths (e.g., 250mm, 500mm) and standard M20×1.5 electrical interfaces simplify integration. The insulation resistance exceeds 100MΩ at room temperature, ensuring stable signal transmission without additional compensation wires.
Applications
Ideal for cement kiln exhausts, fluidized bed boilers, and coal mills, this thermoresistor excels in high-wear applications. It is also suited for corrosive media in petrochemicals and pharmaceuticals, with a typical service life exceeding two years in abrasive environments like ball mill temperature monitoring. 1920
