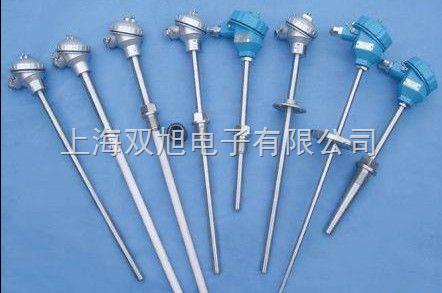

套管式热电阻WZP-121 价格
产品概述
套管式热电阻WZP-121是一款工业级温度传感器，专为测量液体、气体介质及固体表面温度设计，适用于-200℃~600℃的宽温域环境。其核心采用高精度铂电阻感温元件（Pt100），确保测量稳定性和可靠性。产品结构紧凑，由感温元件、保护套管、接线盒及安装固定装置组成，可适配多种工业场景，如石油化工、电力冶金、轻纺食品等领域。保护管材质为不锈钢（如1Cr18Ni9Ti），兼具耐腐蚀与机械强度，适合复杂工况。1913
技术特点
WZP-121采用双层密封接线盒设计（防溅或防水结构），有效抵御潮湿和粉尘侵入。感温元件通过绝缘骨架均匀绕制，响应速度快，能准确反映介质的平均温度。保护管直径可选12mm或16mm，适配不同安装需求。产品支持单支或双支配置，双支型可同时连接多台显示或记录仪表。其常温绝缘电阻≥100MΩ（测试电压10~100V DC），长期使用稳定性优异。热响应时间根据保护管尺寸和介质流速动态优化，满足实时监控需求。3717
应用场景
该产品广泛用于流程工业中的温度监测与控制，如反应釜内液体温度、管道蒸汽热力参数、设备表面过热预警等。在能源领域，可集成至发电机组或输变电系统的温度保护回路；在食品制药行业，符合卫生设计要求的型号适用于洁净环境。其模块化结构支持快速更换，降低维护成本。客户可根据实际需求选择固定螺纹、活动法兰等安装方式，适配不同压力条件（如固定螺纹型耐压10MPa）。11018
Product Introduction
The sheathed thermal resistor WZP-121 is a precision temperature sensor designed for industrial applications, covering a measurement range of -200°C to 600°C. It utilizes a Pt100 platinum sensing element to deliver consistent performance in liquids, gases, and solid surfaces. The robust stainless-steel sheath (e.g., 1Cr18Ni9Ti) provides durability against corrosion and mechanical stress, suitable for harsh environments like petrochemical plants and power stations. The compact design integrates a terminal box, protective tube, and mounting fixtures for flexible installation.1921
Key Features
WZP-121 features a sealed terminal box (splash-proof or waterproof) to ensure operational safety in humid/dusty conditions. The finely wound sensing element on an insulated frame ensures rapid thermal response and accurate average temperature readings. Available in 12mm or 16mm sheath diameters, it supports single or dual-channel configurations for multi-instrument connectivity. With insulation resistance ≥100MΩ under DC voltage, it maintains long-term reliability. The optimized thermal response time adapts to varying fluid velocities, ideal for dynamic process monitoring.71323
Applications
This product is widely adopted in process industries for tasks such as reactor temperature tracking, pipeline steam monitoring, and equipment overheating protection. In energy systems, it safeguards generators and transformers via temperature feedback loops. Hygienic variants meet cleanliness requirements in food/pharmaceutical production. Modular components allow easy maintenance, while threaded or flanged mounting options accommodate diverse pressure conditions (e.g., 10MPa rating for threaded types).101824
套管式热电阻
WZP-331-F, WZP-431-F, WZP 2-131-F, WZP 2-231-F, WZP 2-331-F, WZP 2-431-F, WZC-130-F, WZC-230-F, WZC-330-F, WZC-430-F, WZPN-130, WZPN-230, WZPN-330, WZPN-430, WZPN 2-130, WZPN 2-230, WZPN 2-330, WZPN 2-430, WZPN -131, WZPN-231, WZPN-331, WZPN-431, WZPN 2-131, WZPN 2-231, WZPN 2-331, WZPN 2-431, WZPM-631, WZPM2-631, WZCN-130, WZCN-230, WZCN-330, WZCN-430, WZP-2328, WZP2-2328, WZP-93C1, WZP2-93C1, WZP-93C2, WZP2-93C2, WZP-633, WZP2-633, WZP-634, WZP2-634, WZP-4318, WZP2-4318, WZP-731, WZP2-731, WZP-120, WZP-121,
套管式热电偶，作为温度测量和控制的传感器与显示仪表配套，以直接测量和控制生产过程中气体，液体和蒸气的温度。不仅用于发电厂管道测温，同时也用于其他工业部门的测温。
化工专用隔爆型热电偶WRCK-502，WRCK-522，WRCK-532，WRCK-592，WRCK-582，WRCK2-521，WRCK2-531，WRCK2-522，WRCK2-532，WREK-1313，WREK-1314，WREK-1315，WREK-1316，WREK-1323，WREK-1324，WREK-1325，WREK-1326，WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRFK-281A, WRFK-181A., WRCK-281A, WRCK-181A, WREK-281A, WREK-181A, WRNK-281A, WRNK-181A, WZPM-202U, WZPM-201U, WRNM-202A, WZPM-101U, WZPM-102U, 化工专用热电偶WREM-102A, WRNM-201A, WRNM-203A WRNN-436, WRNN2-436, WRN-420B, WRN-430B, WRN2-420B, WRN2-430B, WRE-420B, WRE-430B, WRE2-420B, WRE2-430B, WRN-420C, WRN-430C, WRN2-420C, WRN2-430C, WRE-420C, WRE-430C, WRE2-420C, WRE2-430C, WRN-420D, WRN-430D, WRN2-420D, WRN2-430D, WRE-420D, WRE-430D, WRE2-420D, 可动式热电偶WRE2-430D, WZP-420B, WZP-421B, WZP-430B, WZP-431B, WZP2-420B, WZP2-421B, WZP2-430B, WZP2-431B, WZC-420B, WZC-430B, WZP-420C, WZP-421C, WZP-430C, WZP-431C, WZP2-420C, WZP2-421C, WZP2-430C, WZP2-431C, WZC-420C, WZC-430C, WZP-420D, WZP-421D, WZP-430D, WZP-431D, WZP2-420D, WZP2-421D, WZP2-430D, WZP2-431D, WZC-420D, WZC-430D.WRR-433Q, WRNR-93UC, WRER-93UC, WRNR2-93UC, WRER2-93UC, WRNT-001, WRNT2-001, 耐腐、耐磨热电偶WRET-001, WRET2-001, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRER-13, WRNR2-13. WRER2-13. WRNR-14, WRER-14, WRNR2-14, WRER2-14, WRNR-15, WRER-15, WRNR2-15, WRER2-15, WRN-15A, WRER-15A, WRNR2-15A, WRER2-15A, WRNT-31, WRET-31, WRNT2-31, WRET2-31, 套管式热电偶WRNK-841n﹡D, WRNK-842n﹡D, WREK-841n﹡D. WREK-842n﹡D, WRNK-841n﹡I, WRNK-842n﹡I, WREK-841n﹡I. WREK-842n﹡I, WREK-842n﹡I, WRN-240A, WRN2-240A, WRE-240A, WRE2-240A, WRN-640A,WRN2-640A,WRE-640A,WRE2-640A, WRN-440A,WRN2-440A, WRE-440A,WRE2-440A, WRNK-240, WRNK2-240, WREK-240, WREK2-240, WRNK-440, WRNK2-440, WREK-440, WREK2-440, WRN-74O,WRN2-74O, WRN-74O, WRN2-74O, WRNR-15, WRNR2-15, WRNR-15A, WRNR2-15A, WRER-15, WRER2-15, WRER-15A, WRER215A, WRN-624, WRN-625, WRE-624, WRE-625, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRNR2-13, WRER-13, WRER2-13,WRNR-14, WRNR2-14, WRER14, WRER2-14, WRN-631, WRN2-631, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRN-130, WRN2-130, WRN-230, WRN2-230, WRN-330, WRN2-330, WRN2-430, WRN-430, WRE-130, WRE2-130, 热电偶 WRE-230, WRE2-230, WRE-330, WRE2-330, WRE-430, WRE2-430, WREK-1313, WREK-1314, WREK-1315, WREK-1316, WREK-1323, WREK-1324, WREK-1325, WREK-1326, WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRN-001, WRE-001. WRN-002, WRE-002, WRN-235T, WRN2-235T, WRE-235T, WRE2-235T, WRN-130-F, WRN-230-F, WRN-330-F, WRN-430-F, WRN2-130-F, WRN2-330-F, WRN2-430-F, WRE-130-F, WRE-230-F, WRE-330-F, WRE-430-F,WRE2-130-F,WRE2-230-F,WRE2-330-F.WRE2-430-F.WRN-130(*),WRN-230(*),WN-330(*),WN-430(*).,WRNN2-130(*),WNN2-230(*),WRNN2-330(*),WNN2-430(*),WREN-130, WREN-230, WREN-330, WREN-430, WREN2-130, WREN2-230, WREN2-330, WREN2-430, WRNN-530(*),WRNN2-530(*),WREN-530,WREN2-530,WRNN-631(*),WRNN2-631(*),WREN-631, WREN2-631, WRN-12B, WRE-12B, WRN2-12B, 装配式热电偶WRE2-12B, WRN-13B, WRE-13B, WRN2-13B, WRE2-13B, WRN-14B, WRE-14B, WRN2-14B, WRE2-14B, WRN-15B, WRE-15B, WRN2-15B, WRE2-15B, WRN-15AB, WRE-15AB, WRN2-15AB, WRE2-15AB, WRN-4318, WRE-4318,,WN2-4318, WRE2-4318, WRN-43C, WRE-43C, WRN2-43C, WRE2-43C, WRR-120, WRR-121, WRR2-120, WRR2-121, WRP-120, WRP-121, WRP2-120,,
|
