【产品中文介绍】

WZP2-0110装配式铂电阻是一款基于进口高精度铂电阻元件设计的工业级温度测量传感器，专为复杂工况环境下的稳定性能表现而开发。该产品采用模块化装配结构，在确保测量精度的同时，显著提升了安装维护效率，适用于石油化工、电力能源、机械制造等领域的温度监测需求。

核心元件选用国际优质铂电阻材料，通过特殊封装工艺实现-200℃～+500℃宽量程覆盖，长期测量漂移率低于0.1%/年。传感器头部采用316L不锈钢护套与氧化铝陶瓷绝缘体组合结构，具备IP65防护等级，可有效抵御震动、腐蚀性介质及温变冲击。标准化螺纹接口支持M12×1.5至G1/2多种规格定制，便于快速接入现有设备系统。

产品优势体现在三方面：其一，进口铂电阻芯片确保基础测温精度达到±(0.15+0.002|t|)℃，优于常规工业级要求；其二，独创的应力释放结构设计缓解了机械安装导致的敏感元件形变问题；其三，全焊接密封工艺使产品在10MPa压力环境下仍保持可靠密封性。典型应用场景包括反应釜温度连锁控制、输油管线温度监测、发电机组轴承温度保护等。

我们通过优化供应链管理和规模化生产，使该型号在同等性能进口产品中具有显著价格优势，建议用户根据具体工况参数选择适配型号。专业技术团队可提供选型指导、安装调试支持及全生命周期维护建议，帮助用户实现测温系统的高性价比配置。

【Product Introduction in English】

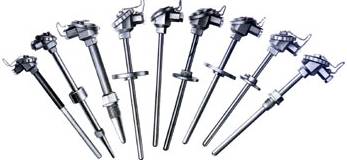

The WZP2-0110 Assembled Platinum Resistance Thermometer is an industrial-grade temperature sensing device incorporating imported platinum sensing elements, engineered to deliver reliable performance in demanding operational environments. Featuring a modular assembly design, this product combines measurement accuracy with enhanced installation efficiency, making it ideal for temperature monitoring applications across petrochemical, power generation, and industrial manufacturing sectors.

At its core lies precision platinum resistance material sourced from global quality suppliers, encapsulated through specialized processes to achieve an extended measurement range of -200℃ to +500℃ with long-term stability of less than 0.1% annual drift. The probe integrates 316L stainless steel sheath and alumina ceramic insulation, providing IP65-rated protection against mechanical vibration, corrosive media, and thermal shock. Standardized threaded connections (M12×1.5 to G1/2 customizable) ensure compatibility with most industrial equipment interfaces.

Key advantages include: 1) Imported platinum chip guaranteeing baseline accuracy of ±(0.15+0.002|t|)℃, surpassing general industrial requirements; 2) Proprietary stress-relief structure minimizing measurement deviation caused by mechanical mounting stresses; 3) Fully welded hermetic sealing maintaining integrity under 10MPa pressure. Typical applications encompass reactor temperature interlock systems, pipeline thermal monitoring, and power plant bearing protection.

Through optimized supply chain management and volume production, this model achieves competitive pricing while maintaining performance parity with international equivalents. Our technical support team provides comprehensive services including specification matching, installation guidance, and lifecycle maintenance consultation, assisting clients in building cost-effective temperature measurement solutions tailored to specific operational requirements.
