WZP2-3312A装配式铂电阻产品介绍（中英文）
中文版
WZP2-3312A装配式铂电阻是基于国际先进技术打造的高精度温度传感设备，专为工业过程控制领域的温度测量需求设计。本产品核心元件采用进口铂电阻材料，结合精密制造工艺，确保温度信号采集的稳定性和长期可靠性。
结构设计与性能优势
- 核心元件选用高纯度铂丝绕制，线性度优异，有效降低温度漂移现象，长期测量重复性误差小于±0.1%；
- 双层防护结构设计，采用316L不锈钢外壳与氧化铝绝缘填料，可耐受-200℃至+600℃宽温域环境；
- 全密封焊接工艺使产品达到IP67防护等级，有效抵御粉尘、潮气及弱腐蚀性介质；
- 模块化装配设计支持多种安装方式（法兰/螺纹/卡套），适配DN15-DN300多种管道尺寸；
- 动态响应时间控制在0.5-8秒区间（视保护管规格而定），满足快速温度变化场景的监测需求。
应用领域
本产品广泛应用于石油化工装置的温度联锁系统、制药设备灭菌温度监控、食品加工热力管网检测、电力机组热力系统监测等场景。特别适用于存在机械振动、介质冲刷或温变频繁的工业环境。
服务支持
提供定制化探头长度（50mm-2000mm可选）、输出信号类型（二线制/三线制/四线制）以及特殊接口规格的灵活配置方案。专业技术团队可根据现场工况提供选型指导与安装建议，确保测量系统的最佳适配性。
English Version

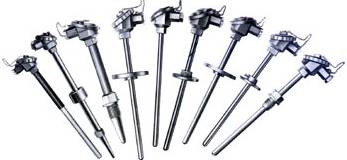

WZP2-3312A Assembled Platinum Resistance Thermometer Product Introduction
The WZP2-3312A assembled platinum resistance thermometer is a high-precision temperature sensing device developed with international advanced technologies, specifically designed for industrial process control applications. Utilizing imported platinum resistance elements and precision manufacturing processes, this product ensures stable temperature signal acquisition and long-term operational reliability.
Structural Design & Performance Features
- Core element employs high-purity platinum wire winding, delivering excellent linearity and minimizing temperature drift with long-term repeatability error below ±0.1%;
- Dual-layer protective structure with 316L stainless steel housing and alumina insulation filler, operating reliably across -200℃ to +600℃ temperature range;
- Hermetic welding technology achieves IP67 protection rating, effectively resisting dust, moisture, and weak corrosive media;
- Modular assembly design supports multiple installation methods (flange/threaded/ferrule) compatible with DN15-DN300 pipeline dimensions;
- Dynamic response time controlled within 0.5-8 seconds (depending on protective tube specifications), suitable for rapid temperature fluctuation monitoring.
Application Fields
Widely implemented in petrochemical plant temperature interlock systems, pharmaceutical equipment sterilization monitoring, food processing thermal network detection, and power plant thermal system supervision. Particularly effective in industrial environments with mechanical vibration, medium erosion, or frequent temperature variations.
Service Support
Customizable probe lengths (50mm-2000mm optional), output signal types (2-wire/3-wire/4-wire), and special interface specifications available. Professional technical team provides selection guidance and installation recommendations based on field conditions to ensure optimal system compatibility.
