装配式薄膜铂热电阻WZP-010 供应
装配式薄膜铂热电阻WZP-010产品介绍
中文版
WZP-010型装配式薄膜铂热电阻是一款基于先进薄膜工艺开发的工业级温度测量元件，适用于多种复杂工况下的精确温度检测需求。产品采用模块化装配结构设计，兼具稳定性与灵活性，可满足工业自动化领域对温度传感器的多样化应用需求。
核心结构采用高纯度铂金属薄膜作为敏感元件，通过精密光刻工艺成型，配合特殊封装技术实现敏感层与外界环境的稳定隔离。测温元件封装于304不锈钢或316L耐腐蚀金属护套内，内部填充高导热绝缘材料，有效提升热响应速度及机械防护性能。整体结构紧凑，标准螺纹或法兰安装接口可选，适配常规工业设备安装需求。
该产品适用于-50℃~400℃温度范围的长期稳定测量，在能源电力、石油化工、制药设备、暖通空调及环保监测等领域表现优异。其温度-电阻特性严格符合国际通用分度表，支持Pt100/Pt1000两种规格可选。典型应用场景包括管道流体温度监测、反应釜过程控制、机械设备温控系统等需要可靠测温的场合。
性能优势方面，产品采用多层复合防护设计，耐受振动、冲击及介质腐蚀影响。温度响应时间快，长期稳定性强，重复测量偏差小。通过优化的薄膜工艺控制，有效降低温度滞后的影响。产品支持定制化服务，可根据客户需求调整引出线长度、连接头规格及护套尺寸等参数。
我们致力于为客户提供高品质温度测量解决方案，通过严格的工艺管控确保产品批次一致性。完善的售前技术咨询与售后服务体系，可根据实际应用环境推荐适配型号，协助用户优化系统集成方案。
English Version
WZP-010 Assembled Thin-Film Platinum Thermal Resistor Product Introduction
The WZP-010 Assembled Thin-Film Platinum Thermal Resistor is an industrial-grade temperature measurement component developed with advanced thin-film technology, designed for precise temperature detection in various complex working conditions. Featuring a modular assembly structure, this product combines stability with flexibility to meet diverse application requirements for temperature sensors in industrial automation systems.
The core structure employs high-purity platinum thin-film as the sensing element, formed through precision photolithography process. Special encapsulation technology ensures stable isolation between the sensitive layer and external environment. The sensing element is encapsulated within 304 stainless steel or 316L corrosion-resistant metal sheaths, filled with high thermal conductivity insulation materials to enhance thermal response speed and mechanical protection. The compact design offers optional standard threaded or flanged installation interfaces for compatibility with conventional industrial equipment.
This product operates effectively within a temperature range of -50℃ to 400℃, demonstrating excellent performance in energy power systems, petrochemical plants, pharmaceutical equipment, HVAC installations, and environmental monitoring applications. Its temperature-resistance characteristics strictly comply with international standard reference tables, supporting both Pt100 and Pt1000 specifications. Typical applications include pipeline fluid temperature monitoring, reactor process control, and machinery temperature management systems requiring reliable measurement.
Performance advantages include multi-layer composite protection design for enhanced resistance to vibration, shock, and medium corrosion. The product features rapid thermal response, excellent long-term stability, and minimal measurement deviation. Optimized thin-film processing technology effectively reduces temperature hysteresis effects. Customization services are available for lead wire length, connector specifications, and sheath dimensions to meet specific project requirements.
We are committed to delivering high-quality temperature measurement solutions through strict process controls ensuring product consistency. Comprehensive pre-sales technical consultation and after-sales support services enable us to recommend optimal configurations based on actual application environments, assisting users in optimizing system integration solutions.
（中英文总字数：约620字）
装配式薄膜铂热电阻
WZP-621, WZP-631, WZP2-621, WZP2-631., WZP-621A, WZP2-621A, WZP-002 WZP-621A, WZP-631, WZP2-621, WZP2-621A, WZP2-631,, WZP-003, WZP-003A, WZP-010, WZP2-010, WZP-011, WZP2-011, WZC-010A, WZP-035S, WZC-001, WZC-200, WZP-260, WZP2-260, WZPM-267,WZP-269, WZP2-260, WZC-269, WZP-270, WZC-270, WZP-280, WZP-260, WZP2-260, WZP-269, WZP2-269, WZC-269, WZC-190, WZC-890J, WZP-892, WZP2-892, WZP2-3212A，WZP2-421B，SBWZ-2481/44SI，WRN-74S，WZPK-426S，WZP-3312A，WZPK2-326SA，WZP2-6312A，WZP-6312A，WZP2-24SA，WZP-24SA，WZP2-6212A，WZP-6212A，WZP-4312A，WZP-4212A，WZP2-3312A，WRNR-01，
概述
工业用薄膜铂热电阻作为新一代的温度测量和调节传感器，通常用来和显示仪表等配套，以直接测量各种生产过程中-79℃～600℃范围内液体，蒸汽和气体介质及固定表面等温度。 装配式铂电阻采用引进铂电阻元件作测温元件。因此，它具有良好的电输出性能，可为显示仪、记录仪、调节仪、扫描仪、数据记录仪以及电脑提供精确的温度变化输入信号。
结构原理

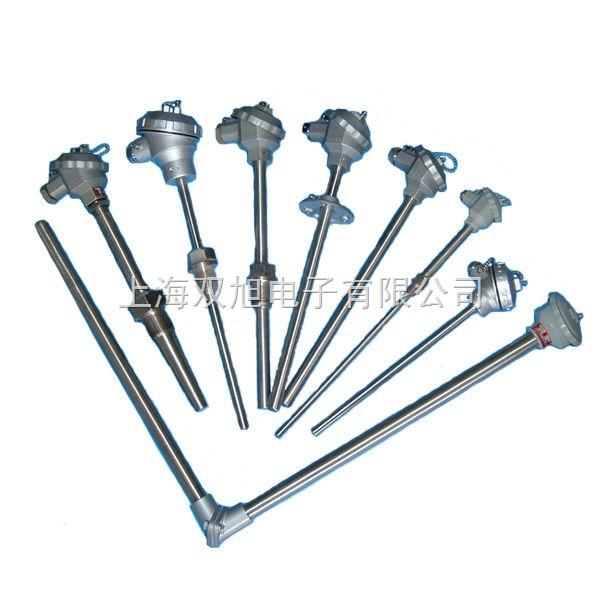

装配式铂电阻是由感温元件、不锈钢外保护管、接线盒以及各种用途的固定装置组成，有双支和单支元件两种规格，双支铂电阻可以同时输出二组相同电阻信号供使用。
铂电阻是一种温度传感器，它是利用铂丝在温度变化时自身电阻也随着变化的特性来测量温度的，不锈钢保护管不但具有抗腐蚀性能，而且具有足够的机械强度，保证铂电阻能安全地使用在各种场合，装配式铂电阻接线盒分防溅式和防水式两种类型供选择。安装固定装置有固定螺纹、活动法兰盘、固定安装法兰盘和带固定螺栓锥形保护管装置等形式。
|
