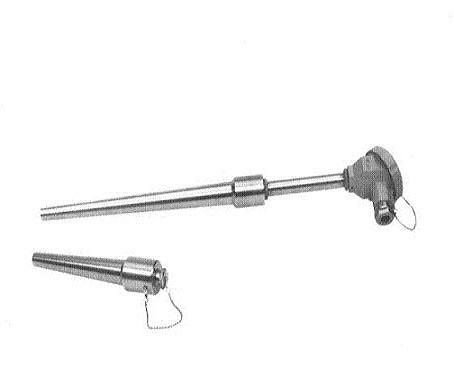

可动式热电偶热电阻WRNR-13 厂家
产品概述
WRNR-13可动式热电偶热电阻是一种专为工业温度测量设计的高性能传感器，特别适用于电站、化工等高温高压环境。该产品采用先进制造工艺，上节带可动式固定螺纹结构，可在360°方向灵活安装，维修时无需卸压停机，显著提升了设备维护效率和使用便捷性。其测温范围覆盖0-800℃，满足不同工况需求。24
结构特点
该产品采用分体式设计，热套保护管与电偶可分离，用户可将热套焊接或机械固定在设备上后安装电偶即可工作。保护管材质选用0Cr18Ni12MO2Ti不锈钢，具有优异的耐腐蚀和抗压性能。感温元件置入长度提供50mm至300mm多种规格，可根据实际测量深度灵活选择。独特的可动螺纹结构解决了传统热电偶安装角度受限的问题。414
技术性能
WRNR-13在常温下绝缘电阻值不小于100MΩ，能够稳定传输温度信号。采用镍铬-镍硅热电偶元件，具有良好的热稳定性和测量精度。产品设计参考了工业应用经验，在500V直流电压测试条件下仍保持可靠性能。特别优化了在蒸汽管道及锅炉环境下的使用表现，能够承受29.4MPa的工作压力。619
应用领域
本产品广泛应用于电力行业的汽轮机、锅炉系统，石油化工装置的温度监控，以及各类需要高温高压测量的工业场景。其结构形式特别适合需要频繁维护或更换的工况，解决了传统热电偶维修时必须停机的痛点。产品通过优化热套与电偶的配合方式，显著延长了保护管的使用寿命。89
使用优势
维修人员可轻松拉出上节及元件部分进行操作，大幅降低了维护难度和时间成本。采用标准化接口设计，兼容主流显示仪表和控制系统。产品经过严格测试，在高温环境下仍能保持稳定的热电势输出，为生产过程的温度控制提供可靠数据支持。特殊的结构设计使其在介质流速达100m/s时仍能正常工作。715
Product Overview
The WRNR-13 movable thermocouple/resistance thermometer is designed for industrial temperature measurement in extreme conditions. Its innovative movable threaded connection allows 360-degree installation flexibility in power plants and chemical processing systems, eliminating downtime during maintenance. The product operates reliably within 0-800℃ range with robust stainless steel protection tube.46
Structural Features
Featuring a separable assembly design, the heat sleeve can be permanently welded while the sensing element remains replaceable. The rotating upper section with M20×1 thread enables versatile mounting orientations. Multiple insertion lengths (50-300mm) accommodate different measurement depths. The construction eliminates blind spots in cramped installation spaces.214
Technical Performance
The nickel-chromium/nickel-silicon thermocouple element ensures stable signal output even under 29.4MPa pressure. Excellent insulation resistance (>100MΩ) prevents signal leakage. Optimized for steam pipeline and boiler applications, it withstands fluid velocities up to 100m/s without performance degradation.919
Application Scenarios
Ideal for turbine temperature monitoring, reactor vessels, and other high-pressure systems requiring regular sensor maintenance. The design significantly reduces replacement time compared to conventional thermocouples. Compatible with most control systems through standardized output connections.815
Operational Benefits
Field technicians can safely extract the sensing assembly under pressure for inspection or replacement. The modular design extends service life by allowing independent replacement of wear components. Reliable performance in vibration-intensive environments makes it suitable for rotating equipment monitoring.714
