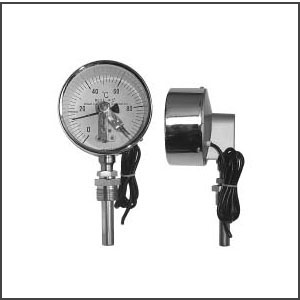

电接点双金属温度计WZPK-135U产品介绍（中英对照）

产品概述：
WZPK-135U型电接点双金属温度计采用复合传感技术与机械传动结构相结合的设计方案，可同时实现温度测量与接点控制双重功能。该产品通过双金属片的热形变效应驱动指针指示温度值，并配置可调节式接点装置，当温度达到预设阈值时自动触发开关信号，适用于工业现场的温度监测与过程控制。

产品特点：

1. 双功能集成设计
   集成温度显示与接点控制的双重功能，在实现精准温度指示的同时，可对设备进行温度联锁保护或报警提示，减少现场仪表配置数量。

2. 机械结构优化
   采用全密封不锈钢表壳设计，配合防震轴承系统和IP65防护等级，有效抵御潮湿、粉尘及机械振动影响。指针系统经精密校准，确保-40℃至500℃量程范围内测量误差不超过±1.5%FS。

3. 灵活参数设置
   配置可旋转表头与多向安装接口，支持轴向/径向/万向等多种安装方式。接点设定值可通过专用调节旋钮便捷设定，动作差值控制在量程的2%以内。

4. 安全控制界面
   内置双组独立电气接点模块，每组接点最大承载能力达220V AC/3A，采用银合金触点材料增强导电稳定性。接点动作与表盘指示同步，便于现场操作人员实时观测控制状态。

应用领域：
该产品适用于石油化工装置、热力管网系统、食品加工设备、制药生产线等需要温度监控与设备联锁的工业场景，特别适合在振动频繁或环境复杂的工况下使用。

维护说明：
建议定期检查表壳密封件完整性，每12个月进行指针归零校准。接点机构清洁维护时应使用无水乙醇擦拭触点表面，避免使用腐蚀性清洁剂。

Bimetallic Thermometer with Electrical Contact WZPK-135U Product Introduction

Product Overview:
The WZPK-135U bimetallic thermometer with electrical contact combines composite sensing technology with mechanical transmission structure, delivering both temperature measurement and contact control functions. Utilizing the thermal deformation effect of bimetallic strips to drive the pointer for temperature indication, this device features adjustable contact mechanisms that automatically trigger switch signals when reaching preset temperature thresholds, making it suitable for industrial temperature monitoring and process control applications.

Key Features:

1. Dual-Function Integration
   Integrates temperature display with contact control capabilities, providing precise temperature indication while enabling equipment interlock protection or alarm functions, effectively reducing field instrument configurations.

2. Enhanced Mechanical Design
   Constructed with fully sealed stainless steel casing and vibration-resistant bearing system, achieving IP65 protection level. The optimized pointer mechanism ensures measurement accuracy within ±1.5%FS across the -40℃ to 500℃ range under various environmental conditions.

3. Flexible Configuration
   Equipped with rotatable head and multi-directional installation interfaces, supporting axial/radial/universal mounting orientations. Contact settings can be easily adjusted via dedicated knobs with action differential controlled within 2% of span.

4. Reliable Control Interface
   Incorporates dual independent electrical contact modules with silver alloy contacts, capable of handling 220V AC/3A loads. Synchronized contact action and dial indication provide real-time operational feedback for field personnel.

Application Scenarios:
Ideal for temperature monitoring and equipment interlock requirements in petroleum processing units, thermal pipeline networks, food processing equipment, pharmaceutical production lines, and other industrial environments with frequent vibration or complex operating conditions.

Maintenance Guidance:
Regularly inspect casing seal integrity and perform zero-point calibration every 12 months. Use anhydrous ethanol for contact surface cleaning during maintenance, avoiding corrosive cleaning agents.
