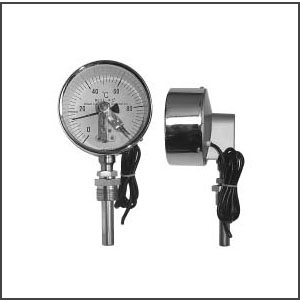

电接点双金属温度计WZPK-503S 价格
产品概述
电接点双金属温度计WZPK-503S是一款广泛应用于工业现场温度监测与控制的精密仪表，采用高品质材料和先进工艺制造而成。该产品通过双金属片的热膨胀原理实现温度测量，具有结构紧凑、响应迅速、性能稳定等特点，能够可靠地应用于石油、化工、电力等行业的液体、蒸汽及气体介质温度测量场景。产品设计充分考虑了工业环境的复杂需求，具备良好的抗震性和耐腐蚀性，确保在各类工况下长期稳定运行。1523
核心特点
电接点双金属温度计WZPK-503S采用螺旋状双金属感温元件，能够快速感应温度变化并通过指针精确显示数值。其机械触点装置可在温度达到预设阈值时自动触发电路通断，实现温度控制或报警功能。产品配备不锈钢保护套管，内部填充高密度绝缘材料，既保证了机械强度又增强了抗污染能力。该型号温度计支持-200℃至500℃的宽范围测温，表盘直径提供多种规格选择，可根据现场需求灵活配置安装螺纹尺寸和探杆长度。817
应用场景
This bimetallic thermometer with electrical contact is particularly suitable for temperature monitoring in pipeline systems, reaction vessels and power equipment. Its compact design and vibration resistance make it ideal for installation in confined spaces or high-vibration environments like compressor stations and pumping units. The product is commonly applied in petrochemical plants for crude oil heating systems, in pharmaceutical factories for sterilization process control, and in food processing facilities for pasteurization temperature supervision. The corrosion-resistant housing ensures long-term reliability even when exposed to harsh industrial atmospheres. 228
技术优势
The WZPK-503S features excellent thermal response characteristics with typical reaction time under 15 seconds, providing real-time temperature feedback for process control. The hermetically sealed casing achieves IP65 protection level, effectively preventing moisture and dust ingress. With its durable stainless steel construction and precision-machined components, this temperature instrument maintains measurement accuracy throughout extended service periods. The clear dial display with anti-parallax design facilitates easy reading from various angles, while the adjustable probe length (available from 50mm to 2000mm) allows customization for different installation requirements. 1023
产品差异化
Compared with conventional thermometers, this electrical contact version adds reliable switching functionality without requiring external power supply. The snap-action contacts provide clean switching signals to control circuits, eliminating contact bounce that could cause erratic operation. Manufacturers have optimized the mechanical structure to minimize hysteresis, ensuring repeatable switching accuracy within ±1.5% of span. For maintenance convenience, some models feature a removable core design that enables sensor replacement without process shutdown. These thoughtful engineering details make WZPK-503S a cost-effective solution for industrial temperature regulation. 317
服务保障
We provide comprehensive technical support for this product series, including installation guidance and operation consulting. The temperature instruments undergo rigorous quality verification procedures during manufacturing to ensure stable performance. With standardized production processes and strict material selection criteria, our bimetallic thermometers deliver consistent quality across all batches. Customers can choose from various connection types including thread, flange or socket weld options to match their existing piping configurations. 228
电接点双金属温度计
WZPK-426U，WZPK-166U，WZPK-525U，WZPK-165U，WZPK-425U，WZPK-424U，WZPK-326U，WZPK-323U，WZPK-226U，WZPK-224U，WZPK-223U，WZPK-233U，WZPK-405U，WZPK-135U，WZPK-136U，WZP-104U，WZPK-333U，WZPK-103U，WZPK-336U，WZPK-263U，WZPK-335U，WZPK-363U，WZPK-465U，WZPK-464U，WZPK-266U，WZPK-565U，WZPK-276U，WZPK-375U，WZPK-476U，WZPK2-475SA，WZPK-474S，WZPK-133U，WZPK-473S，WZPK2-376SA，WZPK-506U，WZPK-504U，WZPK-505U，WZPK-374S，WZPK-375S，WZPK2-375SA，WZPK-376S，WZPK2-276SA，WZPK-276S，WZPK2-275SA，WZPK-503S，WZPK2-406SA，WZPK2-405SA，WZPK-406S，WZPK-4055，WZPK-404S，WZPK-304U，WZPK-206U，WZPK-205U，WZPK-203U，WZPK2-305SA，WZPK-306S，WZPK-305S，WZPK-303S，WZPK2-205SA，WZPK-26S，WZPK-205S，WZPK-204S，WZPK-203S，WZPK-106SA，WZP-430B，WZPK-2312U，WZPK2-176SA，WZPK2-175SA，WZPK-176S，WZPK-163S，WZPK2-466SA，WZPK2-465SA，WZPK-465S，WZPK2-366SA，WZPK2-365SA，WZPK-366S，WZPK-364S，WZPK-363S，WZPK2-266SA，WZPK-266S，WZPK-265S，WZPK-264S，WZP-166S，WZPK-263S，WZPK-165S
电接点双金属温度计，WSSX-416，WSSX-406，WSSX-485，WSSX-415，WSSX-405，WSSX-484，WSSX-414，WSSX-404，WSSX-483，WSSX-413，WSSX-403，WSSX-482，WZPK-124U，WZPK-406U，WZPK-503U，WZP-3212U，WZP-270U，WRNN2-436，WRP-130，WRP2-130，WRP-131，WRP2-131，WRQ-130，WRQ2-130，WRQ-131，WRQ2-131，WRR-130，WRR2-130，WZPK-336SA，WZPK2-335SA，WZPK-236SA，WZPK2-235SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-236S，WZPK-235S, WZPK-234S, WZPK-233S, WZPK2-136S, WZPK2-135SA, WZPK-136S, WZPK-135S, WZPK-134S, WRNR-01, WRER2-14, WRNR2-14, WRER-14, WRER2-12, WRNR2-12, WRER-12, WRNR-12, WZP2-6312A, WZP-6312A, WZP2-631, WRN-624, WRNR2-01, SBWR-4170/440D
应用
电接点双金属温度计应用于生产现场对温度需自动控制和报警。直接测量各种生产过程中-80～500℃范围内体、蒸汽
和气体介质温度。
电接点双金属温度计的特点：
• 现场显示温度，直观方便；
• 具有自动切断电源和报警功能；
• 安全可靠，使用寿命长；
• 多种结构形式，可满足不同要求。
工作原理
电接点双金属温度计是利用温度变化时带动触点变化，当其与上下限触点或断开的同时，使电路中的继电器动作，从而自动控制及报警。
主要技术参数
• 产品执行标准：JB/T8803-1998 GB3836-83
• 标度盘公称直径：100
• 精度等级：（1.0），1.5
• 热响应时间：≤40S
• 防护等级：IP55
• 正常工作大气条件：温度-25～+55℃，相对湿度≤85%
• 设定点误差：设定点误差应不超过基本误差限的1.5倍。
• 切换差：切换差应不超过基本误差限的1.5倍。
• 切换重复性：切换重复性极限范围不大于基本误差限值的1/2。
|
