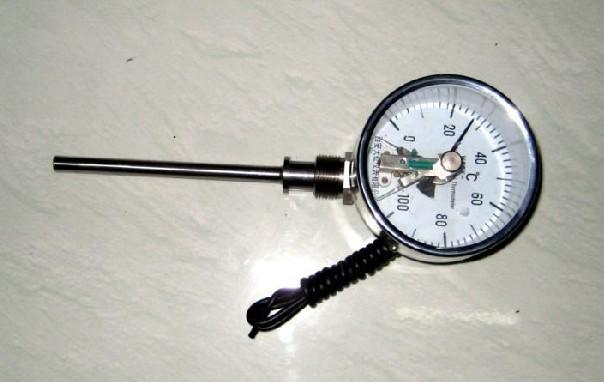

电接点双金属温度计WRQ-130 厂家
产品概述
电接点双金属温度计WRQ-130是一款专为工业温度监测与控制设计的精密仪表，适用于液体、蒸汽及气体介质的温度测量。该产品采用双金属片作为核心感温元件，通过温度变化引起的机械形变驱动指针指示温度，并联动电接点实现自动控制或报警功能。其测量范围覆盖-80℃至+500℃，可满足多种工业场景的需求。仪表结构坚固，表壳采用防腐蚀材质，确保在恶劣环境下长期稳定工作。设计上兼顾直观性与功能性，支持轴向、径向或万向安装，适配不同空间布局。1512
核心特点
WRQ-130电接点双金属温度计具备高精度与快速响应特性，温度指示误差控制在量程的±1.5%以内，热响应时间不超过40秒。其电接点装置采用耐磨材料，支持上下限触点调节，可通过继电器实现电路通断，适用于自动化控制系统。产品提供多种表盘直径（60mm、100mm、150mm）和安装方式（螺纹、法兰、卡套等），便于用户根据实际需求选择。此外，仪表防护等级达到IP55，能有效抵御灰尘和水溅，延长使用寿命。101620
应用领域
该温度计广泛应用于石油化工、电力、食品制药及环保等行业。在石化领域，用于反应釜、管道等设备的温度监控；在电力系统中，可监测锅炉蒸汽温度；食品制药行业则依赖其确保生产流程的温控安全。其耐腐蚀和抗振动设计也适用于船舶、机械制造等复杂环境。通过实时温度显示与自动报警功能，WRQ-130显著提升了工业生产的可靠性与效率。2622
Product Overview
The WRQ-130 Bimetallic Thermometer with Electrical Contact is a precision instrument designed for industrial temperature monitoring and control, suitable for measuring liquids, steam, and gases. Its core sensing element consists of a bimetallic strip that mechanically deforms with temperature changes, driving a pointer to indicate values while activating electrical contacts for automated control or alarms. With a measurement range of -80°C to +500°C, it adapts to diverse industrial requirements. The robust housing, crafted from corrosion-resistant materials, ensures durability in harsh environments. The design combines clarity with versatility, offering axial, radial, or adjustable mounting options for flexible installation.11226
Key Features
The WRQ-130 delivers high accuracy (±1.5% of span) and rapid response (≤40s). Its electrical contacts, made of wear-resistant materials, allow adjustable upper/lower limits to trigger relays for circuit control. Available in multiple dial sizes (60/100/150mm) and installation configurations (threaded, flanged, or sleeve-mounted), it caters to varied operational needs. The IP55-rated enclosure provides dust and water splash resistance, enhancing longevity. The intuitive display and reliable switching mechanism make it ideal for automated systems.51620
Applications
This thermometer is widely used in petrochemicals, power generation, food/pharmaceutical production, and environmental monitoring. In refineries, it tracks reactor and pipeline temperatures; in power plants, it safeguards boiler operations; in food processing, it ensures compliance with thermal safety standards. Its vibration-resistant and anti-corrosion design also suits marine and heavy machinery applications. By integrating real-time readings with alarm functions, the WRQ-130 significantly boosts operational safety and productivity.2622
电接点双金属温度计
WZPK-426U，WZPK-166U，WZPK-525U，WZPK-165U，WZPK-425U，WZPK-424U，WZPK-326U，WZPK-323U，WZPK-226U，WZPK-224U，WZPK-223U，WZPK-233U，WZPK-405U，WZPK-135U，WZPK-136U，WZP-104U，WZPK-333U，WZPK-103U，WZPK-336U，WZPK-263U，WZPK-335U，WZPK-363U，WZPK-465U，WZPK-464U，WZPK-266U，WZPK-565U，WZPK-276U，WZPK-375U，WZPK-476U，WZPK2-475SA，WZPK-474S，WZPK-133U，WZPK-473S，WZPK2-376SA，WZPK-506U，WZPK-504U，WZPK-505U，WZPK-374S，WZPK-375S，WZPK2-375SA，WZPK-376S，WZPK2-276SA，WZPK-276S，WZPK2-275SA，WZPK-503S，WZPK2-406SA，WZPK2-405SA，WZPK-406S，WZPK-4055，WZPK-404S，WZPK-304U，WZPK-206U，WZPK-205U，WZPK-203U，WZPK2-305SA，WZPK-306S，WZPK-305S，WZPK-303S，WZPK2-205SA，WZPK-26S，WZPK-205S，WZPK-204S，WZPK-203S，WZPK-106SA，WZP-430B，WZPK-2312U，WZPK2-176SA，WZPK2-175SA，WZPK-176S，WZPK-163S，WZPK2-466SA，WZPK2-465SA，WZPK-465S，WZPK2-366SA，WZPK2-365SA，WZPK-366S，WZPK-364S，WZPK-363S，WZPK2-266SA，WZPK-266S，WZPK-265S，WZPK-264S，WZP-166S，WZPK-263S，WZPK-165S
电接点双金属温度计，WSSX-416，WSSX-406，WSSX-485，WSSX-415，WSSX-405，WSSX-484，WSSX-414，WSSX-404，WSSX-483，WSSX-413，WSSX-403，WSSX-482，WZPK-124U，WZPK-406U，WZPK-503U，WZP-3212U，WZP-270U，WRNN2-436，WRP-130，WRP2-130，WRP-131，WRP2-131，WRQ-130，WRQ2-130，WRQ-131，WRQ2-131，WRR-130，WRR2-130，WZPK-336SA，WZPK2-335SA，WZPK-236SA，WZPK2-235SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-236S，WZPK-235S, WZPK-234S, WZPK-233S, WZPK2-136S, WZPK2-135SA, WZPK-136S, WZPK-135S, WZPK-134S, WRNR-01, WRER2-14, WRNR2-14, WRER-14, WRER2-12, WRNR2-12, WRER-12, WRNR-12, WZP2-6312A, WZP-6312A, WZP2-631, WRN-624, WRNR2-01, SBWR-4170/440D
应用
电接点双金属温度计应用于生产现场对温度需自动控制和报警。直接测量各种生产过程中-80～500℃范围内体、蒸汽
和气体介质温度。
电接点双金属温度计的特点：
• 现场显示温度，直观方便；
• 具有自动切断电源和报警功能；
• 安全可靠，使用寿命长；
• 多种结构形式，可满足不同要求。
工作原理
电接点双金属温度计是利用温度变化时带动触点变化，当其与上下限触点或断开的同时，使电路中的继电器动作，从而自动控制及报警。
主要技术参数
• 产品执行标准：JB/T8803-1998 GB3836-83
• 标度盘公称直径：100
• 精度等级：（1.0），1.5
• 热响应时间：≤40S
• 防护等级：IP55
• 正常工作大气条件：温度-25～+55℃，相对湿度≤85%
• 设定点误差：设定点误差应不超过基本误差限的1.5倍。
• 切换差：切换差应不超过基本误差限的1.5倍。
• 切换重复性：切换重复性极限范围不大于基本误差限值的1/2。
|
