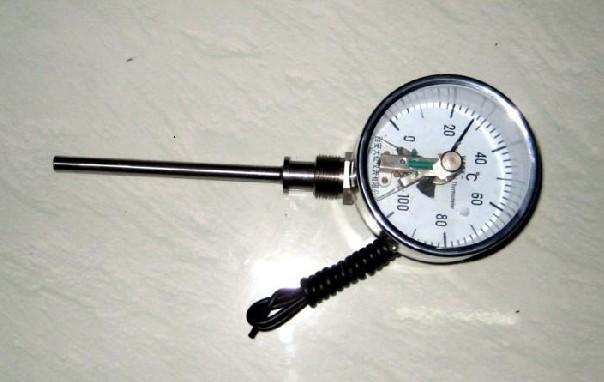

电接点双金属温度计WZPK-236S 价格
产品介绍
WZPK-236S电接点双金属温度计是一种广泛应用于工业生产现场的温度测量与控制设备。它能够直接测量生产过程中-80℃至500℃范围内的液体、蒸汽和气体介质的温度。
产品特点
-
直观显示：具备现场温度显示功能，读数清晰，便于操作人员实时监控温度变化。
-
自动控制与报警：当温度达到设定的上下限值时，温度计的电接点能够自动触发，切断电源或发出报警信号，确保生产过程的安全性。
-
耐用性强：结构坚固，抗震性能好，使用寿命长，能够在恶劣的工业环境中稳定运行。
-
多样化设计：提供多种结构形式，能够满足不同客户的需求。
技术参数
应用场景
WZPK-236S电接点双金属温度计适用于多种工业领域，包括但不限于化工、制药、食品加工、能源和机械制造等。它能够帮助用户实现对生产过程中温度的精确控制和自动化管理。
价格信息
WZPK-236S电接点双金属温度计的价格因具体配置和采购数量而异。一般来说，单个产品的价格在几百元人民币左右。具体价格需根据实际需求与供应商协商确定。
Product Introduction
The WZPK-236S Electric Contact Bimetallic Thermometer is a widely used temperature measurement and control device in industrial production. It can directly measure the temperature of liquids, steam, and gases within the range of -80℃ to 500℃.
Features
-
Intuitive Display: It features on-site temperature display, providing clear readings for operators to monitor temperature changes in real-time.
-
Automatic Control and Alarm: When the temperature reaches the preset upper or lower limit, the electric contact of the thermometer can automatically trigger, cut off the power supply, or send an alarm signal to ensure the safety of the production process.
-
Durability: The thermometer is designed with a robust structure and good anti-vibration performance, ensuring a long service life even in harsh industrial environments.
-
Diverse Design: It offers various structural forms to meet the needs of different customers.
Technical Parameters
-
Accuracy Class: Class 1.0 or 1.5.
-
Thermal Response Time: No more than 40 seconds.
-
Protection Rating: IP55, which effectively prevents dust and water splash.
-
Operating Environment: It can operate normally within the temperature range of -25℃ to +55℃, with a relative humidity not exceeding 85%.
Applications
The WZPK-236S Electric Contact Bimetallic Thermometer is suitable for a variety of industrial fields, including but not limited to chemical, pharmaceutical, food processing, energy, and mechanical manufacturing. It helps users achieve precise temperature control and automated management in production processes.
Price Information
The price of the WZPK-236S Electric Contact Bimetallic Thermometer varies depending on the specific configuration and purchase quantity. Generally, the price of a single unit is around several hundred yuan. The exact price should be determined through negotiation with the supplier based on actual needs.
电接点双金属温度计
WZPK-426U，WZPK-166U，WZPK-525U，WZPK-165U，WZPK-425U，WZPK-424U，WZPK-326U，WZPK-323U，WZPK-226U，WZPK-224U，WZPK-223U，WZPK-233U，WZPK-405U，WZPK-135U，WZPK-136U，WZP-104U，WZPK-333U，WZPK-103U，WZPK-336U，WZPK-263U，WZPK-335U，WZPK-363U，WZPK-465U，WZPK-464U，WZPK-266U，WZPK-565U，WZPK-276U，WZPK-375U，WZPK-476U，WZPK2-475SA，WZPK-474S，WZPK-133U，WZPK-473S，WZPK2-376SA，WZPK-506U，WZPK-504U，WZPK-505U，WZPK-374S，WZPK-375S，WZPK2-375SA，WZPK-376S，WZPK2-276SA，WZPK-276S，WZPK2-275SA，WZPK-503S，WZPK2-406SA，WZPK2-405SA，WZPK-406S，WZPK-4055，WZPK-404S，WZPK-304U，WZPK-206U，WZPK-205U，WZPK-203U，WZPK2-305SA，WZPK-306S，WZPK-305S，WZPK-303S，WZPK2-205SA，WZPK-26S，WZPK-205S，WZPK-204S，WZPK-203S，WZPK-106SA，WZP-430B，WZPK-2312U，WZPK2-176SA，WZPK2-175SA，WZPK-176S，WZPK-163S，WZPK2-466SA，WZPK2-465SA，WZPK-465S，WZPK2-366SA，WZPK2-365SA，WZPK-366S，WZPK-364S，WZPK-363S，WZPK2-266SA，WZPK-266S，WZPK-265S，WZPK-264S，WZP-166S，WZPK-263S，WZPK-165S
电接点双金属温度计，WSSX-416，WSSX-406，WSSX-485，WSSX-415，WSSX-405，WSSX-484，WSSX-414，WSSX-404，WSSX-483，WSSX-413，WSSX-403，WSSX-482，WZPK-124U，WZPK-406U，WZPK-503U，WZP-3212U，WZP-270U，WRNN2-436，WRP-130，WRP2-130，WRP-131，WRP2-131，WRQ-130，WRQ2-130，WRQ-131，WRQ2-131，WRR-130，WRR2-130，WZPK-336SA，WZPK2-335SA，WZPK-236SA，WZPK2-235SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-236S，WZPK-235S, WZPK-234S, WZPK-233S, WZPK2-136S, WZPK2-135SA, WZPK-136S, WZPK-135S, WZPK-134S, WRNR-01, WRER2-14, WRNR2-14, WRER-14, WRER2-12, WRNR2-12, WRER-12, WRNR-12, WZP2-6312A, WZP-6312A, WZP2-631, WRN-624, WRNR2-01, SBWR-4170/440D
应用
电接点双金属温度计应用于生产现场对温度需自动控制和报警。直接测量各种生产过程中-80～500℃范围内体、蒸汽
和气体介质温度。
电接点双金属温度计的特点：
• 现场显示温度，直观方便；
• 具有自动切断电源和报警功能；
• 安全可靠，使用寿命长；
• 多种结构形式，可满足不同要求。
工作原理
电接点双金属温度计是利用温度变化时带动触点变化，当其与上下限触点或断开的同时，使电路中的继电器动作，从而自动控制及报警。
主要技术参数
• 产品执行标准：JB/T8803-1998 GB3836-83
• 标度盘公称直径：100
• 精度等级：（1.0），1.5
• 热响应时间：≤40S
• 防护等级：IP55
• 正常工作大气条件：温度-25～+55℃，相对湿度≤85%
• 设定点误差：设定点误差应不超过基本误差限的1.5倍。
• 切换差：切换差应不超过基本误差限的1.5倍。
• 切换重复性：切换重复性极限范围不大于基本误差限值的1/2。
|
