热套式双金属温度计WSSX-413S 价格

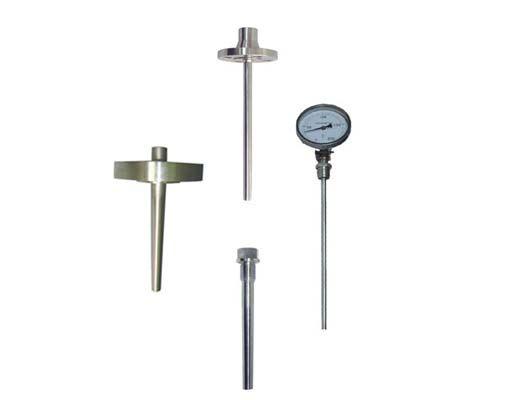

热套式双金属温度计 WSSX-413S
中文介绍
WSSX-413S 热套式双金属温度计是一种广泛应用于工业现场的温度测量仪表。它采用先进的双金属片感温元件，能够快速、准确地测量温度变化。这种温度计的测量范围广泛，通常适用于多种工业环境，如石油、化工、电力、冶金等行业，能够满足不同设备和工艺对温度监控的需求。
其外壳坚固耐用，防护等级高，能够有效抵御恶劣环境的影响，如灰尘、水汽等，确保温度计的稳定运行。同时，WSSX-413S 的设计注重实用性与便捷性，安装方式灵活多样，可直接安装在管道或设备上，便于用户根据实际需求进行选择和操作。此外，它还具备良好的抗震性能，能够在振动较大的场合稳定工作，为工业生产提供可靠的温度监测保障。
English Introduction
The WSSX-413S bimetallic thermometer with a protective sheath is a widely used temperature measuring instrument in industrial settings. It employs advanced bimetallic strip temperature sensing elements, which can quickly and accurately measure temperature variations. This thermometer has a broad measuring range and is suitable for various industrial environments, such as oil, chemical, power, and metallurgy industries. It can meet the temperature monitoring requirements of different equipment and processes.
The thermometer features a robust and durable housing with a high protection rating, effectively guarding against adverse environmental conditions like dust and moisture to ensure stable operation. Moreover, the WSSX-413S is designed with practicality and convenience in mind. It offers flexible installation options and can be directly mounted on pipelines or equipment, allowing users to choose and operate according to their actual needs. Additionally, it has good anti-vibration performance and can work stably in environments with significant vibrations, providing reliable temperature monitoring for industrial production.
热套式双金属温度计
WSSX-403L，WSSX-483L，WSS-483L，WSS-413L，WSS-413L，WSS-503L，WSS-403L，WSSX-483S，WSSX-413S，WSS-483S，WSS-513S，WSS-413S，WSS-503S，WSS-403S，WSSX-486
应用
热套式双金属温度计可配合各式安装套管，满足不同压力等级要求。可以直接测量各种生产过程中的 -80-+500 ℃范围内液体、蒸汽和气体介质以及固体表面测温。
主要技术参数
标度盘公称直径：100
精度等级：1.0、1.5
连接尺寸：M20x1.5、NPT1/2
热响应时间：≤40s
防护等级：IP55
注：
可配各式安装套管，热安装套管形式详见热安装套管；
保护管其余材质根据协议订货；
打﹡表示公称压力根据法兰压力等级而订。
选型须知
型号
精度等级
测温范围
安装固定形式
热安装套管形式
插入长度
例A：万向型双金属温度计，测温范围0-400℃。热安装套管TH01F，插入长度300mm.即为：WSS-483TH01F 0-400℃ l=300mm.
|
