双金属温度计WSS-481产品介绍（中英对照）
【中文版】

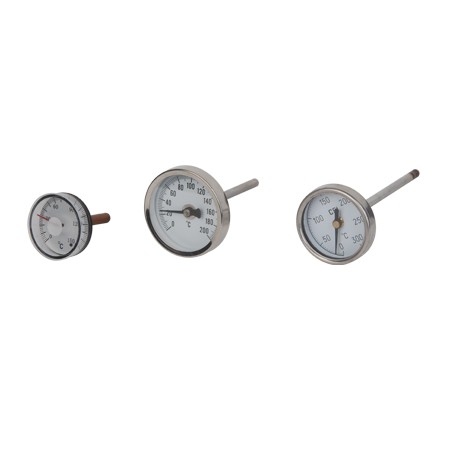

WSS-481系列双金属温度计是一款基于热膨胀原理设计的工业级温度测量仪表，适用于多种复杂工况环境下的温度监控需求。该产品采用双金属片作为核心感温元件，通过金属材料的热形变特性驱动指针显示实时温度值，具备直观可靠、维护成本低等特点。
核心优势方面，产品表壳采用优质不锈钢一体成型工艺，壳体表面经防腐蚀处理，可在-20℃至500℃宽温域范围内稳定工作。表盘设计符合工业可视性要求，白色底衬搭配黑色刻度线，支持摄氏度与华氏度双标显示，满足不同场景需求。内置抗震结构有效降低机械振动对测量精度的影响，防护等级达到IP65，能够适应潮湿、粉尘等恶劣环境。
产品应用领域广泛，包括石油化工设备中的管道温度监测、电力系统设备运行状态跟踪、暖通空调系统冷热交换效率分析，以及食品加工流程的温度控制等场景。针对不同安装需求，提供轴向、径向和万向型三种表头方向选择，并配备多种接口规格，包括M20×1.5螺纹、G1/2螺纹及法兰连接方式，适配DN15至DN100多种管径要求。
制造工艺方面，感温元件经过特殊退火处理，确保温度响应灵敏度和长期使用稳定性。表玻璃采用钢化玻璃材质，具有耐高温、抗冲击特性。指针系统采用低摩擦轴承结构，有效规避卡针现象。产品出厂前经过多道校验工序，包括高温老化测试和低温循环测试，确保测量误差控制在±1.5%量程范围内。
本系列产品支持定制服务，可根据客户需求调整测温范围、表盘直径（标配80mm）、接口形式等参数。维护时仅需定期擦拭表体表面，无需特别校准，显著降低使用成本。适用于需要经济型、免维护温度监测方案的工业现场。
【English Version】
The WSS-481 bimetal thermometer is an industrial-grade temperature measurement instrument based on thermal expansion principles, designed for reliable temperature monitoring in various complex working conditions. Utilizing a bimetallic strip as the core sensing element, this device translates material deformation caused by temperature changes into precise pointer readings, offering intuitive operation and low maintenance requirements.
The stainless steel casing features integrated molding technology with anti-corrosion surface treatment, ensuring stable performance across a broad temperature range from -20℃ to 500℃. The high-contrast dial combines white background with black graduations, providing clear Celsius and Fahrenheit dual-scale readings. Enhanced vibration resistance structure maintains measurement accuracy under mechanical stress, while IP65 protection rating guarantees reliable operation in humid or dusty environments.
This thermometer series demonstrates exceptional adaptability across multiple industries, including pipeline temperature monitoring in petrochemical facilities, equipment status tracking in power systems, thermal efficiency analysis for HVAC installations, and process control in food production lines. Three orientation configurations (axial, radial, and adjustable) are available with multiple connection interfaces such as M20×1.5 thread, G1/2 thread, and flange adapters, compatible with pipe diameters from DN15 to DN100.
Manufacturing processes incorporate specialized annealing treatment for the thermal element to optimize responsiveness and durability. Toughened glass lens resists high temperatures and mechanical impacts, while low-friction bearing mechanism prevents pointer sticking. Rigorous quality control procedures include thermal aging tests and cryogenic cycling verification, maintaining measurement deviation within ±1.5% of full scale.
Customization options cover temperature range adjustment, dial diameter modification (standard 80mm), and interface configuration. The maintenance-free design requires only occasional surface cleaning, effectively reducing operational costs. This product series provides an economical solution for industrial applications demanding reliable temperature indication without complex calibration procedures.
