TN-20价格超声波，测厚仪

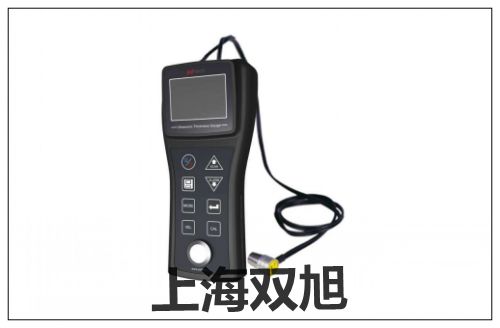

TN-20超声波测厚仪产品概述
TN-20超声波测厚仪是一款便携式无损检测设备，采用超声波脉冲反射原理进行厚度测量。该仪器适用于金属、塑料、陶瓷、玻璃等多种材料，能够精确测量板材、管材、压力容器等工件的厚度，并监测其在使用过程中的腐蚀减薄情况。仪器具有体积小巧、操作简便、测量快速等特点，可广泛应用于石油、化工、冶金、造船、航空等领域。1617
产品功能特点
TN-20超声波测厚仪配备高性能微处理器，支持单点测量和连续扫描模式。仪器具有探头零点校准和两点校准功能，可自动修正系统误差；已知厚度反测声速功能可提高测量精度；耦合状态提示和电池电量显示功能方便用户操作。仪器采用高对比度液晶显示屏，带有背光功能，在恶劣环境下仍能清晰读数。其抗振动、抗冲击设计确保在工业现场稳定工作。62328
技术参数说明
TN-20测量范围为0.75-300mm（钢材质），分辨率为0.1mm/0.01mm可选，测量误差±(0.5%H+0.04)mm。仪器支持多种探头选择，包括标准探头、微径探头和高温探头，适应不同测量场景。工作温度范围0-40℃，使用两节AA电池供电，连续工作时间超过100小时。仪器尺寸紧凑，重量轻便，便于携带和现场使用。1620
TN-20 Ultrasonic Thickness Gauge Overview
The TN-20 ultrasonic thickness gauge is a portable nondestructive testing device that utilizes ultrasonic pulse reflection principle for thickness measurement. It is suitable for various materials including metals, plastics, ceramics and glass, providing accurate measurements for plates, pipes and pressure vessels while monitoring corrosion-induced thinning during service. With compact size and user-friendly operation, this instrument finds wide applications in petroleum, chemical, metallurgy, shipbuilding and aerospace industries.11726
Key Features
The TN-20 incorporates high-performance microprocessor supporting single-point measurement and continuous scanning modes. It features probe zero calibration and two-point calibration for automatic error correction, as well as sound velocity measurement function using known thickness to improve accuracy. The gauge provides coupling status indication and battery level display for convenient operation. Its high-contrast LCD with backlight ensures clear readings even in harsh environments, while rugged design offers reliable performance at industrial sites.62328
Technical Specifications
The TN-20 offers measurement range of 0.75-300mm (steel) with selectable resolution of 0.1mm/0.01mm, and measurement accuracy of ±(0.5%H+0.04)mm. It supports multiple probe options including standard, micro-diameter and high-temperature probes for different applications. Operating temperature ranges from 0 to 40℃, powered by two AA batteries with over 100 hours continuous operation. The compact and lightweight design makes it ideal for field use.1620
