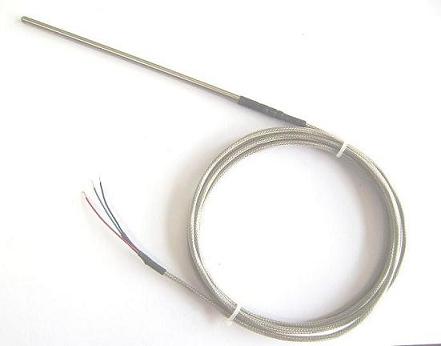

【WZPK2-275SA铂电阻元件产品介绍】
中文版：
WZPK2-275SA铂电阻元件是一款专为工业温度测量需求设计的高精度传感设备，采用铂金薄膜传感技术实现快速响应与稳定输出。该产品通过优化结构设计与材料工艺，满足各类复杂工况下的长期可靠运行要求，为用户提供精准的温度监测解决方案。
核心优势：
- 精密测量性能：采用高纯度铂丝绕制工艺，响应速度快，在-200℃至+500℃宽泛量程内保持线性输出特性，基础精度可达±0.15%FS（满量程）。
- 环境适应能力：316L不锈钢护套提供IP65防护等级，有效抵御潮湿、粉尘及弱腐蚀性介质，特殊设计的抗震结构可承受20m/s²机械振动。
- 安装兼容设计：标准化螺纹接口（可选M12×1.5、G1/2等多种规格）适配主流工业设备，柔性引线长度可按需定制（标准配置1.5米）。
- 长期稳定性：经800小时加速老化测试，年漂移量小于0.02%，显著降低设备维护频率。
应用领域：
适用于石油化工流程监控、电力设备温度保护、食品加工机械温控、制药生产环境监测及暖通系统能耗管理等场景。模块化结构支持快速更换，帮助用户缩短停机维护时间。
技术参数：
• 测温范围：-200～+500℃（可分段定制）
• 热响应时间：τ0.5≤8s（液体介质）
• 绝缘电阻：≥100MΩ/500VDC
• 引线类型：三线制PT100，镀银铜芯特氟龙绝缘
• 连接方式：直管/角型可选
服务体系：
我们提供专业技术咨询、应用场景解决方案定制及完善的售后支持，通过严格的质量管理体系确保每支产品均经过72小时连续老化测试。根据客户需求可提供特殊封装、延长线缆等定制化服务。
English Version:
WZPK2-275SA Platinum Resistance Element is a high-precision temperature sensing device engineered for industrial measurement applications. Utilizing advanced thin-film platinum technology, this product delivers rapid response and stable signal output, demonstrating exceptional performance in demanding operational environments.
Key Features:
- Measurement Precision: Crafted with high-purity platinum wire winding technology, achieves ±0.15%FS basic accuracy across the extended -200℃ to +500℃ range while maintaining excellent linearity.
- Environmental Durability: 316L stainless steel sheath provides IP65 protection rating, effectively resisting moisture, dust, and mild corrosive substances. Anti-vibration structure withstands mechanical shocks up to 20m/s².
- Installation Flexibility: Standardized threaded connections (including M12×1.5, G1/2 options) ensure compatibility with industrial equipment. Flexible lead wires available in customizable lengths (standard 1.5m).
- Operational Stability: Verified through 800-hour accelerated aging tests, demonstrating annual drift below 0.02% for reduced maintenance requirements.
Application Scenarios:
Ideal for process monitoring in petrochemical plants, thermal protection of power equipment, temperature regulation in food processing machinery, environmental control in pharmaceutical production, and HVAC system management. Modular design enables swift component replacement to minimize downtime.
Technical Specifications:
• Measuring Range: -200～+500℃ (customizable segments)
• Thermal Response: τ0.5≤8s (in liquid medium)
• Insulation Resistance: ≥100MΩ@500VDC
• Lead Configuration: 3-wire PT100 with silver-plated copper/Teflon insulation
• Connection Options: Straight or angled probe configurations
Service Support:
We offer technical consultation, customized application solutions, and comprehensive after-sales service. Each unit undergoes 72-hour continuous burn-in testing within our quality-controlled production system. Customized encapsulation and extended cable solutions are available upon request.
