【中文介绍】
WZPK-133S隔爆型铂电阻是一款专为工业复杂工况设计的温度传感装置，适用于存在易燃易爆气体的危险环境。产品采用高稳定性铂电阻元件，结合耐腐蚀不锈钢外壳与特殊防爆结构设计，实现温度测量的可靠性与安全性。其紧凑型外壳设计兼顾机械强度与环境适应性，可满足石油、化工、电力、冶金等领域的长期使用需求。
产品核心元件选用铂金属薄膜工艺，具备优异的温度线性特性与长期稳定性。通过优化封装工艺，有效降低环境振动与介质冲击对测量精度的影响。防爆腔体采用多重密封技术，阻隔可燃性介质与电气部件的接触，确保设备在潜在爆炸性环境中的安全运行。接线腔配置密封电缆接口，支持多种工业级连接方式，便于现场快速安装调试。
本装置工作温度范围覆盖-200℃至+500℃区间，可根据工况需求定制不同测量范围和安装规格。传感器头部采用锥形螺纹或法兰固定方式，适配常规工业管道与设备接口。内置抗电磁干扰设计，提升信号传输稳定性，适用于变频器、大功率电机等存在强电磁干扰的工业场景。使用寿命方面，外壳材料通过耐高温氧化处理，结合内部真空封装工艺，有效延缓元件老化，降低维护频率。
【English Introduction】

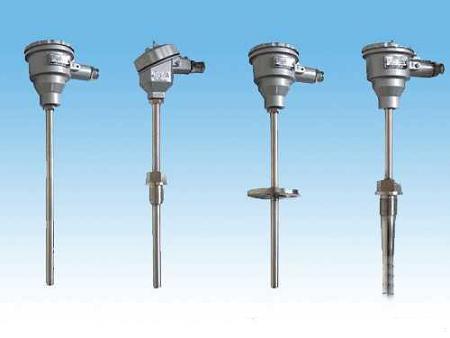

The WZPK-133S Explosion-Proof Platinum RTD is a temperature sensing device specifically engineered for industrial applications in hazardous environments with flammable gases. Integrating high-stability platinum sensing elements with corrosion-resistant stainless steel housing and specialized explosion-proof construction, this product delivers reliable temperature measurement while ensuring operational safety. The compact housing design combines mechanical durability with environmental adaptability, making it suitable for long-term deployment in petroleum, chemical processing, power generation, and metallurgical industries.
The core platinum thin-film sensor exhibits exceptional temperature linearity and long-term measurement consistency. Advanced encapsulation technology minimizes measurement deviations caused by mechanical vibrations and medium turbulence. The explosion-proof chamber incorporates multi-layer sealing mechanisms to isolate electrical components from combustible substances, maintaining operational integrity in potentially explosive atmospheres. The terminal compartment features sealed cable entries compatible with various industrial connection standards, facilitating efficient field installation.
With an operational temperature range spanning -200℃ to +500℃, this device supports customizable measurement ranges and mounting configurations. The sensor head accommodates tapered thread or flange mounting options for compatibility with standard industrial interfaces. Built-in electromagnetic interference (EMI) suppression enhances signal transmission stability in environments with variable-frequency drives and high-power electrical equipment. The housing undergoes high-temperature oxidation-resistant treatment, complemented by internal vacuum-sealing technology, to extend service life and reduce maintenance requirements.
【应用场景】（中英对照）
• 石化装置反应釜温度监控 / Temperature monitoring in petrochemical reactors
• 燃气输送管道安全监测 / Safety supervision of gas transmission pipelines
• 工业锅炉系统热力控制 / Thermal regulation in industrial boiler systems
• 制药过程洁净区测温 / Temperature measurement in pharmaceutical cleanrooms
• 压缩机组运行状态检测 / Operational status monitoring of compressor units
【技术参数】（通用表述）
量程范围：基础型覆盖-50~300℃（可扩展）
精度等级：典型值±0.15%FS
防护性能：壳体耐压≥3.0MPa
介质兼容：适用于多数气体/液体介质
电气接口：常规M20×1.5或1/2"NPT
引线长度：标准2米（支持定制）
注：本介绍基于通用技术参数编制，具体规格可根据实际工况需求进行调整优化。
