铠装铂电阻WZPK-175U 价格
产品概述
铠装铂电阻WZPK-175U是一种高性能温度传感器，专为复杂工况设计，适用于装配式铂电阻难以安装的狭窄或高振动环境。该产品采用薄膜铂电阻元件，结合不锈钢保护套管与高密度氧化绝缘材料，兼具抗污染、耐腐蚀和机械强度高的特性。其直径小巧（最小可达φ3mm），弯曲灵活，热响应时间短，能快速捕捉温度变化，确保测量实时性。适用于-200°C至500°C范围的液体、气体及固体表面温度检测，可无缝连接显示仪表、记录仪或控制系统。
This high-performance temperature sensor is designed for complex industrial environments where traditional assembled platinum resistors cannot be installed. Featuring a thin-film platinum element and a stainless-steel sheath filled with high-density oxide insulation, it offers excellent contamination resistance, corrosion protection, and mechanical durability. With a compact diameter (as small as φ3mm) and flexible bending capability, it ensures rapid thermal response for real-time monitoring. Suitable for measuring temperatures from -200°C to 500°C in liquids, gases, or solid surfaces, it seamlessly integrates with display instruments or control systems.
核心优势
WZPK-175U的突出特点包括高灵敏度与长期稳定性。其结构设计可适应恶劣环境（如高湿度、强振动），且安装形式多样（无固定、卡套螺纹、法兰等），满足不同场景需求。内置的铂电阻元件通过优化工艺实现一致性输出，误差控制在行业通用范围内。产品支持单支或双支配置，双支采用三线制引线，便于冗余备份或双通道监测。此外，常温绝缘电阻≥100MΩ，确保电气安全。
Key advantages include high sensitivity and long-term stability. Its robust design suits harsh conditions (e.g., high humidity or vibration), while multiple mounting options (floating, threaded fitting, flange, etc.) cater to diverse applications. The optimized platinum element delivers consistent performance with industry-standard tolerances. Available in single or dual-element versions (dual-element uses 3-wire configuration for redundancy or dual-channel monitoring), it also features a minimum insulation resistance of 100MΩ at room temperature for electrical safety.
应用场景
该产品广泛应用于石油化工、电力、制药等行业的管道或设备温度监测，尤其适合空间受限或需要快速响应的场景，如反应釜、压缩机、换热器等。其微型化设计便于集成到自动化系统中，为数据采集与过程控制提供可靠输入。
Ideal for temperature monitoring in pipelines or equipment across industries like petrochemicals, power generation, and pharmaceuticals, it excels in space-constrained or rapid-response applications (e.g., reactors, compressors, heat exchangers). Its compact size facilitates integration into automated systems, ensuring reliable data input for process control.
产品定制
用户可根据需求选择不同长度（100mm至500mm）、直径（φ3至φ8mm）及接线盒类型（防水、防溅、简易端子等），部分规格支持非标定制，如特殊法兰尺寸或延长导线。生产采用标准化工艺流程，保障交付效率与品质一致性。
Customizable options include length (100mm–500mm), diameter (φ3–φ8mm), and junction box types (waterproof, splash-proof, simple terminal, etc.). Non-standard designs (e.g., special flange dimensions or extended leads) are available for specific needs. Standardized manufacturing ensures consistent quality and efficient delivery.
1391222

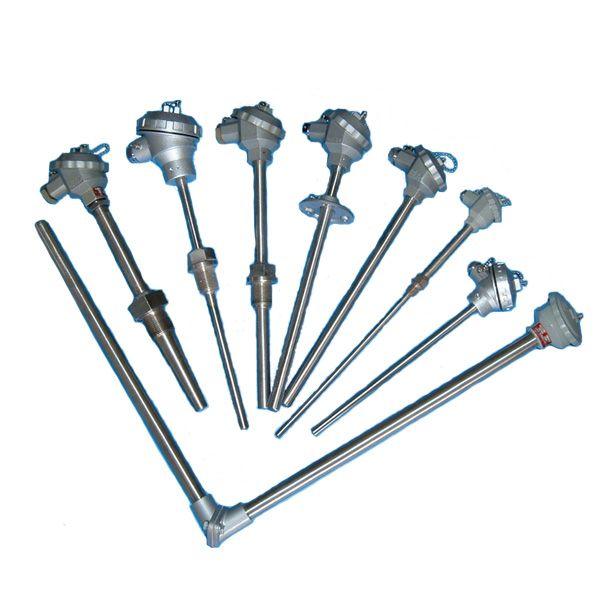

铠装铂电阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，铠装铂电阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述
铠装铂电阻是一种温度传感器，它比装配式铂电阻直径小，易弯曲，抗震性好，适宜安装在装配式铂电阻无法安装的场合。本公司生产的WZPK系列铠装铂电阻采用引进铂电阻测温元件，因此，具有精确、灵敏、热响应时间快、质量稳定、使用寿命长等特点。
特点
★ 热响应时间短，减小动态误差
★ 直径小，长度不受限制
★ 测量精确度高
★ 进口薄膜电阻元件，性能可靠稳定
工作原理
铠装铂电阻是利用物质在温度变化时，其电阻值也随着发生变化的特征来测量温度的，当阻值变
化时，工作仪表便显示出阻值所对应的温度值。
|
