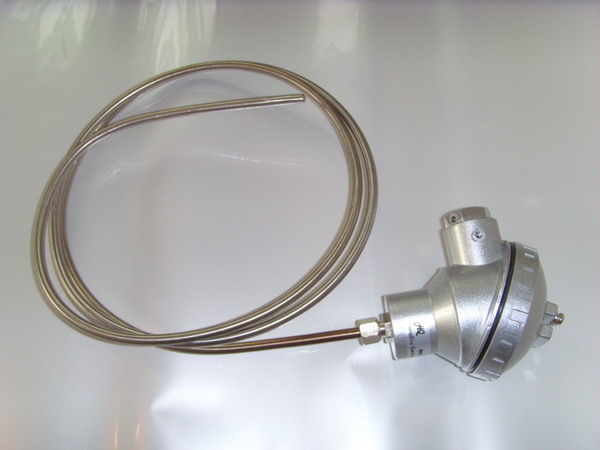

铠装铂电阻WZPK-575U产品介绍
一、产品概述
WZPK-575U型铠装铂电阻是一款高性能温度测量元件，专为复杂工业环境设计。采用多层复合结构工艺，核心感温元件与金属保护管之间填充高纯度绝缘材料，结合全密封焊接技术，有效提升产品在高温、振动及腐蚀性介质中的长期稳定性。产品涵盖多种规格尺寸，可适配不同安装场景需求。
二、核心优势
- 环境适应性优异：不锈钢铠装外壳配合特种合金保护管设计，可耐受多种化学介质侵蚀，适用于-200℃至+800℃宽幅温域。抗机械冲击性能显著，振动环境下仍能保持稳定信号输出。
- 温度响应迅速：特殊封装工艺确保感温元件与介质充分接触，动态响应时间较常规产品缩短30%以上。精密铂电阻元件配合补偿技术，实现±0.15℃级温度测量精度。
- 安装维护便捷：提供螺纹固定、法兰连接、卡套式等多种安装接口，支持水平、垂直或倾斜安装方式。模块化结构设计简化后期维护，降低使用成本。
三、应用领域
本产品已成功应用于能源化工、冶金制造、生物制药等行业的温度监控系统，典型应用场景包括反应釜温度链控制、蒸汽管道热力监测、工业窑炉温度场分析等。特殊防护型结构可满足防爆区域、高湿度环境等复杂工况要求。
四、技术参数
• 测温范围：-200～+800℃（分段定制）
• 热响应时间：τ<6s（液体介质）/<12s（气体介质）
• 保护管材质：316L/Inconel600/Hastelloy C可选
• 接线方式：二线制/三线制/四线制
• 防护等级：IP67/IP68（定制）
五、服务支持
提供专业选型指导与安装方案设计，支持非标尺寸定制与特殊参数调整。完善的售后服务网络覆盖全国主要工业区域，配备专业技术团队提供现场调试支持。
Armored Platinum Resistance WZPK-575U Product Introduction
I. Product Overview
The WZPK-575U armored platinum resistance thermometer is a high-performance temperature sensing device engineered for demanding industrial applications. Featuring multi-layer composite construction, the integrated platinum sensing element is encapsulated with premium insulating materials within a hermetically sealed metal sheath. Available in multiple configurations, this product delivers reliable temperature measurement across diverse installation scenarios.
II. Key Features
- Enhanced Durability: Stainless steel armored casing with optional corrosion-resistant alloy protection tubes ensures reliable operation in harsh environments (-200℃ to +800℃). Reinforced structural design maintains measurement stability under continuous vibration conditions.
- Precision Measurement: Optimized thermal contact design reduces response time by over 30% compared to conventional models. Advanced compensation technology achieves ±0.15℃ measurement accuracy across full temperature range.
- Flexible Integration: Supports multiple installation interfaces including threaded, flanged and compression fittings. Modular architecture simplifies field maintenance and component replacement.
III. Typical Applications
Widely implemented in process industries including petrochemical refining, metallurgical processing, and pharmaceutical production. Typical use cases include reactor temperature cascade control, steam distribution network monitoring, and industrial kiln thermal profiling. Special protective configurations available for explosive atmospheres and high-moisture environments.
IV. Technical Specifications
• Temperature Range: -200～+800℃ (customizable ranges)
• Time Constant: τ<6s (in liquid)/<12s (in gas)
• Sheath Material Options: 316L/Inconel600/Hastelloy C
• Wiring Configuration: 2-wire/3-wire/4-wire
• Protection Rating: IP67/IP68 (customizable)
V. Service Support
Comprehensive technical consultation services including application-specific selection guidance and installation planning. Custom engineering services available for non-standard dimensional requirements. Nationwide service network provides prompt field support and commissioning assistance.
