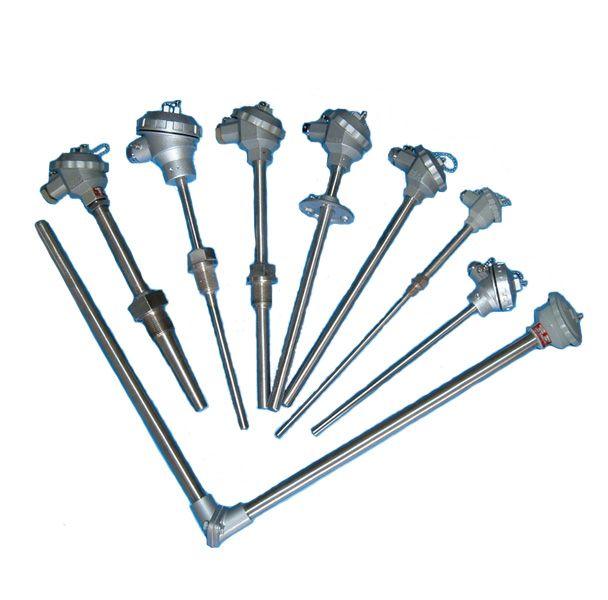

铠装铂电阻WZPK2-236SA 厂家
产品概述
WZPK2-236SA铠装铂电阻是一款高性能温度传感器，专为工业环境中狭窄管道或复杂安装场景设计。其核心采用进口薄膜铂电阻元件，具有优异的温度测量精度和稳定性。产品直径小巧（典型外径3-6mm），弯曲灵活，抗震性能强，适合传统装配式铂电阻无法安装的场合。不锈钢保护套管搭配高密度氧化物绝缘填充材料，使其在恶劣工况下仍能保持可靠的机械强度与抗污染能力，广泛应用于-200℃至500℃范围内的气体、液体及固体表面温度检测。
产品可直接通过铜导线连接二次仪表，为显示仪、记录仪、调节器等设备提供精准的温度信号输入。其热响应时间短（如φ5mm规格≤8秒），能有效减少动态误差，满足快速测温需求。此外，该产品支持多种安装方式（如固定卡套螺纹、法兰等），并可根据用户需求定制长度，适配不同应用场景。128
Product Overview
The WZPK2-236SA armored platinum resistance thermometer is a high-performance temperature sensor designed for industrial environments with confined piping or complex installation requirements. Its core utilizes imported thin-film platinum resistance elements, delivering exceptional measurement accuracy and long-term stability. With a compact diameter (typically 3-6mm) and flexible bending capability, it excels in vibration-prone scenarios where traditional assembled resistors are impractical.
The stainless steel sheath, reinforced by high-density oxide insulation, ensures robust mechanical strength and resistance to contamination in harsh conditions. It operates reliably within a wide range of -200°C to 500°C, measuring temperatures of gases, liquids, and solid surfaces. The device connects directly to secondary instruments via copper wires, providing precise input signals for displays, regulators, or data loggers.
Key advantages include rapid thermal response (e.g., ≤8 seconds for φ5mm models) to minimize dynamic errors, along with customizable lengths and mounting options (such as threaded fittings or flanges) for diverse applications. Its durability and adaptability make it suitable for industries like chemical processing, energy, and environmental monitoring.5714
技术特点
该产品采用模块化设计，感温元件与保护套管一体化成型，避免了引线松动导致的测量偏差。内部氧化镁绝缘层密度高，耐压性能优异，同时支持三线制接线以消除导线电阻影响。可选防水、防溅接线盒形式，提升潮湿环境下的安全性。产品无铅环保材料符合现代工业标准，使用寿命显著优于普通热电阻。61117
Technical Features
Modular construction integrates the sensing element with the protective sheath, eliminating measurement drift from loose connections. The magnesium oxide insulation layer ensures high dielectric strength, while 3-wire configuration compensates for lead resistance. Optional waterproof or splash-proof junction boxes enhance reliability in humid environments. Environmentally friendly materials (lead-free) and extended service life further distinguish its performance.151822
铠装铂电阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，铠装铂电阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述
铠装铂电阻是一种温度传感器，它比装配式铂电阻直径小，易弯曲，抗震性好，适宜安装在装配式铂电阻无法安装的场合。本公司生产的WZPK系列铠装铂电阻采用引进铂电阻测温元件，因此，具有精确、灵敏、热响应时间快、质量稳定、使用寿命长等特点。
特点
★ 热响应时间短，减小动态误差
★ 直径小，长度不受限制
★ 测量精确度高
★ 进口薄膜电阻元件，性能可靠稳定
工作原理
铠装铂电阻是利用物质在温度变化时，其电阻值也随着发生变化的特征来测量温度的，当阻值变
化时，工作仪表便显示出阻值所对应的温度值。
|
