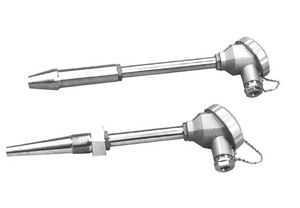

套管式热电阻WZPN-230 价格
产品概述
套管式热电阻WZPN-230是一款专为工业温度测量设计的精密传感器，采用特殊材料和结构工艺制造，适用于化工厂、冶炼厂、火电厂等高磨损、强腐蚀性环境。该产品通过优化保护管材质和耐磨涂层技术，显著提升了在粉体流动、高温氧化等恶劣工况下的使用寿命，能够稳定测量-200℃至+420℃范围内的介质温度。产品采用固定螺纹安装方式，配备防水接线盒，确保在复杂工业环境中长期可靠运行。31114
技术特点
WZPN-230的核心优势在于其创新的耐磨结构设计。保护管采用复合管型实体化结构，表面经过特殊硬化处理，材料硬度达到HRC58-62，能有效抵抗物料冲刷和机械振动。感温元件选用高精度铂电阻(Pt100)，温度响应速度快，测量偏差控制在±(0.3+0.005|t|)℃范围内。产品提供多种插入深度规格（标准插深150mm至1050mm），用户可根据现场管道尺寸和测量需求灵活选择。独特的密封结构使产品防护等级达到IP65，能有效防止粉尘和水汽侵入。41216
应用场景
该产品特别适用于循环流化床锅炉、水泥窑头/窑尾、煤粉输送系统等存在剧烈磨损的场合。在石油化工领域，能耐受硫化氢、湿氯等腐蚀性介质；在冶金行业，可测量熔融金属外的各种高温介质。其抗振动设计使之成为旋转设备温度监测的理想选择，如球磨机、风机等设备的轴承温度监测。产品安装方式灵活，既可通过M27×2螺纹直接固定，也可选配法兰连接满足不同管道安装需求。111520
Product Introduction
The WZPN-230 sheathed RTD is a robust temperature sensor specifically engineered for industrial applications. Featuring an armored construction with wear-resistant coatings, it delivers exceptional performance in abrasive environments such as coal handling systems, fluidized bed boilers, and cement production lines. The sensor utilizes platinum resistance elements (Pt100) to achieve precise temperature measurement from -200°C to +420°C, with stable output signals compatible with most control systems. The threaded connection design (M27×2 standard) simplifies installation while maintaining measurement accuracy under high-vibration conditions.1717
Key Features
This RTD distinguishes itself through multi-layer protection technology. The outer sheath combines hardened alloy and anti-corrosion materials, extending service life 3-5 times longer than conventional sensors in particle-laden flows. Its compact design (standard Ø16mm diameter) allows installation in space-constrained areas, with optional 12mm or custom diameters available. The waterproof junction box (IP65 rated) houses high-temperature resistant terminals that ensure reliable signal transmission. Specialized versions can withstand extreme conditions including high-velocity nitrogen flows and certain acidic/alkaline media up to 250°C continuous operation.31419
Typical Applications
Ideal for monitoring temperatures in aggressive process industries: effectively measures gas/solid mixture temperatures in CFB boilers, tracks kiln shell temperatures in rotary cement kilns, and monitors pipeline media in petrochemical plants. The sensor s vibration resistance makes it suitable for mobile equipment like crushers and conveyor systems. In power generation, it reliably measures flue gas and steam temperatures despite fly ash abrasion. Customizable insertion lengths (200mm to 1200mm) accommodate various duct sizes and process requirements. 121522
套管式热电阻
WZP-331-F, WZP-431-F, WZP 2-131-F, WZP 2-231-F, WZP 2-331-F, WZP 2-431-F, WZC-130-F, WZC-230-F, WZC-330-F, WZC-430-F, WZPN-130, WZPN-230, WZPN-330, WZPN-430, WZPN 2-130, WZPN 2-230, WZPN 2-330, WZPN 2-430, WZPN -131, WZPN-231, WZPN-331, WZPN-431, WZPN 2-131, WZPN 2-231, WZPN 2-331, WZPN 2-431, WZPM-631, WZPM2-631, WZCN-130, WZCN-230, WZCN-330, WZCN-430, WZP-2328, WZP2-2328, WZP-93C1, WZP2-93C1, WZP-93C2, WZP2-93C2, WZP-633, WZP2-633, WZP-634, WZP2-634, WZP-4318, WZP2-4318, WZP-731, WZP2-731, WZP-120, WZP-121,
套管式热电偶，作为温度测量和控制的传感器与显示仪表配套，以直接测量和控制生产过程中气体，液体和蒸气的温度。不仅用于发电厂管道测温，同时也用于其他工业部门的测温。
化工专用隔爆型热电偶WRCK-502，WRCK-522，WRCK-532，WRCK-592，WRCK-582，WRCK2-521，WRCK2-531，WRCK2-522，WRCK2-532，WREK-1313，WREK-1314，WREK-1315，WREK-1316，WREK-1323，WREK-1324，WREK-1325，WREK-1326，WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRFK-281A, WRFK-181A., WRCK-281A, WRCK-181A, WREK-281A, WREK-181A, WRNK-281A, WRNK-181A, WZPM-202U, WZPM-201U, WRNM-202A, WZPM-101U, WZPM-102U, 化工专用热电偶WREM-102A, WRNM-201A, WRNM-203A WRNN-436, WRNN2-436, WRN-420B, WRN-430B, WRN2-420B, WRN2-430B, WRE-420B, WRE-430B, WRE2-420B, WRE2-430B, WRN-420C, WRN-430C, WRN2-420C, WRN2-430C, WRE-420C, WRE-430C, WRE2-420C, WRE2-430C, WRN-420D, WRN-430D, WRN2-420D, WRN2-430D, WRE-420D, WRE-430D, WRE2-420D, 可动式热电偶WRE2-430D, WZP-420B, WZP-421B, WZP-430B, WZP-431B, WZP2-420B, WZP2-421B, WZP2-430B, WZP2-431B, WZC-420B, WZC-430B, WZP-420C, WZP-421C, WZP-430C, WZP-431C, WZP2-420C, WZP2-421C, WZP2-430C, WZP2-431C, WZC-420C, WZC-430C, WZP-420D, WZP-421D, WZP-430D, WZP-431D, WZP2-420D, WZP2-421D, WZP2-430D, WZP2-431D, WZC-420D, WZC-430D.WRR-433Q, WRNR-93UC, WRER-93UC, WRNR2-93UC, WRER2-93UC, WRNT-001, WRNT2-001, 耐腐、耐磨热电偶WRET-001, WRET2-001, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRER-13, WRNR2-13. WRER2-13. WRNR-14, WRER-14, WRNR2-14, WRER2-14, WRNR-15, WRER-15, WRNR2-15, WRER2-15, WRN-15A, WRER-15A, WRNR2-15A, WRER2-15A, WRNT-31, WRET-31, WRNT2-31, WRET2-31, 套管式热电偶WRNK-841n﹡D, WRNK-842n﹡D, WREK-841n﹡D. WREK-842n﹡D, WRNK-841n﹡I, WRNK-842n﹡I, WREK-841n﹡I. WREK-842n﹡I, WREK-842n﹡I, WRN-240A, WRN2-240A, WRE-240A, WRE2-240A, WRN-640A,WRN2-640A,WRE-640A,WRE2-640A, WRN-440A,WRN2-440A, WRE-440A,WRE2-440A, WRNK-240, WRNK2-240, WREK-240, WREK2-240, WRNK-440, WRNK2-440, WREK-440, WREK2-440, WRN-74O,WRN2-74O, WRN-74O, WRN2-74O, WRNR-15, WRNR2-15, WRNR-15A, WRNR2-15A, WRER-15, WRER2-15, WRER-15A, WRER215A, WRN-624, WRN-625, WRE-624, WRE-625, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRNR2-13, WRER-13, WRER2-13,WRNR-14, WRNR2-14, WRER14, WRER2-14, WRN-631, WRN2-631, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRN-130, WRN2-130, WRN-230, WRN2-230, WRN-330, WRN2-330, WRN2-430, WRN-430, WRE-130, WRE2-130, 热电偶 WRE-230, WRE2-230, WRE-330, WRE2-330, WRE-430, WRE2-430, WREK-1313, WREK-1314, WREK-1315, WREK-1316, WREK-1323, WREK-1324, WREK-1325, WREK-1326, WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRN-001, WRE-001. WRN-002, WRE-002, WRN-235T, WRN2-235T, WRE-235T, WRE2-235T, WRN-130-F, WRN-230-F, WRN-330-F, WRN-430-F, WRN2-130-F, WRN2-330-F, WRN2-430-F, WRE-130-F, WRE-230-F, WRE-330-F, WRE-430-F,WRE2-130-F,WRE2-230-F,WRE2-330-F.WRE2-430-F.WRN-130(*),WRN-230(*),WN-330(*),WN-430(*).,WRNN2-130(*),WNN2-230(*),WRNN2-330(*),WNN2-430(*),WREN-130, WREN-230, WREN-330, WREN-430, WREN2-130, WREN2-230, WREN2-330, WREN2-430, WRNN-530(*),WRNN2-530(*),WREN-530,WREN2-530,WRNN-631(*),WRNN2-631(*),WREN-631, WREN2-631, WRN-12B, WRE-12B, WRN2-12B, 装配式热电偶WRE2-12B, WRN-13B, WRE-13B, WRN2-13B, WRE2-13B, WRN-14B, WRE-14B, WRN2-14B, WRE2-14B, WRN-15B, WRE-15B, WRN2-15B, WRE2-15B, WRN-15AB, WRE-15AB, WRN2-15AB, WRE2-15AB, WRN-4318, WRE-4318,,WN2-4318, WRE2-4318, WRN-43C, WRE-43C, WRN2-43C, WRE2-43C, WRR-120, WRR-121, WRR2-120, WRR2-121, WRP-120, WRP-121, WRP2-120,,
|
