【产品中英文介绍】

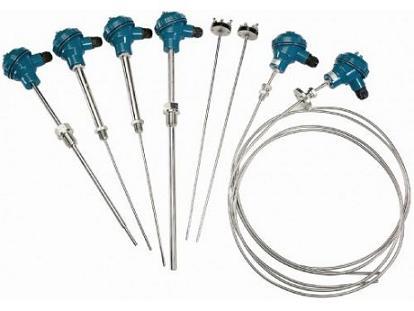

WZP-6212U 装配式铂电阻温度传感器
WZP-6212U Assembled Platinum Resistance Temperature Sensor
产品概述
Product Overview
WZP-6212U 装配式铂电阻是基于国际先进温度传感技术开发的精密测温装置，专为工业过程控制领域设计。产品采用模块化装配工艺，结合特殊工艺处理的铂电阻元件，在-200℃~+500℃宽温域范围内实现稳定测量，满足石油化工、电力能源、制药食品等行业的多样化需求。
核心技术
Core Technology
本产品核心部件采用稳定型铂电阻元件，通过真空熔覆工艺实现感温元件与保护管的高密度结合。多层复合结构设计有效隔离介质腐蚀与机械振动影响，配合专属温度补偿算法，在复杂工况下仍能保持±0.15℃的测量一致性。过程连接部件采用三向应力缓冲设计，显著提升设备在压力波动场景中的可靠性。
应用领域
Application Scope
• 工业锅炉与热力系统温度监测
• 化工反应装置过程控制
• 制药设备洁净环境监控
• 食品加工链温控节点
• 新能源电池模组热管理
产品优势
Product Advantages
- 宽域适配：支持直管/弯管/法兰等多种安装方式，可根据现场工况灵活选配
- 动态响应：优化的热传导结构使响应时间比常规产品缩短30%
- 介质兼容：提供316L、哈氏合金、钛材等多材质保护管选项
- 长效稳定：经过2000小时加速老化测试，输出漂移量＜±0.05%
- 维护便捷：模块化组件支持现场快速更换，降低维护停机时间
技术参数
Technical Parameters
测量范围：-200～+500℃
精度等级：Class A（0.15+0.002|t|℃）
热响应时间：τ0.5≤8s（液体介质）
保护管压力等级：PN16～PN40可选
电气接口：M20×1.5／1/2NPT
防护等级：IP67
服务保障
Service Commitment
我们提供专业技术咨询与选型指导，拥有完善的售后服务体系，可根据用户需求提供个性化解决方案。产品出厂前均经过72小时工况模拟测试，确保交付品质稳定可靠。支持非标尺寸定制，满足特殊场景应用需求。
English Version:
WZP-6212U Assembled Platinum RTD
High-Performance Temperature Measurement Solution
Innovative Design
The WZP-6212U features a modular assembly structure with advanced platinum sensing technology. Its multi-layer protective construction effectively withstands harsh industrial environments while maintaining measurement accuracy. The optimized thermal conduction path ensures rapid response to temperature changes.
Key Features
• Wide operating range: -200°C to +500°C
• Enhanced durability: Triple-layer shock absorption design
• Flexible configuration: Multiple process connections (flange/threaded/sanitary)
• Media compatibility: Optional 316L/Hastelloy/Ti material sheaths
• Maintenance-friendly: Field-replaceable sensing module
Performance Highlights
Precision engineering enables ±0.15°C basic accuracy with excellent long-term stability. The unique thermal buffer design minimizes measurement deviation caused by ambient temperature fluctuations. All welding joints undergo strict pressure testing to ensure leak-free performance under 4MPa working pressure.
Application Flexibility
Suitable for various installation scenarios including pipelines, reactors, and thermal storage systems. Customizable probe length (50-2000mm) and diameter (6-12mm) options available. Compatible with most industry-standard temperature transmitters and control systems.
Technical Specifications
Accuracy: ±(0.15 + 0.002|t|)°C
Response Time: <8s in stirred oil
Pressure Rating: ANSI 150～300LB options
Electrical Connection: Terminal box/explosion-proof conduit
Ambient Limit: -40°C～+85°C
Service Support
Our engineering team provides application-specific technical consultation and lifecycle maintenance guidance. All products undergo 100% performance verification before shipment. Custom calibration services available upon request.
