装配式薄膜铂热电阻WZP2-010 价格
产品概述
装配式薄膜铂热电阻WZP2-010是一款高精度温度测量传感器，采用先进的薄膜铂电阻技术制造。该产品设计用于工业环境中液体、蒸汽和气体介质的温度测量，具有快速响应和稳定输出的特点。产品结构由感温元件、不锈钢保护管、接线盒和固定装置组成，采用模块化装配设计便于安装维护。WZP2-010可提供双支元件配置，能同时输出两组相同的电阻信号，满足多点温度监测需求。319
技术特点
WZP2-010采用薄膜铂电阻作为核心感温元件，通过精密溅射工艺将铂材料附着在陶瓷基片上，具有优异的抗震性和温度响应速度。产品工作温度范围覆盖-200℃至420℃，在不同温度区间均能保持线性输出特性。不锈钢保护管提供良好的机械强度和耐腐蚀性能，适用于多种工业环境。接线盒采用防水式设计，确保在潮湿工况下稳定工作。产品允许通过最大测量电流为5mA，自热效应控制在0.3℃以内，保证测量准确性。128
应用领域
该产品广泛应用于石油化工、电力能源、机械制造等行业的温度监测系统。特别适合需要测量管道内介质温度或设备表面温度的场合。产品可与各类显示仪表、记录仪和控制系统配套使用，为自动化生产提供可靠的温度数据。双支元件设计使其适用于需要冗余备份或同步比较的重要测温点。固定螺纹安装方式便于在压力容器和管道上进行标准化安装。1124
Product Overview
The assembled thin-film platinum RTD WZP2-010 is a high-precision temperature sensor manufactured using advanced thin-film platinum technology. This product is designed for measuring liquid, steam and gas temperatures in industrial environments, featuring fast response and stable output. The modular assembly structure consists of sensing element, stainless steel sheath, connection head and mounting fixtures, providing convenient installation and maintenance. The WZP2-010 offers dual-element configuration capable of simultaneously outputting two identical resistance signals for multi-point temperature monitoring requirements. 1323
Key Features
Utilizing thin-film platinum as core sensing element, the WZP2-010 applies precision sputtering technology to deposit platinum material on ceramic substrate, delivering excellent vibration resistance and temperature response. The operational temperature range covers -200°C to 420°C with maintained linear output characteristics across intervals. Stainless steel protective tube provides good mechanical strength and corrosion resistance for various industrial environments. Waterproof connection head design ensures stable performance in humid conditions. With maximum measuring current limited at 5mA, the self-heating effect is controlled within 0.3°C to guarantee measurement accuracy. 415
Application Fields
This product finds wide applications in temperature monitoring systems for petroleum chemical, power energy and machinery manufacturing industries. It is particularly suitable for measuring medium temperature inside pipelines or equipment surface temperature. The sensor can be paired with various display instruments, recorders and control systems to provide reliable temperature data for automated production. Dual-element design makes it ideal for critical measurement points requiring redundancy or synchronous comparison. Standard threaded mounting facilitates installation on pressure vessels and pipelines. 1225
装配式薄膜铂热电阻
WZP-621, WZP-631, WZP2-621, WZP2-631., WZP-621A, WZP2-621A, WZP-002 WZP-621A, WZP-631, WZP2-621, WZP2-621A, WZP2-631,, WZP-003, WZP-003A, WZP-010, WZP2-010, WZP-011, WZP2-011, WZC-010A, WZP-035S, WZC-001, WZC-200, WZP-260, WZP2-260, WZPM-267,WZP-269, WZP2-260, WZC-269, WZP-270, WZC-270, WZP-280, WZP-260, WZP2-260, WZP-269, WZP2-269, WZC-269, WZC-190, WZC-890J, WZP-892, WZP2-892, WZP2-3212A，WZP2-421B，SBWZ-2481/44SI，WRN-74S，WZPK-426S，WZP-3312A，WZPK2-326SA，WZP2-6312A，WZP-6312A，WZP2-24SA，WZP-24SA，WZP2-6212A，WZP-6212A，WZP-4312A，WZP-4212A，WZP2-3312A，WRNR-01，
概述
工业用薄膜铂热电阻作为新一代的温度测量和调节传感器，通常用来和显示仪表等配套，以直接测量各种生产过程中-79℃～600℃范围内液体，蒸汽和气体介质及固定表面等温度。 装配式铂电阻采用引进铂电阻元件作测温元件。因此，它具有良好的电输出性能，可为显示仪、记录仪、调节仪、扫描仪、数据记录仪以及电脑提供精确的温度变化输入信号。
结构原理

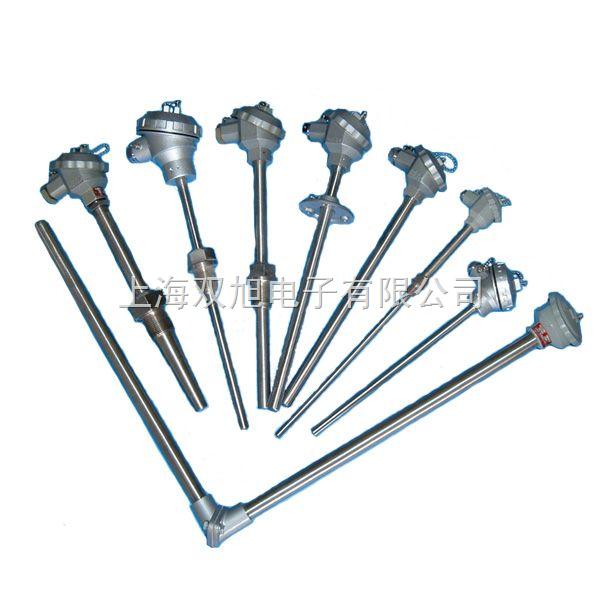

装配式铂电阻是由感温元件、不锈钢外保护管、接线盒以及各种用途的固定装置组成，有双支和单支元件两种规格，双支铂电阻可以同时输出二组相同电阻信号供使用。
铂电阻是一种温度传感器，它是利用铂丝在温度变化时自身电阻也随着变化的特性来测量温度的，不锈钢保护管不但具有抗腐蚀性能，而且具有足够的机械强度，保证铂电阻能安全地使用在各种场合，装配式铂电阻接线盒分防溅式和防水式两种类型供选择。安装固定装置有固定螺纹、活动法兰盘、固定安装法兰盘和带固定螺栓锥形保护管装置等形式。
|
