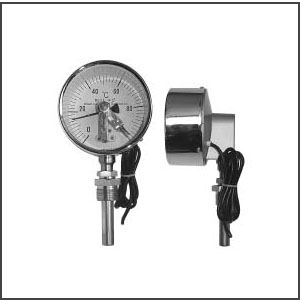

电接点双金属温度计WZPK2-405SA产品介绍
产品概述
电接点双金属温度计WZPK2-405SA是一款基于双金属热敏元件原理设计的工业级温度测量与控制仪表。产品采用高品质金属材料制造，通过温度变化引起的机械形变驱动指针指示温度值，并配合可调节的电接点装置实现温度信号输出功能。该仪表兼具现场直观显示与电气信号传输双重特性，可广泛应用于需要温度监控及自动化控制的工业场景。
核心优势
本产品采用优化的双金属片螺旋结构设计，在-20℃至500℃宽量程范围内保持稳定的温度响应特性。表壳选用304不锈钢材质配合密封结构，能在粉尘、潮湿等复杂工况下保持长期可靠运行。表盘采用高对比度刻度标识与防雾化处理工艺，确保恶劣环境下的可视性。电接点组件配备双组可调式触点，支持用户根据工艺需求灵活设定上下限报警值。产品提供轴向、径向等多种安装方式，适配不同设备的结构需求。
应用领域
该温度计适用于石油化工装置的温度监测、食品医药生产线的过程控制、暖通空调系统的节能管理、机械设备运行状态监控等场景。其可靠的结构设计可满足电力、冶金、水处理等行业的长期使用要求，特别适合需要现场观测与远程控制结合的自动化系统集成。
技术参数
测量范围：-20~500℃（支持分段定制）
精度等级：±1.5% F.S
接点容量：AC 220V 3A（阻性负载）
防护等级：IP65
环境温度：-10~55℃
接触电阻：≤50mΩ
电气接口：M20×1.5或1/2"NPT
安装螺纹：M27×2或定制规格
Bimetallic Thermometer with Electrical Contact WZPK2-405SA Product Introduction
Product Overview
The WZPK2-405SA bimetallic thermometer with electrical contact is an industrial-grade temperature measurement and control instrument based on the bimetallic thermal element principle. Manufactured with high-quality metal materials, the device utilizes mechanical deformation caused by temperature changes to drive the pointer for temperature indication, while incorporating an adjustable electrical contact mechanism for temperature signal output. This dual-function instrument combines local visual display with electrical signal transmission, making it suitable for various industrial applications requiring temperature monitoring and automated control.
Key Features
The thermometer employs an optimized spiral bimetallic strip structure, maintaining stable temperature response characteristics across a broad measurement range from -20℃ to 500℃. The 304 stainless steel housing with sealed construction ensures long-term reliability in challenging environments containing dust or moisture. The dial features high-contrast graduations and anti-fog treatment for clear visibility under harsh conditions. The electrical contact system includes two adjustable contact points, allowing flexible configuration of upper/lower alarm limits according to process requirements. Multiple installation configurations (axial/radial) are available to accommodate different equipment layouts.
Application Scenarios
This instrument is widely used in temperature monitoring for petrochemical installations, process control in food/pharmaceutical production lines, energy management of HVAC systems, and operational status monitoring of mechanical equipment. Its robust design meets the long-term service requirements in power generation, metallurgy, water treatment and other industrial sectors, particularly suitable for automated systems requiring integration of local observation and remote control capabilities.
Technical Specifications
Measurement range: -20~500℃ (customizable segments)
Accuracy class: ±1.5% F.S
Contact rating: AC 220V 3A (resistive load)
Protection class: IP65
Ambient temperature: -10~55℃
Contact resistance: ≤50mΩ
Electrical connection: M20×1.5 or 1/2"NPT
Mounting thread: M27×2 or custom specifications
