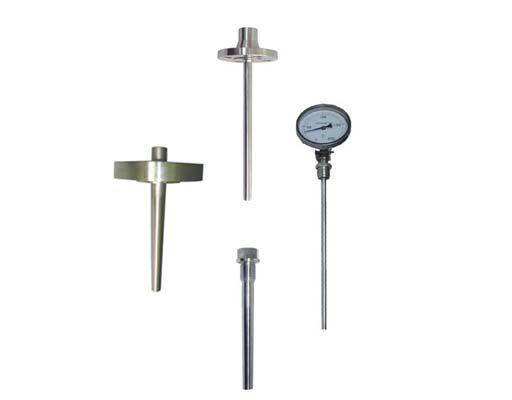

热套式双金属温度计 WSS-483S 产品介绍
【中文版】
产品概述
WSS-483S型热套式双金属温度计是一款专为工业领域设计的高性能温度测量仪表。该产品采用热套保护管与主体分体式结构设计，能有效应对高温高压工况下的温度监测需求。凭借其可靠的机械性能和稳定的温度响应特性，广泛应用于各类工业设备的过程控制环节。
核心特点
-
强化型热套结构
采用锥形螺纹连接工艺，通过热套保护管与设备管道的刚性连接设计，有效提升仪表在高压流体介质中的抗冲击能力。保护管材质可根据工况需求选择304/316不锈钢或其他特种合金。
-
宽域温度监测
测量范围覆盖-50℃至500℃区间，通过特殊设计的双金属螺旋片结构，可确保在不同温度区段保持稳定的线性输出特性。表盘采用270°广角刻度布局，支持精确到1.5%满量程的指示精度。
-
环境适应性设计
全密闭式表壳结构符合IP65防护等级要求，内置抗震缓冲组件，可有效缓解机械振动对测量精度的影响。表面经静电喷塑处理的铝合金壳体，具备良好的耐腐蚀特性。
-
便捷安装维护
分体式结构支持热套保护管与表头的单独安装调试，方便设备运行过程中的检修更换。提供轴向/径向两种表头安装方向选择，适配不同工况的观察需求。
适用范围
本产品适用于石油化工、电力能源、机械制造等行业的设备温度监控，特别适用于管道系统、反应容器、热交换装置等需要长期可靠温度监测的工业场景。可兼容蒸汽、导热油、压缩气体等多种介质的温度测量。
技术参数
测量范围：-50-50/0-100/0-200/0-300/0-400/0-500℃（可选）
精度等级：±1.5%FS
保护管直径：Φ12/Φ16mm（可选）
连接螺纹：M27×2/G3/4"NPT（可选）
环境温度：-20～80℃
服务支持
提供定制化参数配置服务，可根据具体应用场景匹配最佳的温度测量方案。完善的售后服务体系确保产品全生命周期内的技术支持。
【English Version】
Product Overview
The WSS-483S Thermal Sleeve Bimetal Thermometer is a high-performance temperature measurement instrument specifically engineered for industrial applications. Featuring a split structure design with separable thermal sleeve and main body, this product demonstrates excellent adaptability in high-temperature and high-pressure operating conditions. Its reliable mechanical performance and stable temperature response characteristics make it ideal for process control in various industrial equipment.
Key Features
-
Reinforced Thermal Sleeve Structure
The conical thread connection design ensures rigid coupling between the thermal sleeve protector and equipment piping, significantly enhancing impact resistance in high-pressure fluid environments. Protective tube materials include 304/316 stainless steel or specialty alloys for customized applications.
-
Extended Temperature Monitoring
With measurement range spanning from -50℃ to 500℃, the specially designed bimetallic helical coil maintains stable linear output characteristics across different temperature zones. The 270° wide-angle dial display achieves indication accuracy up to 1.5% of full scale.
-
Environmental Adaptability
IP65-rated sealed housing with integrated shock-absorbing components effectively minimizes vibration interference. The electrostatic-coated aluminum alloy casing provides superior corrosion resistance in harsh environments.
-
Simplified Installation
Modular construction allows independent installation and maintenance of thermal sleeve and measurement unit. Available in axial/radial mounting configurations to accommodate diverse observation requirements.
Application Scope
This instrument is particularly suitable for temperature monitoring in pipeline systems, reaction vessels, and heat exchange equipment within petrochemical, power generation, and manufacturing industries. Compatible with various media including steam, thermal oil, and compressed gases.
Technical Specifications
Measuring Range: -50-50/0-100/0-200/0-300/0-400/0-500℃ (selectable)
Accuracy: ±1.5% FS
Protection Tube Diameter: Φ12/Φ16mm (optional)
Connection Thread: M27×2/G3/4"NPT (optional)
Ambient Temperature: -20～80℃
Service Support
Customized parameter configuration services ensure optimal temperature measurement solutions for specific applications. Comprehensive after-sales support guarantees technical assistance throughout the product lifecycle.
