【中文产品介绍】

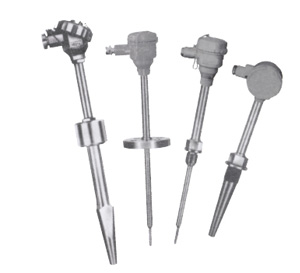

WZPK-105U 精密薄膜铂热电阻是专为工业温度测量领域设计的高性能传感元件。该产品采用先进薄膜沉积工艺，在氧化铝陶瓷基片上形成纳米级铂金属层，配合激光微调技术实现优异的测温重复性。其独特的紧凑型封装结构可适配多种工业设备安装需求，在-50℃至500℃宽温域范围内展现出色稳定性，尤其适用于温度梯度变化频繁的复杂工况环境。
本产品核心优势体现在三方面：其一，选用高纯度铂材料结合真空封装工艺，有效隔绝介质腐蚀与机械振动影响，平均无故障运行时间可达3万小时以上；其二，通过创新性应力缓冲层设计，显著降低冷热冲击导致的零点漂移问题，长期使用条件下年漂移量小于0.03%FS；其三，模块化接线端子支持三线制/四线制自由切换，配合定制化保护套管方案，可兼容石油化工、电力能源、食品制药等行业的多样化安装场景。
技术参数方面，产品提供分度号Pt100/Pt1000两种配置，测温精度达到A级（±0.15℃@0℃），热响应时间τ0.5≤8秒（液体介质）。防护等级IP67壳体采用316L不锈钢整体锻造工艺，耐受压力最高6MPa。自主研发的梯度退火工艺使元件在高温段仍保持线性输出特性，600℃条件下非线性误差小于0.3%。产品适配DIN/IEC标准接口，支持G1/2、NPT 1/4等多种螺纹规格选配。
我们提供全流程技术支持服务，可根据客户需求定制探杆长度（50-2000mm）、引线材质（聚四氟乙烯/玻璃纤维/金属软管）及接插件类型。所有出厂产品均经过72小时老化测试与多点温度校准，确保批次一致性。针对特殊应用场景，可提供防爆型、卫生型、高抗震型等定制化解决方案。
【English Product Introduction】
The WZPK-105U thin-film platinum RTD represents cutting-edge temperature sensing technology for industrial applications. Engineered with magnetron-sputtered platinum film on alumina substrates, this sensor delivers exceptional measurement consistency through precisely controlled laser trimming processes. Its compact design accommodates diverse installation requirements while maintaining outstanding performance across a broad operational range from -50℃ to 500℃, particularly excelling in environments with rapid thermal cycling.
Three key technological advancements distinguish this product: The vacuum-encapsulated platinum sensing element resists chemical corrosion and mechanical stress, achieving over 30,000 hours MTBF. Proprietary stress-relief layers minimize zero-point drift caused by thermal shock, maintaining long-term stability with annual drift below 0.03%FS. Modular terminal blocks support flexible 3-wire/4-wire configurations, adaptable to various industrial scenarios through customizable sheath solutions.
Technical specifications include dual Pt100/Pt1000 options with Class A accuracy (±0.15℃@0℃). The IP67-rated 316L stainless steel housing withstands pressures up to 6MPa, while optimized thermal response reaches τ0.5≤8s in liquid media. Advanced annealing techniques ensure linear output characteristics with less than 0.3% nonlinearity at 600℃. Standard process connections cover DIN/IEC-compliant G1/2 and NPT 1/4 thread types.
Customization services include probe lengths (50-2000mm), cable materials (PTFE/fiberglass/metal conduit), and connector configurations. Each unit undergoes rigorous 72-hour aging tests and multi-point calibration for batch consistency. Specialized variants are available for explosive atmospheres, sanitary processes, and high-vibration environments, supported by comprehensive technical consultation throughout project implementation cycles.
