电站测温用热电阻WZP2 -631B 供应

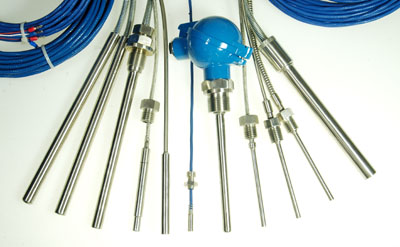

WZP2 - 631B 热电阻产品介绍
中文介绍
WZP2 - 631B 热电阻是专为电站测温场景精心设计的高品质测温元件。它采用优质铂丝作为感温元件，这种铂丝具有极高的纯度和稳定性，能够在电站复杂的运行环境中长期保持精准的测温性能。其测量范围通常覆盖 - 200℃至 + 850℃，能够满足电站中各种设备在不同工况下的温度监测需求，无论是发电机绕组、变压器油温，还是汽轮机轴承等关键部位的温度变化，都能被准确捕捉并实时反馈。
在结构设计上，WZP2 - 631B 热电阻的保护管采用坚固的不锈钢材质，经过精细加工，具备良好的抗腐蚀性和耐磨性，可有效抵御电站环境中可能出现的潮湿、油污以及机械冲击等因素对热电阻的损害。其引出线部分采用可靠的绝缘和密封措施，确保电信号传输的稳定性和准确性，避免因外界干扰导致测量误差。
安装方式灵活多样，可依据电站设备的具体结构和安装空间，选择合适的固定方式，如螺纹连接、法兰安装等，方便用户快速、准确地将其安装到测温点。此外，该热电阻的响应速度快，能够在温度发生变化时迅速作出反应并输出对应的电信号，为电站的自动化控制系统提供及时、准确的温度数据，助力电站实现安全、高效、稳定的运行，是电站温度监测环节中不可或缺的可靠伙伴。
English Introduction
The WZP2 - 631B thermoresistance is a high - quality temperature - sensing element specifically designed for temperature measurement in power stations. It utilizes high - purity platinum wire as the temperature - sensing element, which boasts remarkable stability and can maintain precise temperature - measuring performance over the long term in the complex operating environment of power stations. The typical measuring range of this thermoresistance is from - 200℃ to + 850℃, capable of meeting the temperature - monitoring requirements of various equipment under different operating conditions in a power station. It can accurately capture and provide real - time feedback on temperature changes in key parts such as generator windings, transformer oil temperature, and turbine bearings.
In terms of structural design, the protective sheath of the WZP2 - 631B thermoresistance is made of robust stainless steel, which has been finely processed to offer excellent corrosion and wear resistance. It can effectively protect the thermoresistance from potential damage caused by factors such as humidity, oil contamination, and mechanical impact in the power station environment. The lead - out part of the thermoresistance adopts reliable insulation and sealing measures to ensure the stability and accuracy of the electrical signal transmission, avoiding measurement errors due to external interference.
The installation of this thermoresistance is highly flexible. Depending on the specific structure and installation space of the power station equipment, various fixing methods such as threaded connection and flange installation can be chosen to quickly and accurately install it at the temperature - measuring point. Moreover, the thermoresistance has a fast response speed. It can swiftly react to temperature changes and output the corresponding electrical signal, providing timely and accurate temperature data for the automation control system of the power station. This helps to ensure the safe, efficient, and stable operation of the power station. The WZP2 - 631B thermoresistance is an indispensable and reliable partner in the temperature - monitoring process of power stations.
电站测温用热电阻
WZC-130B，WZP-220B，WZP-221B，WZP-230B，WZP-231B，WZP2-220B，WZP2-221B，WZP2-230B，WZP2-231B，WZP-220AB，WZP2-220AB。WZC-220B，WZC-230B，WZC-220AB，WZP-320B，WZP-321B，WZP-330B，WZP-331B，WZP2-320B，WZP2-321B，WZP2-330B，WZP2-330B，WZC-320B，WZC-320B，WZP-420B，WZP-421B，WZP-430B，WZP-431B，WZP2-420B，WZP2-421B，WZP2-430B，WZP2-431B，WZP-42AB，WZP2-42AB，WZC-420B，WZC-430B，WZP-420B，WZP-421B，WZP-430B，WZP-430B，WZP-431B，WZP2-420B，WZP2-421B，WZP2-430B，WZP2-431B，WZP-42AB，WZP2-42AB，WZP-420B，WZC-430B，WZP-621B，WZP-621AB，WZP-631B，WZP2 -621B，WZP2 -621B，WZP2 -631B，WZP-621B，WZP-631B，WZP-621B，WZP2 -631B，WZP-621AB，WZP2-621AB，WZP-002，WZP-003，WZP-003A，WZCM-201，WZPM-201，WZPM-201，WZP-270S，WZP-26S，WZP-236SB，
量程规格
名 称 分度号 测温范围 ℃ 精度等级 允 差Δt
镍铬－镍硅热电偶 K 0～800 2 ±2.5℃或 ±0.75％t
镍铬－铜镍热电偶 E 0～600 2 ±2.5℃或 ±0.75％t
铂热电阻 Pt100 -200～500 B ±（0.3＋0.005|t|）
注：t为感温元件实测温度或实测温度的值。
□公称压力
一般是指在常温下，保护管所能承受的静态外压而不破裂，试验压力一般采用公称压力的1.5倍。实际上，允许工作压力不仅与保护管材料、直径、壁厚有关，而且还与其结构形式、安装方法、置入深度以及被测介质的流速、种类有关。
□热电偶绝缘电阻
常温绝缘电阻的试验电压为直流500Ｖ。测量常温绝缘电阻的大气条件为：温度15～35℃，相对湿度45％RH，大气压力86～106kPa。
对于长度超过1米的热电偶，它的常温绝缘电阻值与其长度的乘积应不小于100MΩ•m，
即：Rr•L＞100MΩ•mL＞1m
式中：Rr-热电偶的常温绝缘电阻值，MΩ；
L－热电偶的长度，m。
对于长度等于或不足1米的热电偶，它的常温绝缘电阻值应不小于100MΩ。
□热电阻绝缘电阻
常温绝缘电阻的试验电压可取直流10～100Ｖ任意值，环境温度应在15～35℃范围内，相对湿度应不大于80％RH，常温绝缘电阻值应不小于100MΩ。
□热电阻允许通过电流
通过铂电阻的测量电流大不超过5mＡ。
|
