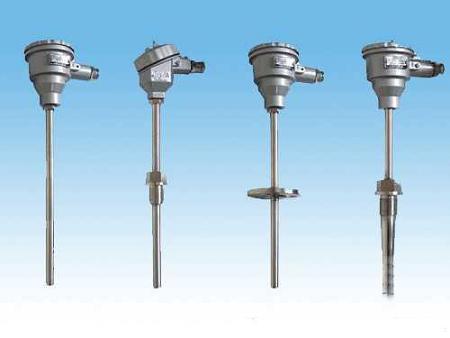

产品名称：隔爆型铂电阻温度传感器 WZPK2-136SA
（Explosion-Proof Platinum Resistance Thermometer WZPK2-136SA）
产品概述
WZPK2-136SA隔爆型铂电阻温度传感器专为工业环境中的温度测量需求设计，适用于存在可燃性气体或粉尘的场所。产品采用特殊结构设计，在确保测量精度的同时实现安全防护，可广泛应用于石油化工、能源开采、制药等领域的流程监测与设备保护。
核心特点
-
安全防护设计
通过强化壳体结构与接合面优化处理，有效抑制内部电弧或高温可能引发的风险。壳体材质选用高密度不锈钢，结合多重密封工艺，确保在复杂工况下的长期稳定运行。
-
精确温度感知
内置高纯度铂电阻元件，线性输出特性保证-200℃~+500℃范围内±0.15%的测量精度。元件封装工艺经过优化处理，有效降低环境振动对测量结果的影响。
-
环境适应能力
防护等级达到IP65，可耐受潮湿、盐雾及轻度化学腐蚀。接线腔体采用防渗漏设计，配合耐高温绝缘材料，适应-40℃~+80℃的环境温度波动。
-
便捷安装维护
提供多种过程连接方式（法兰/螺纹安装），支持水平或垂直安装方向。标准化接口设计可与主流控制系统快速对接，现场维护无需特殊工具。
应用领域
• 油气储运：储罐温度监控、管道伴热系统
• 化工生产：反应釜温度监测、蒸馏装置
• 能源设施：发电机组轴承温度检测
• 制药设备：灭菌工序温度控制
技术参数
| 项目 |
参数 |
| 测温范围 |
-200℃~+500℃ |
| 精度等级 |
Class A (±0.15℃) |
| 热响应时间 |
<8s（液体介质） |
| 电气接口 |
M20×1.5/G1/2 |
| 防护等级 |
IP65/IP67（可选） |
英文版
Product Introduction: Explosion-Proof Platinum RTD WZPK2-136SA
The WZPK2-136SA explosion-proof platinum resistance thermometer delivers reliable temperature measurement in hazardous environments containing combustible substances. Engineered for industrial applications requiring both precision and safety, this robust sensor combines advanced thermal detection technology with explosion containment features.
Key Advantages
-
Intrinsic Safety Design
Multi-layer containment structure with precision-machined flame paths effectively prevents internal energy propagation. The stainless steel housing with corrosion-resistant coating maintains integrity under continuous thermal cycling.
-
Measurement Consistency
High-stability platinum sensing element achieves ±0.12% repeatability across the operational range. Vibration-resistant construction minimizes mechanical stress on sensitive components.
-
Environmental Durability
Sealed terminal compartment with double O-ring protection resists moisture ingress. Optional anti-abrasion sheath extends service life in particle-laden atmospheres.
-
Flexible Integration
Modular design supports various process connections (flange/threaded) and output configurations. Pre-calibrated units enable plug-and-play installation with common control systems.
Typical Applications
• Fuel storage tank temperature monitoring
• Chemical reactor thermal management
• Power plant equipment protection
• Pharmaceutical process validation
Technical Specifications
| Parameter |
Specification |
| Measurement Range |
-200℃ to +500℃ |
| Thermal Time Constant |
6s (in oil) |
| Electrical Connection |
Conduit entry M20 |
| Material Construction |
316SS housing |
| Lead Wire Option |
Teflon/PFA insulated |
