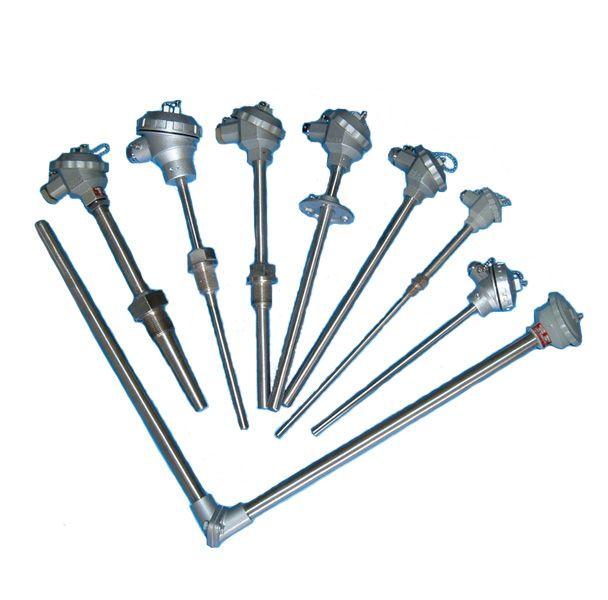

铠装铂电阻WZPK-576U 供应
产品概述
铠装铂电阻WZPK-576U是一种高性能温度传感器，采用薄膜铂电阻测温元件，比传统装配式铂电阻具有更小的直径和更强的弯曲性能，特别适用于空间受限或需要快速响应的应用场景。该产品外保护管采用优质不锈钢材料，内部填充高密度氧化绝缘物质，兼具优异的抗污染能力和机械强度，适合在复杂工业环境中长期稳定工作。其测量范围覆盖-200℃至+500℃，可精确监测液体、气体及固体表面的温度变化。1321
产品特点
WZPK-576U具备快速热响应特性，动态误差小，可满足对温度变化敏感的工艺需求。其结构设计灵活，长度可根据实际应用定制，且直径最小可达3mm，适合微型化安装要求。采用进口薄膜电阻元件，输出信号稳定可靠，可直接与各类显示仪表、记录仪或控制系统连接。产品具有抗震、耐腐蚀特性，在石油化工、电力能源等恶劣工况下仍能保持测量准确性。无固定装置的可动卡套设计便于现场安装调整，简化了维护流程。3915
Technical Specifications
The WZPK-576U armored platinum resistance thermometer features a compact stainless steel sheath with diameter options from 3mm to 6mm, providing excellent flexibility for installation in confined spaces. Its mineral-insulated construction ensures reliable performance under vibration and mechanical stress conditions. The sensor delivers precise temperature measurement across a wide range (-200°C to +500°C) with minimal thermal lag, making it suitable for process control applications requiring fast response. The unit s copper lead wires allow direct connection to secondary instruments without signal converters. 1328
Application Scenarios
This temperature sensor is widely implemented in industrial automation systems for monitoring pipelines, reactors, and heat exchangers. Its robust design performs effectively in chemical plants, power generation facilities, and HVAC systems where environmental contaminants exist. The product s bendable structure enables installation in complex equipment layouts, while the optional M16×1.5 threaded connection facilitates secure mounting. Typical applications include liquid level detection, thermal protection systems, and energy management solutions where space constraints prohibit conventional sensor installation. 12221
Output Characteristics
WZPK-576U generates linear resistance output corresponding to measured temperature, compatible with most standard data acquisition systems. The sensor maintains stable signal transmission over extended cable runs, with maximum measurement current limited to 5mA to prevent self-heating effects. Its interchangeable connector options include waterproof and splash-proof configurations for different environmental requirements. The temperature-resistance relationship follows established curves, ensuring compatibility with existing control infrastructure without additional configuration. 121618
铠装铂电阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，铠装铂电阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述
铠装铂电阻是一种温度传感器，它比装配式铂电阻直径小，易弯曲，抗震性好，适宜安装在装配式铂电阻无法安装的场合。本公司生产的WZPK系列铠装铂电阻采用引进铂电阻测温元件，因此，具有精确、灵敏、热响应时间快、质量稳定、使用寿命长等特点。
特点
★ 热响应时间短，减小动态误差
★ 直径小，长度不受限制
★ 测量精确度高
★ 进口薄膜电阻元件，性能可靠稳定
工作原理
铠装铂电阻是利用物质在温度变化时，其电阻值也随着发生变化的特征来测量温度的，当阻值变
化时，工作仪表便显示出阻值所对应的温度值。
|
