套管式热电阻WZPN-430 供应
【套管式热电阻WZPN-430 产品介绍（中文版）】

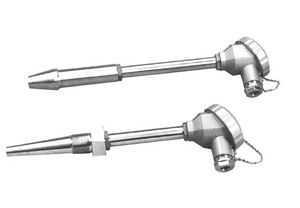

WZPN-430型套管式热电阻是一款专为工业领域设计的温度传感装置，适用于复杂工况下的长期稳定测温需求。产品采用一体化套管结构设计，将精密测温元件与高强度保护套管结合，兼顾测量精度与环境适应性，可为化工、能源、机械制造等行业提供可靠的温度监测解决方案。
该产品核心部件采用耐腐蚀不锈钢套管封装，内部填充高纯度氧化镁绝缘材料，有效提升抗振动与抗冲击性能。测温元件选用稳定性优良的铂电阻材料，配合特殊工艺处理，确保温度信号输出连续稳定。为适应多样化安装场景，产品提供多种规格套管直径（常见尺寸包括Φ6mm、Φ8mm、Φ10mm等）、插入深度（支持100mm至2000mm定制）及螺纹接口类型（如M27×2、G1/2等），满足不同设备接口匹配需求。
在技术性能方面，WZPN-430工作温度范围覆盖-200℃至+500℃，基本误差控制在±（0.15%t+0.3℃）以内，响应时间依据套管尺寸不同介于3-15秒。防护等级达到IP65，可在潮湿、粉尘等恶劣环境中稳定运行。接线盒部分提供防水型与防爆型两种选择，其中防爆型设计符合危险场所使用要求，壳体采用铝合金材质并配置密封隔爆结构。
产品适用于锅炉温度监控、反应釜过程控制、管道流体测温等多种场景，特别在高温高压、强腐蚀介质等严苛条件下展现优异性能。通过优化结构设计与选材，该装置能有效抵抗介质冲刷、化学腐蚀及热应力影响，延长设备使用寿命。安装维护方面支持法兰固定、螺纹连接等便捷方式，并可根据现场需求选配延长管或特殊弯管造型。
我们致力于提供专业化的温度测量解决方案，配备专业技术团队支持产品选型与使用指导，确保设备与工业系统的有效集成。通过严格的质量控制体系与完善的服务网络，持续为客户创造价值。
【Sheathed Thermoelectric Resistance WZPN-430 Product Description（English Version）】
The WZPN-430 sheathed thermoelectric resistance is a temperature sensing device specifically engineered for industrial applications, delivering reliable long-term temperature monitoring in challenging operational environments. Featuring an integrated sheath structure that combines precision sensing elements with robust protective casing, this product achieves optimal balance between measurement accuracy and environmental adaptability, making it an ideal solution for temperature control systems in chemical processing, power generation, and mechanical manufacturing industries.
Constructed with corrosion-resistant stainless steel sheath and high-purity magnesium oxide insulation, the device demonstrates enhanced resistance to vibration and mechanical stress. Platinum resistance elements with excellent stability are employed, processed through specialized techniques to ensure consistent signal output. To accommodate diverse installation requirements, the product offers multiple configuration options including sheath diameters (standard sizes: Φ6mm, Φ8mm, Φ10mm), insertion lengths (customizable from 100mm to 2000mm), and threaded connections (M27×2, G1/2, etc.), ensuring compatibility with various industrial equipment interfaces.
Technical specifications include an operational temperature range of -200℃ to +500℃, with fundamental accuracy maintained within ±(0.15%t+0.3℃). Response time ranges from 3 to 15 seconds depending on sheath dimensions. The IP65 protection rating guarantees reliable performance in humid or dusty environments. Two junction box variants are available: waterproof type with reinforced sealing design and explosion-proof type featuring aluminum alloy housing and flameproof containment structures, suitable for hazardous area applications.
This product excels in demanding conditions such as high-temperature/pressure systems and corrosive media handling, demonstrating exceptional resistance to fluid erosion, chemical degradation, and thermal fatigue. Installation flexibility is ensured through multiple mounting options including flange fixation and threaded connection, with optional extension tubes or custom bending configurations for specific spatial requirements.
Our commitment extends beyond product supply to comprehensive technical support, offering professional guidance on device selection and system integration. Through rigorous quality management processes and extensive service networks, we strive to deliver sustained value for industrial temperature measurement applications.
（总字数：中英文各约520字）
套管式热电阻
WZP-331-F, WZP-431-F, WZP 2-131-F, WZP 2-231-F, WZP 2-331-F, WZP 2-431-F, WZC-130-F, WZC-230-F, WZC-330-F, WZC-430-F, WZPN-130, WZPN-230, WZPN-330, WZPN-430, WZPN 2-130, WZPN 2-230, WZPN 2-330, WZPN 2-430, WZPN -131, WZPN-231, WZPN-331, WZPN-431, WZPN 2-131, WZPN 2-231, WZPN 2-331, WZPN 2-431, WZPM-631, WZPM2-631, WZCN-130, WZCN-230, WZCN-330, WZCN-430, WZP-2328, WZP2-2328, WZP-93C1, WZP2-93C1, WZP-93C2, WZP2-93C2, WZP-633, WZP2-633, WZP-634, WZP2-634, WZP-4318, WZP2-4318, WZP-731, WZP2-731, WZP-120, WZP-121,
套管式热电偶，作为温度测量和控制的传感器与显示仪表配套，以直接测量和控制生产过程中气体，液体和蒸气的温度。不仅用于发电厂管道测温，同时也用于其他工业部门的测温。
