电接点双金属温度计WZPK-206U 价格

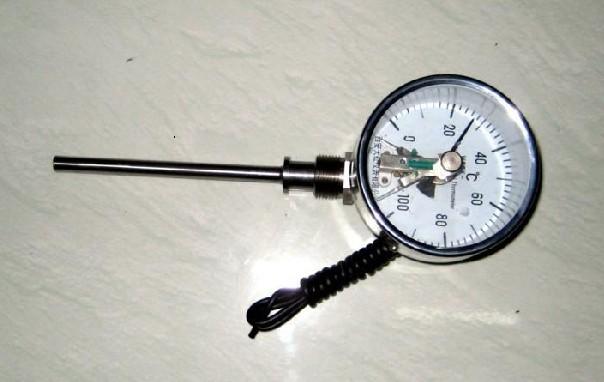

电接点双金属温度计 WZPK-206U
电接点双金属温度计 WZPK-206U 是一种广泛应用于工业领域的温度测量设备。它采用双金属片作为感温元件，通过不同膨胀系数的金属片在温度变化时产生弯曲位移，从而带动电接点动作，实现温度的测量与控制。
WZPK-206U 具有多项优势。其测量范围宽，能够满足多种工业场景下不同温度段的测量需求，无论是低温环境还是较高温度区域，都能提供准确可靠的温度数据。精度方面表现出色，确保温度测量值与实际温度的偏差极小，为工业生产过程中的温度监控与调节提供了有力保障。此外，该温度计的结构设计坚固耐用，能够在恶劣的工业环境中长期稳定运行，抗干扰能力强，不受电磁场等外界因素的干扰，保证测量信号的稳定传输。
在安装与使用上，WZPK-206U 也十分便捷。它配备了多种安装方式，可根据实际设备的结构特点灵活选择，无论是螺纹连接还是法兰安装，都能轻松实现与被测设备的紧密配合。其操作界面简洁直观，用户无需复杂的培训即可快速掌握其使用方法，进行温度设定、测量值读取等操作。
电接点双金属温度计 WZPK-206U 以其卓越的性能、可靠的品质以及便捷的使用体验，赢得了众多工业用户的信赖与好评，是工业温度测量领域不可或缺的优质选择。
Electrical Contact Bimetal Thermometer WZPK-206U
The Electrical Contact Bimetal Thermometer WZPK-206U is a widely used temperature measuring device in the industrial field. It employs a bimetallic strip as the temperature sensing element. The different expansion coefficients of the metals in the strip cause it to bend and displace when the temperature changes. This movement actuates the electrical contact, enabling the measurement and control of temperature.
The WZPK-206U has many advantages. It has a wide measuring range, which can meet the temperature measurement requirements of various industrial scenarios. Whether in low-temperature environments or higher temperature areas, it can provide accurate and reliable temperature data. In terms of accuracy, it performs exceptionally well, ensuring that the measured temperature values have minimal deviation from the actual temperature. This provides strong support for temperature monitoring and regulation in industrial production processes.
Moreover, the thermometer has a robust structural design. It can operate stably in harsh industrial environments for a long time. It has strong resistance to interference and is not affected by external factors such as electromagnetic fields, ensuring the stable transmission of measurement signals.
In terms of installation and use, the WZPK-206U is also very convenient. It is equipped with multiple installation methods. Depending on the structural characteristics of the actual equipment, it can be easily installed using thread connection or flange mounting. Its operating interface is simple and intuitive. Users can quickly master its usage without complicated training. They can easily perform operations such as temperature setting and reading measurement values.
The Electrical Contact Bimetal Thermometer WZPK-206U, with its excellent performance, reliable quality, and convenient user experience, has won the trust and praise of many industrial users. It is an indispensable high-quality choice in the field of industrial temperature measurement.
电接点双金属温度计
WZPK-426U，WZPK-166U，WZPK-525U，WZPK-165U，WZPK-425U，WZPK-424U，WZPK-326U，WZPK-323U，WZPK-226U，WZPK-224U，WZPK-223U，WZPK-233U，WZPK-405U，WZPK-135U，WZPK-136U，WZP-104U，WZPK-333U，WZPK-103U，WZPK-336U，WZPK-263U，WZPK-335U，WZPK-363U，WZPK-465U，WZPK-464U，WZPK-266U，WZPK-565U，WZPK-276U，WZPK-375U，WZPK-476U，WZPK2-475SA，WZPK-474S，WZPK-133U，WZPK-473S，WZPK2-376SA，WZPK-506U，WZPK-504U，WZPK-505U，WZPK-374S，WZPK-375S，WZPK2-375SA，WZPK-376S，WZPK2-276SA，WZPK-276S，WZPK2-275SA，WZPK-503S，WZPK2-406SA，WZPK2-405SA，WZPK-406S，WZPK-4055，WZPK-404S，WZPK-304U，WZPK-206U，WZPK-205U，WZPK-203U，WZPK2-305SA，WZPK-306S，WZPK-305S，WZPK-303S，WZPK2-205SA，WZPK-26S，WZPK-205S，WZPK-204S，WZPK-203S，WZPK-106SA，WZP-430B，WZPK-2312U，WZPK2-176SA，WZPK2-175SA，WZPK-176S，WZPK-163S，WZPK2-466SA，WZPK2-465SA，WZPK-465S，WZPK2-366SA，WZPK2-365SA，WZPK-366S，WZPK-364S，WZPK-363S，WZPK2-266SA，WZPK-266S，WZPK-265S，WZPK-264S，WZP-166S，WZPK-263S，WZPK-165S
电接点双金属温度计，WSSX-416，WSSX-406，WSSX-485，WSSX-415，WSSX-405，WSSX-484，WSSX-414，WSSX-404，WSSX-483，WSSX-413，WSSX-403，WSSX-482，WZPK-124U，WZPK-406U，WZPK-503U，WZP-3212U，WZP-270U，WRNN2-436，WRP-130，WRP2-130，WRP-131，WRP2-131，WRQ-130，WRQ2-130，WRQ-131，WRQ2-131，WRR-130，WRR2-130，WZPK-336SA，WZPK2-335SA，WZPK-236SA，WZPK2-235SA，WZPK-333S，WZPK-334S，WZPK-335S，WZPK-236S，WZPK-235S, WZPK-234S, WZPK-233S, WZPK2-136S, WZPK2-135SA, WZPK-136S, WZPK-135S, WZPK-134S, WRNR-01, WRER2-14, WRNR2-14, WRER-14, WRER2-12, WRNR2-12, WRER-12, WRNR-12, WZP2-6312A, WZP-6312A, WZP2-631, WRN-624, WRNR2-01, SBWR-4170/440D
应用
电接点双金属温度计应用于生产现场对温度需自动控制和报警。直接测量各种生产过程中-80～500℃范围内体、蒸汽
和气体介质温度。
电接点双金属温度计的特点：
• 现场显示温度，直观方便；
• 具有自动切断电源和报警功能；
• 安全可靠，使用寿命长；
• 多种结构形式，可满足不同要求。
工作原理
电接点双金属温度计是利用温度变化时带动触点变化，当其与上下限触点或断开的同时，使电路中的继电器动作，从而自动控制及报警。
主要技术参数
• 产品执行标准：JB/T8803-1998 GB3836-83
• 标度盘公称直径：100
• 精度等级：（1.0），1.5
• 热响应时间：≤40S
• 防护等级：IP55
• 正常工作大气条件：温度-25～+55℃，相对湿度≤85%
• 设定点误差：设定点误差应不超过基本误差限的1.5倍。
• 切换差：切换差应不超过基本误差限的1.5倍。
• 切换重复性：切换重复性极限范围不大于基本误差限值的1/2。
|
