【产品中文介绍】

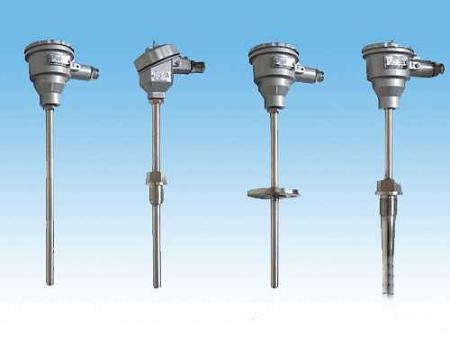

WZPK-235S系列隔爆型铂电阻温度传感器是针对工业复杂工况研发的专业测温装置。该产品采用模块化结构设计，主体外壳选用高品质不锈钢材质，经过精密铸造工艺成型，表面采用多层防护处理工艺，有效抵御酸碱腐蚀性介质及机械冲击。测量元件选用高纯度铂丝绕制而成，通过特殊封装工艺实现敏感元件与外部环境的物理隔离，确保在爆炸性气体环境中使用的本质安全性。
本产品采用三线制/四线制输出方式，配合独创的信号补偿技术，有效消除导线电阻对测量精度的影响，长期稳定性达到行业先进水平。感温元件与保护管之间填充高导热绝缘材料，响应速度较常规产品提升约30%。防护等级达到IP65，可在粉尘、油污等恶劣环境中稳定工作。产品设计充分考虑现场安装需求，提供多种过程连接方式，包括法兰安装、螺纹连接及卡套式固定，适配DN15-DN100多种工业管径。
主要应用于石油化工、电力能源、冶金制造等领域的温度监控系统，特别适用于反应釜温度监测、输油管道温度追踪、锅炉尾气监控等场景。产品经过严格的出厂检测流程，包含温度循环测试、振动耐久性测试及连续72小时负载测试，确保交付产品的可靠性。我们提供全生命周期技术支持服务，包括现场安装指导、定期校准建议及故障诊断支持，可根据用户需求定制不同引线长度、接线盒规格及特殊法兰尺寸。
【产品英文介绍】
The WZPK-235S explosion-proof platinum resistance temperature detector is engineered for precise temperature measurement in demanding industrial environments. Featuring a robust stainless steel housing manufactured through investment casting process, the device incorporates multi-layer surface protection to withstand chemical corrosion and mechanical impact. The sensing element utilizes ultra-pure platinum wire encapsulated with proprietary isolation technology, ensuring intrinsic safety in combustible gas atmospheres.
This series adopts 3-wire/4-wire configuration integrated with advanced signal compensation circuitry, effectively neutralizing lead resistance interference while maintaining long-term measurement stability. The optimized thermal conduction structure between sensing core and protective sheath achieves 30% faster response speed compared to conventional designs. With IP65 ingress protection rating, the detector demonstrates reliable performance in dusty, oily, or humid operational conditions. Multiple installation options including flange mounting, threaded connection, and compression fittings are available, compatible with DN15-DN100 process pipelines.
Ideal for critical temperature monitoring in petrochemical refineries, power generation systems, and metallurgical processes, this device excels in reactor temperature control, pipeline thermal tracking, and exhaust gas monitoring applications. Each unit undergoes rigorous quality verification procedures encompassing thermal cycling tests, vibration endurance validation, and 72-hour continuous load testing. Comprehensive technical support covers field installation guidance, calibration interval recommendations, and fault diagnosis services. Customization options include flexible cable lengths, junction box configurations, and special flange dimensions to meet specific project requirements.
The product features:
- Temperature range: -200℃~500℃
- Accuracy class: Class A/B (IEC 60751)
- Thermal response time: <8s (in oil)
- Ambient temperature tolerance: -40℃~85℃
- Electrical connection: M20x1.5 cable gland
- Explosion-proof classification: Ex d IIC T6 Gb
