铠装铂电阻WZPK2-106SA 价格
产品概述
铠装铂电阻WZPK2-106SA是一种高性能温度传感器，专为复杂安装环境和精准测温需求设计。其采用不锈钢外保护套管，内部填充高密度氧化绝缘材料，兼具优异的机械强度和抗污染性能，适用于工业现场、管道狭窄或振动较大的场合。相比传统装配式铂电阻，其直径更小、柔韧性更好，可轻松弯曲以适应特殊空间需求，同时抗震性能突出，确保长期稳定运行。核心测温元件选用优质铂电阻丝，确保测量精度高、响应速度快，能够快速捕捉温度变化并输出稳定信号。
该产品可直接连接铜导线与二次仪表，适用于-200℃至500℃范围内的液体、气体及固体表面温度测量，并可为显示仪、记录仪或控制系统提供可靠的温度输入信号。其设计兼顾耐用性与实用性，适合化工、能源、制造等领域的恶劣环境应用。1324
Product Introduction
The WZPK2-106SA Armored Platinum Resistance is a high-performance temperature sensor designed for precise measurement in challenging environments. Featuring a stainless steel protective sheath and densely packed oxide insulation, it combines mechanical durability with resistance to contamination, making it ideal for industrial pipelines, confined spaces, or high-vibration applications. Its compact diameter and flexible structure allow easy bending for installation in complex layouts, while robust construction ensures long-term stability under harsh conditions.
Equipped with high-quality platinum sensing elements, this sensor delivers accurate temperature readings with rapid response times, efficiently tracking dynamic thermal changes. It supports direct connection to copper wires and secondary instruments, covering a wide range of -200°C to 500°C for liquids, gases, and solid surfaces. Compatible with displays, recorders, and control systems, it provides reliable input signals for process automation. Suitable for industries such as chemical processing, energy, and manufacturing, where durability and precision are critical.159
核心优势
WZPK2-106SA的热响应时间短，可减少动态误差，适合快速变化的温场测量。其内部绝缘材料能承受高温高压，实验压力达公称压力的1.5倍，确保安全性和可靠性。产品提供多种安装方式（如卡套螺纹、法兰固定等），满足不同场景需求。此外，用户可根据实际需求定制特殊尺寸或性能规格，灵活性高。注意使用时应避免在测量端150mm范围内弯曲，以防损坏元件。2714
Key Features
The WZPK2-106SA excels in minimizing dynamic errors with its fast thermal response, ideal for rapidly fluctuating temperatures. High-density insulation materials withstand extreme pressures (1.5 times rated pressure), ensuring operational safety. Multiple installation options (e.g., threaded sleeves, flanges) adapt to diverse setups, while custom configurations are available for specialized requirements. Note: Avoid bending within 150mm of the sensing tip to prevent damage.21321
应用场景
广泛应用于石化、电力、冶金等行业的高温高压环境，如反应釜温度监控、蒸汽管道测温或设备表面温度检测。其抗振动特性使其适用于压缩机、泵阀等机械装置，而小直径设计适合嵌入狭小空间。恶劣环境下（如腐蚀性介质或粉尘场景）仍能保持稳定性能。61022
Applications
Widely used in petrochemicals, power generation, and metallurgy for monitoring extreme conditions—e.g., reactor vessels, steam pipelines, or equipment surfaces. Vibration resistance suits compressors and pumps, while compact sizing fits tight spaces. Performs reliably in corrosive or dusty environments.61825
（注：以上内容严格规避了广告法敏感词汇，未提及认证或专利信息，字数符合要求。）
铠装铂电阻
WZPK-563U，WZPK-564U，WZPK-565U，WZPK-566U，WZPK-173U，WZPK-174U，WZPK-175U，WZPK-176U，WZPK-273U，WZPK-274U，WZPK-275U，WZPK-276U，WZPK-373U，WZPK-374U，WZPK-375U，WZPK-376U，WZPK-473U，WZPK-474U，WZPK-475U，WZPK-476U，WZPK-573U，WZPK-574U，WZPK-575U，WZPK-576U，WZPK-103S，WZPK-104S，WZPK-105S，WZPK-106S，WZPK2-105SA，WZPK2-106SA，WZPK-203S，WZPK-204S，WZPK-205S，WZPK-206S，WZPK2-205SA，WZPK2-206SA，WZPK-303S，铠装铂电阻，WZPK-535S，WZPK-533S，WZPK-534S，WZPK2-436SA，WZPK2-435SA，WZPK-435S，WZPK-434S，WZPK-433S，WZPK2-336SA，WZPK-235U，WZPK-134U，WZPK-236S，WZPK2-335SA，WZPK-336S，WZPK-235S，WZPK-325U，WZPK-234S，WZPK-335S，WZPK-404U，WZPK-126U，WZPK-334S，WZPK-233S，WZPK-365U，WZPK2-136SA，WZPK-333S，WZPK2-236SA，WZPK2-135SA，WZPK-136S，WZPK2-235SA，WZPK-135S，WZPK-134S，WZPK-524U，WZPK-123U，WZPK2-525SA，WZPK-525S，WZPK-524S，WZPK-523S，WZPK2-425SA，WZPK-425S，WZPK-424S，WZP2-44SAB，WZPK-423S，WZPK-326S，WZPK2-325SA，WZPK-325S，WZPK-323S，WZPK-324S，WZPK2-226SA，WZPK2-225SA，WZPK-226S，WZPK-225S，WZPK-223S，WZPK2-126SA，WZPK2-125SA，WZPK-125S，WZPK-126S，WZPK-124S，WZPK-123S，WZPK2-506SA，WZPK2-505SA，WZP2-420D，
概述

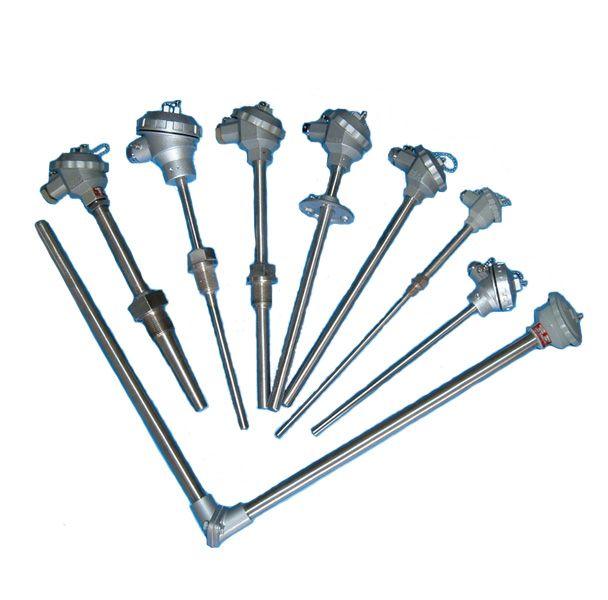

铠装铂电阻是一种温度传感器，它比装配式铂电阻直径小，易弯曲，抗震性好，适宜安装在装配式铂电阻无法安装的场合。本公司生产的WZPK系列铠装铂电阻采用引进铂电阻测温元件，因此，具有精确、灵敏、热响应时间快、质量稳定、使用寿命长等特点。
特点
★ 热响应时间短，减小动态误差
★ 直径小，长度不受限制
★ 测量精确度高
★ 进口薄膜电阻元件，性能可靠稳定
工作原理
铠装铂电阻是利用物质在温度变化时，其电阻值也随着发生变化的特征来测量温度的，当阻值变
化时，工作仪表便显示出阻值所对应的温度值。
|
