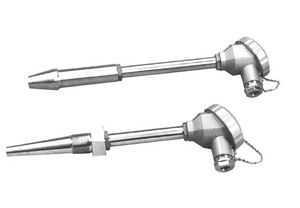

套管式热电阻WZPN 2-230厂家
中文介绍
WZPN 2-230套管式热电阻是一种专为工业环境设计的温度测量元件，适用于对保护管磨损较为严重的低温介质温度测量场合。该产品采用耐磨材料制成，能够在不影响测温精度的前提下，有效延长使用寿命。其测温范围为-200℃至450℃，能够满足多种工业场景的温度监测需求。
WZPN 2-230的保护管直径为Ф16±1.5mm，提供多种规格的插入长度和外接螺纹尺寸，方便用户根据实际需求进行选择。其耐磨头硬度达到HRC60-65，具有良好的耐磨、耐高温氧化、耐硫化、耐液态铁粉和石灰石腐蚀等性能。此外，该产品还具备抗冲刷、耐振动等特点，能够在恶劣的工业环境中稳定工作。
在技术参数方面，WZPN 2-230的电气出口为M20×1.5或NPT1/2，防护等级达到IP65。其绝缘电阻大于100MΩ（常温下），试验电压为500VDC。连接尺寸为M27×2或NPT3/4，精度等级为I级。
English Introduction
The WZPN 2-230 sheathed thermoresistor is a temperature measuring element specifically designed for industrial environments. It is suitable for measuring the temperature of low-temperature media in situations where the protective tube is subject to severe wear. Made of wear-resistant materials, this product can effectively extend its service life without affecting the accuracy of temperature measurement. With a temperature measurement range of -200℃ to 450℃, it can meet the temperature monitoring needs of various industrial scenarios.
The protective tube diameter of the WZPN 2-230 is Ф16±1.5mm. It offers a variety of insertion lengths and external thread sizes to meet different user requirements. The wear-resistant head has a hardness of HRC60-65 and features excellent wear resistance, high-temperature oxidation resistance, sulfur resistance, and resistance to corrosion from molten iron powder and limestone. In addition, the product is also resistant to impact and vibration, ensuring stable operation in harsh industrial environments.
In terms of technical parameters, the WZPN 2-230 has an electrical outlet of M20×1.5 or NPT1/2 and a protection rating of IP65. Its insulation resistance is greater than 100MΩ (at room temperature), and the test voltage is 500VDC. The connection size is M27×2 or NPT3/4, and the accuracy grade is Class I.
套管式热电阻
WZP-331-F, WZP-431-F, WZP 2-131-F, WZP 2-231-F, WZP 2-331-F, WZP 2-431-F, WZC-130-F, WZC-230-F, WZC-330-F, WZC-430-F, WZPN-130, WZPN-230, WZPN-330, WZPN-430, WZPN 2-130, WZPN 2-230, WZPN 2-330, WZPN 2-430, WZPN -131, WZPN-231, WZPN-331, WZPN-431, WZPN 2-131, WZPN 2-231, WZPN 2-331, WZPN 2-431, WZPM-631, WZPM2-631, WZCN-130, WZCN-230, WZCN-330, WZCN-430, WZP-2328, WZP2-2328, WZP-93C1, WZP2-93C1, WZP-93C2, WZP2-93C2, WZP-633, WZP2-633, WZP-634, WZP2-634, WZP-4318, WZP2-4318, WZP-731, WZP2-731, WZP-120, WZP-121,
套管式热电偶，作为温度测量和控制的传感器与显示仪表配套，以直接测量和控制生产过程中气体，液体和蒸气的温度。不仅用于发电厂管道测温，同时也用于其他工业部门的测温。
化工专用隔爆型热电偶WRCK-502，WRCK-522，WRCK-532，WRCK-592，WRCK-582，WRCK2-521，WRCK2-531，WRCK2-522，WRCK2-532，WREK-1313，WREK-1314，WREK-1315，WREK-1316，WREK-1323，WREK-1324，WREK-1325，WREK-1326，WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRFK-281A, WRFK-181A., WRCK-281A, WRCK-181A, WREK-281A, WREK-181A, WRNK-281A, WRNK-181A, WZPM-202U, WZPM-201U, WRNM-202A, WZPM-101U, WZPM-102U, 化工专用热电偶WREM-102A, WRNM-201A, WRNM-203A WRNN-436, WRNN2-436, WRN-420B, WRN-430B, WRN2-420B, WRN2-430B, WRE-420B, WRE-430B, WRE2-420B, WRE2-430B, WRN-420C, WRN-430C, WRN2-420C, WRN2-430C, WRE-420C, WRE-430C, WRE2-420C, WRE2-430C, WRN-420D, WRN-430D, WRN2-420D, WRN2-430D, WRE-420D, WRE-430D, WRE2-420D, 可动式热电偶WRE2-430D, WZP-420B, WZP-421B, WZP-430B, WZP-431B, WZP2-420B, WZP2-421B, WZP2-430B, WZP2-431B, WZC-420B, WZC-430B, WZP-420C, WZP-421C, WZP-430C, WZP-431C, WZP2-420C, WZP2-421C, WZP2-430C, WZP2-431C, WZC-420C, WZC-430C, WZP-420D, WZP-421D, WZP-430D, WZP-431D, WZP2-420D, WZP2-421D, WZP2-430D, WZP2-431D, WZC-420D, WZC-430D.WRR-433Q, WRNR-93UC, WRER-93UC, WRNR2-93UC, WRER2-93UC, WRNT-001, WRNT2-001, 耐腐、耐磨热电偶WRET-001, WRET2-001, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRER-13, WRNR2-13. WRER2-13. WRNR-14, WRER-14, WRNR2-14, WRER2-14, WRNR-15, WRER-15, WRNR2-15, WRER2-15, WRN-15A, WRER-15A, WRNR2-15A, WRER2-15A, WRNT-31, WRET-31, WRNT2-31, WRET2-31, 套管式热电偶WRNK-841n﹡D, WRNK-842n﹡D, WREK-841n﹡D. WREK-842n﹡D, WRNK-841n﹡I, WRNK-842n﹡I, WREK-841n﹡I. WREK-842n﹡I, WREK-842n﹡I, WRN-240A, WRN2-240A, WRE-240A, WRE2-240A, WRN-640A,WRN2-640A,WRE-640A,WRE2-640A, WRN-440A,WRN2-440A, WRE-440A,WRE2-440A, WRNK-240, WRNK2-240, WREK-240, WREK2-240, WRNK-440, WRNK2-440, WREK-440, WREK2-440, WRN-74O,WRN2-74O, WRN-74O, WRN2-74O, WRNR-15, WRNR2-15, WRNR-15A, WRNR2-15A, WRER-15, WRER2-15, WRER-15A, WRER215A, WRN-624, WRN-625, WRE-624, WRE-625, WRNR-12, WRER-12, WRNR2-12, WRER2-12, WRNR-13, WRNR2-13, WRER-13, WRER2-13,WRNR-14, WRNR2-14, WRER14, WRER2-14, WRN-631, WRN2-631, WRNR-01, WRER-01, WRNR2-01, WRER2-01, WRN-130, WRN2-130, WRN-230, WRN2-230, WRN-330, WRN2-330, WRN2-430, WRN-430, WRE-130, WRE2-130, 热电偶 WRE-230, WRE2-230, WRE-330, WRE2-330, WRE-430, WRE2-430, WREK-1313, WREK-1314, WREK-1315, WREK-1316, WREK-1323, WREK-1324, WREK-1325, WREK-1326, WRNK-1313, WRNK-1314, WRNK-1315, WRNK-1316, WRNK-1323, WRNK-1324, WRNK-1325, WRNK-1326, WRN-001, WRE-001. WRN-002, WRE-002, WRN-235T, WRN2-235T, WRE-235T, WRE2-235T, WRN-130-F, WRN-230-F, WRN-330-F, WRN-430-F, WRN2-130-F, WRN2-330-F, WRN2-430-F, WRE-130-F, WRE-230-F, WRE-330-F, WRE-430-F,WRE2-130-F,WRE2-230-F,WRE2-330-F.WRE2-430-F.WRN-130(*),WRN-230(*),WN-330(*),WN-430(*).,WRNN2-130(*),WNN2-230(*),WRNN2-330(*),WNN2-430(*),WREN-130, WREN-230, WREN-330, WREN-430, WREN2-130, WREN2-230, WREN2-330, WREN2-430, WRNN-530(*),WRNN2-530(*),WREN-530,WREN2-530,WRNN-631(*),WRNN2-631(*),WREN-631, WREN2-631, WRN-12B, WRE-12B, WRN2-12B, 装配式热电偶WRE2-12B, WRN-13B, WRE-13B, WRN2-13B, WRE2-13B, WRN-14B, WRE-14B, WRN2-14B, WRE2-14B, WRN-15B, WRE-15B, WRN2-15B, WRE2-15B, WRN-15AB, WRE-15AB, WRN2-15AB, WRE2-15AB, WRN-4318, WRE-4318,,WN2-4318, WRE2-4318, WRN-43C, WRE-43C, WRN2-43C, WRE2-43C, WRR-120, WRR-121, WRR2-120, WRR2-121, WRP-120, WRP-121, WRP2-120,,
|
