DT8809照度计产品介绍（中英双语）

【中文版】

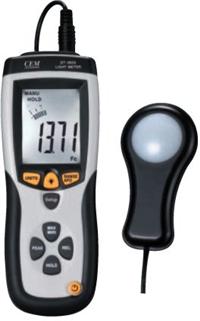

DT8809照度计是一款专业级高精度光强度测量仪器，采用创新传感技术实现宽量程检测能力。其测量范围覆盖0.1至400,000 Lux，可精准应对从昏暗室内到强光环境的多样化场景需求。设备搭载自动量程切换功能，通过智能算法自动匹配最佳测量模式，有效提升操作效率。

核心功能方面，DT8809配备高灵敏光电传感器与多层滤光系统，有效降低红外线与紫外线干扰，确保可见光谱区间的测量精度。独特的数据保持功能允许用户锁定瞬时数值，便于复杂环境下的数据记录与分析。针对特殊场景设计的相对值模式，可实现光照差值对比测量，满足科研实验等专业需求。

人体工学设计是该产品的突出特点，轻量化机身（仅重200g）配合防滑纹路外壳，确保单手握持的舒适性与稳定性。3.5英寸LCD显示屏采用双色背光设计，强光环境下显示清晰可见，夜间使用时可切换柔和背光模式。内置存储模块支持200组数据暂存，配合USB-C接口实现便捷的数据导出功能。

应用场景覆盖工业检测、环境监测、农业温室、建筑照明设计等多个领域。在影视拍摄现场可辅助布光调试，于植物工厂能精准监控补光强度，实验室环境中适用于光学实验数据采集。设备配备便携防护箱，防震结构有效保护精密元件，适应-10℃至50℃的工作温度范围。

技术参数：

• 测量精度：±3%rdg±10dgt
• 分辨率：0.01 Lux（低量程段）
• 采样速率：2次/秒
• 供电方式：2节AAA电池（续航约200小时）
• 尺寸：158x68x32mm

配件清单包含便携软包、USB数据线、备用电池及中英文操作手册，提供三年核心部件质保服务。

【English Version】
The DT8809 Lux Meter is a professional-grade light intensity measuring instrument featuring wide-range detection capability from 0.1 to 400,000 Lux. Equipped with auto-ranging technology, this device intelligently selects optimal measurement modes for various environments ranging from dim interiors to intense lighting conditions.

The core innovation lies in its high-sensitivity photoelectric sensor coupled with a multi-layer optical filter system, which effectively minimizes infrared/ultraviolet interference while maintaining measurement accuracy within the visible spectrum. The data hold function allows instant value locking for reliable recording in dynamic environments, while the relative value mode enables differential lighting analysis for specialized applications.

Ergonomically designed with a 200g lightweight body and anti-slip casing, the meter ensures comfortable single-hand operation. The 3.5-inch dual-backlit LCD display provides clear visibility under various lighting conditions, with a night-friendly low-light mode. Built-in memory stores up to 200 data sets, supported by USB-C connectivity for efficient data transfer.

This device serves multiple industries including industrial inspection, environmental monitoring, agricultural greenhouse management, and architectural lighting design. It proves invaluable for film lighting adjustment, plant growth light optimization, and laboratory research applications. The shock-resistant carrying case ensures component protection across operating temperatures from -10℃ to 50℃.

Technical Specifications:

• Accuracy: ±3%rdg±10dgt
• Resolution: 0.01 Lux (low range)
• Sampling Rate: 2 times/sec
• Power: 2xAAA batteries (200h continuous use)
• Dimensions: 158x68x32mm

The package includes a carrying pouch, USB cable, spare batteries, and bilingual manual, backed by a 3-year core component warranty.
